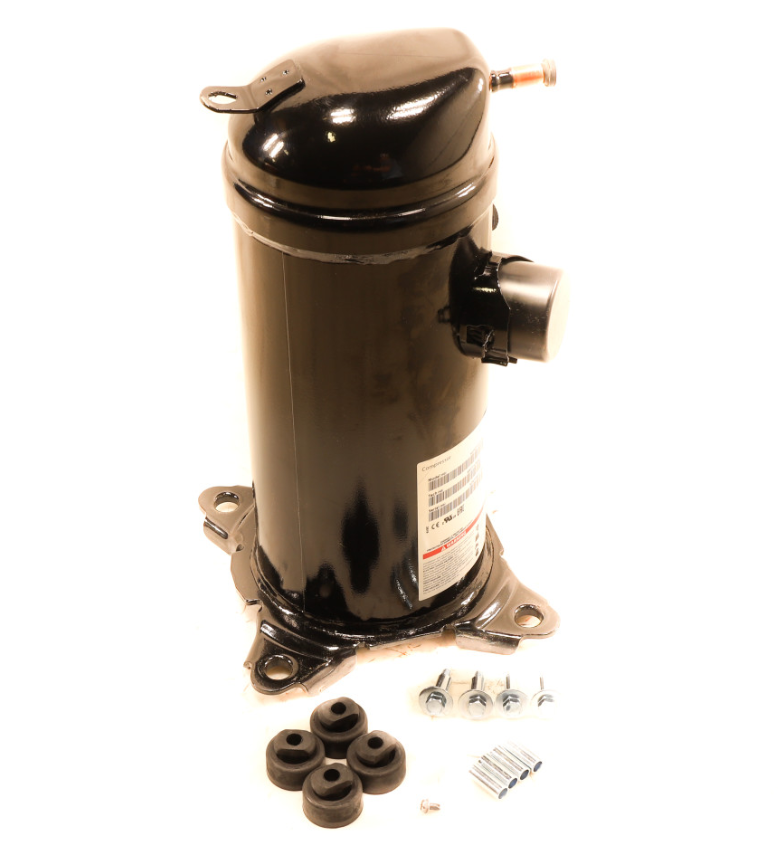

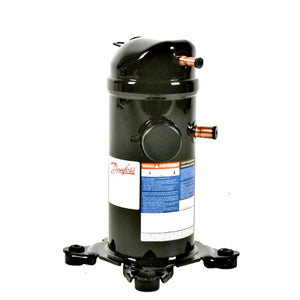

Danfoss 120U3277 Compressor 208-230V 3-Phase 75,545 BTU

Product Description

The Danfoss 120U3277 is a robust scroll compressor designed for both residential and light commercial air conditioning applications. This model is compatible with R407C and R22 refrigerants and operates efficiently in environments ranging from 45 to 130 degrees Fahrenheit.

• Optimized for high-temperature applications
• Features internal motor protection and spade terminals
• Includes 7/8 inch ODF suction and 1/2 inch ODF discharge connections

Product Highlights

With a capacity of 75,545 BTU, this compressor is engineered to deliver high performance and reliability. Its 208-230V three-phase operation ensures efficient energy usage, making it an ideal choice for systems requiring consistent and effective air conditioning.

Technical Specifications

• Brand: Danfoss
• MPN: 120U3277
• Voltage: 208-230V
• Phase: 3
• Capacity: 75,545 BTU
• Suction Connection: 7/8 inch ODF
• Discharge Connection: 1/2 inch ODF
• Refrigerant Compatibility: R22, R407C
