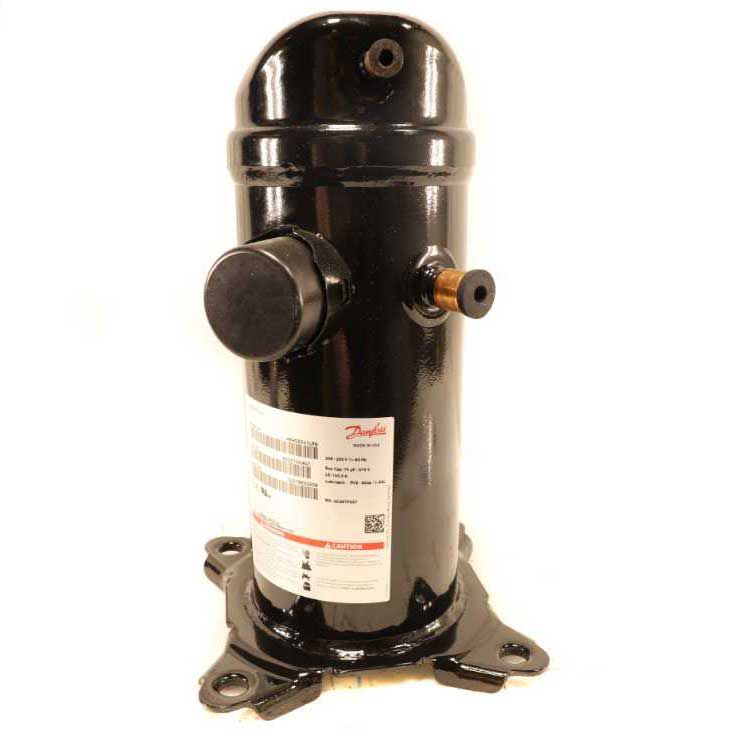

Danfoss 120U2470 Compressor R410A High Temperature Air Conditioning 50000 BTU

Product Description

The Danfoss 120U2470 compressor is designed for high temperature air conditioning applications using R410A refrigerant. It is suitable for residential use and operates with PVE oil. This compressor delivers 50000 BTU/hr at 60Hz under ARI conditions. The design is optimized for temperatures between 45 and 100 degrees Fahrenheit. It features internal motor protection, spade terminals, a 7/8-inch ODF suction connection, and a 1/2-inch ODF discharge connection.

• Optimized for 45-100°F
• Delivers 50000 BTU/hr
• Internal motor protection

Product Highlights

Danfoss 120U2470 is a high-performing compressor for residential air conditioning systems, ensuring efficient cooling even at high temperatures. This compressor is built for durability and is easy to install with its standard connection sizes.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U2470
• Model: HRH050U1LP6

Technical Specifications

• Application: Air Conditioning, High Temperature
• Refrigerant Rating: R410A
• BTU Rating: 50000 BTU
• Connection Size: 7/8 x 1/2
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Weight: 75 lbs
