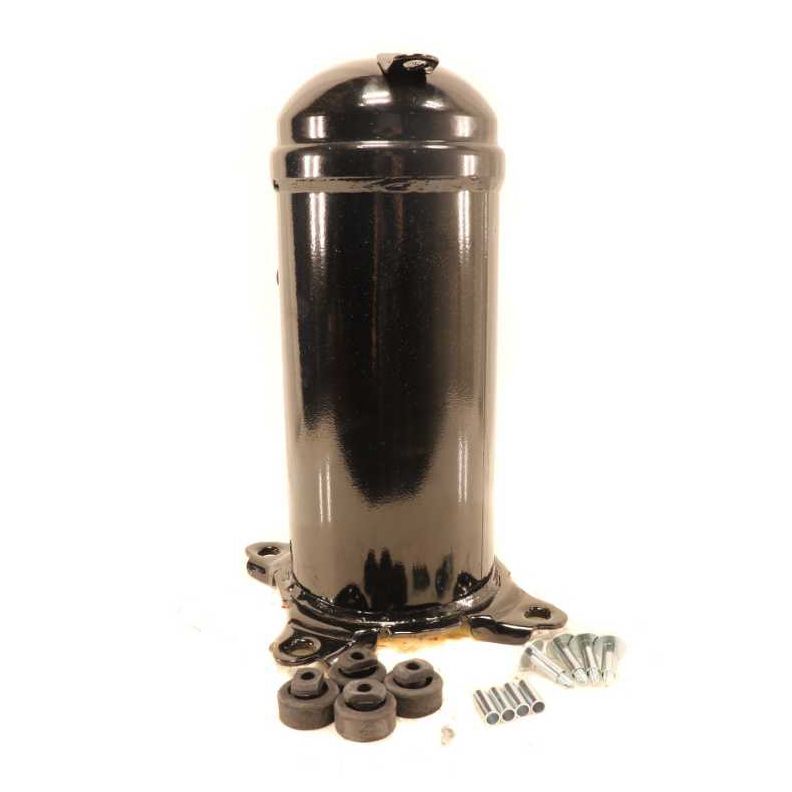

Danfoss 120U2454 Compressor 78,000 BTU R407C R22 Refrigerant

Product Description

The Danfoss 120U2454 model HLP078T4LC6 compressor is designed for high temperature air conditioning and light commercial use. It is compatible with R407C and R22 refrigerants and uses PVE oil.

• Handles up to 78,000 BTU/hr at 60 Hz
• Works with 380-415 Volt, three-phase motor
• Optimized for temperature ranges from 45 to 130 degrees Fahrenheit

Product Highlights

This high temperature, light commercial scroll compressor is perfect for air conditioning systems using R407C and R22 refrigerants. It supports various applications with optimized performance.

Product Information

Standard Information

• Brand: Danfoss
• Model: HLP078T4LC6

Technical Specifications

• MPN: 120U2454
• Application: Air Conditioning, High Temperature, Light Commercial
• Refrigerant Rating: R22, R407C
• BTU Rating: 78000 BTU
• Connection Size: 7/8 x 3/4
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 3 Ph
• Motor Voltage: 460V
• Motor Hertz: 60 Hz
