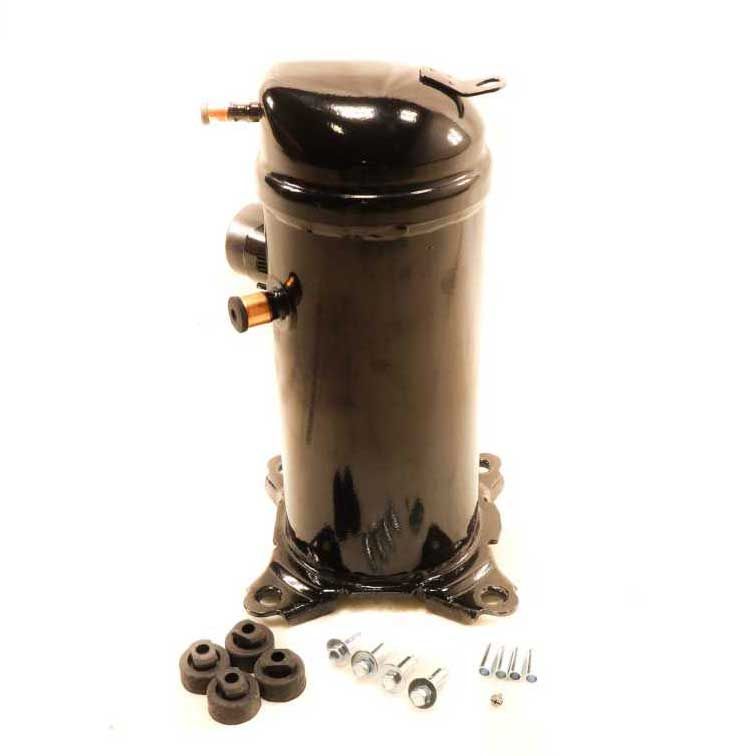

Danfoss 120U1726 Compressor R407C R22 60000 BTU 460V 3-Phase

Product Description

The Danfoss 120U1726 compressor supports R407C and R22 refrigerants and is perfect for high temperature air conditioning applications. Featuring a 60,000 BTU/hr capacity at 60Hz, this residential scroll compressor is optimized for temperatures ranging from 45 to 130 degrees Fahrenheit. It includes internal motor protection, spade terminals, a 7/8 ODF (sweat) suction connection, and a 1/2 ODF discharge (liquid) connection.

• High temperature air conditioning
• 60,000 BTU/hr capacity
• Internal motor protection

Product Highlights

This compressor is designed for residential applications with high-temperature performance, ensuring optimal operation from 45 to 130 degrees Fahrenheit. It offers durable internal motor protection and standard connection sizes for easy installation.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U1726
• Model: HRP060T4LP6
• Application: Air Conditioning, High Temperature
• Refrigerant Rating: R22, R407C

Technical Specifications

• BTU Rating: 60000 BTU
• Connection Size: 7/8 x 1/2
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 3 Ph
• Motor Voltage: 460V
• Motor Hertz: 60 Hz
• Weight: 89.00 lbs
