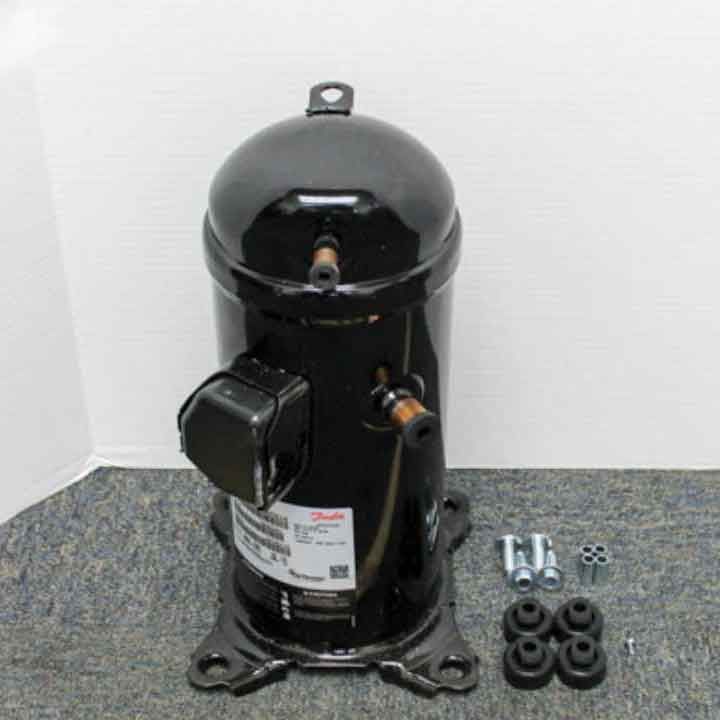

Danfoss 120U1401 Compressor Model HLJ083T4LC6 460V 3-Phase

Product Description

Danfoss 120U1401 is a compressor model HLJ083T4LC6, designed for high temperature and air conditioning applications. It operates with R410A refrigerant and PVE oil, meeting ARI conditions and optimized for a temperature range of forty-five to one hundred thirty degrees Fahrenheit. This compressor is available in three-phase configurations at either 380-415 volts (fifty Hertz) or 460 volts (sixty Hertz) with a cooling capacity of eighty-three thousand BTU per hour. The unit comes equipped with internal motor protection and features screw terminals for easy wiring. It is designed with a seven-eighths inch ODF suction connection and a one-half inch ODF discharge connection.

• High temperature operation
• Compatible with R410A refrigerant
• Capacity of 83,000 BTU per hour

Product Highlights

This compressor is suitable for light commercial applications in HVAC systems.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U1401

Technical Specifications

• Model: HLJ083T4LC6
• Application: Air Conditioning
• Refrigerant Rating: R410A
• BTU Rating: 83000 BTU
• Connection Size: 7/8 x 1/2
• Compressor Connection: ODF
• Motor Phase: 3 Ph
• Motor Voltage: 460V
• Motor Hertz: 60 Hz
• Motor RPM: 3500 RPM
• Weight: 84.00 lbs
