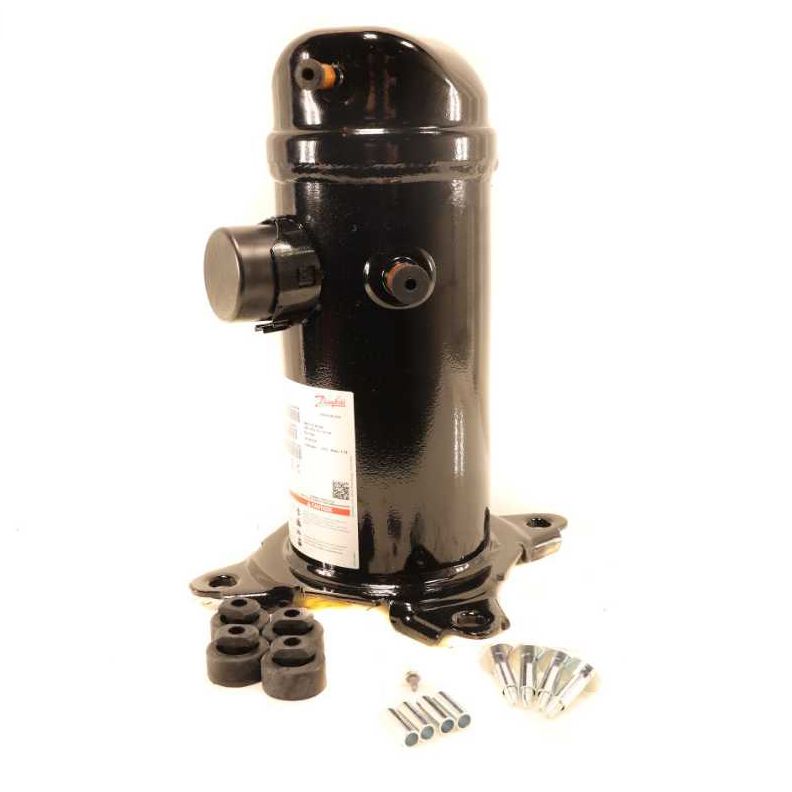

Danfoss 120U1196 Model HRH032U4LP6 Compressor

Product Description

The Danfoss 120U1196, also known as the Model HRH032U4LP6, is a high-temperature, air conditioning residential scroll compressor suitable for R410A refrigerant and PVE oil. This compressor has a capacity of 32,000 BTU per hour at 60 Hz, designed to operate efficiently in temperatures from 45 to 100 degrees Fahrenheit.

• 32,000 BTU/hr capacity
• Optimized for 45-100°F
• Suitable for R410A refrigerant

Product Highlights

This compressor is ideal for residential air conditioning applications. It uses R410A refrigerant and PVE oil, ensuring efficient and reliable performance.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 120U1196
• Model: HRH032U4LP6

Technical Specifications

• Application: Air Conditioning, High Temperature, Residential
• Refrigerant Rating: R410A
• BTU Rating: 32000 BTU
• Connection Size: 3/4 inches x 1/2 inch
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 3 Ph
• Motor Voltage: 460V
• Motor Hertz: 60 Hz
