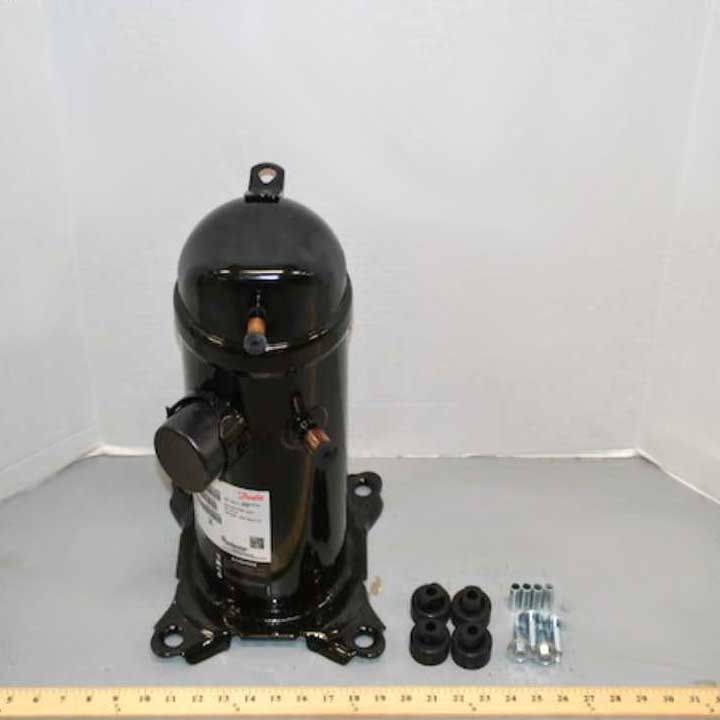

Danfoss 120U1146 Scroll Compressor for R410A High-Temperature Applications

Product Description

The Danfoss 120U1146 Scroll Compressor is designed for high-temperature air conditioning systems and supports R410A refrigerant. This compressor delivers a performance of 34,000 BTU per hour under standard Air Conditioning and Refrigeration Institute conditions, operating at 60 Hertz.

• Optimized for temperatures ranging from 45 to 100 degrees Fahrenheit.
• Features internal motor protection to enhance durability.
• Equipped with 3/4 inch ODF suction and 1/2 inch ODF discharge connections.

Product Highlights

This unit is developed to provide efficient cooling performance and is easy to integrate with standard systems, featuring spade terminals and ODF connections for quick setup.

Product Information

Standard Information

• Brand: Danfoss
• Model: HRH034U1LP6
• Application: Air Conditioning, High Temperature

Technical Specifications

• Refrigerant Type: R410A
• BTU Rating: 34,000 BTU
• Connection Size: 3/4 inch x 1/2 inch
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
