Danfoss 120H2315 scroll compressor dsh090a4aldm

Product Description

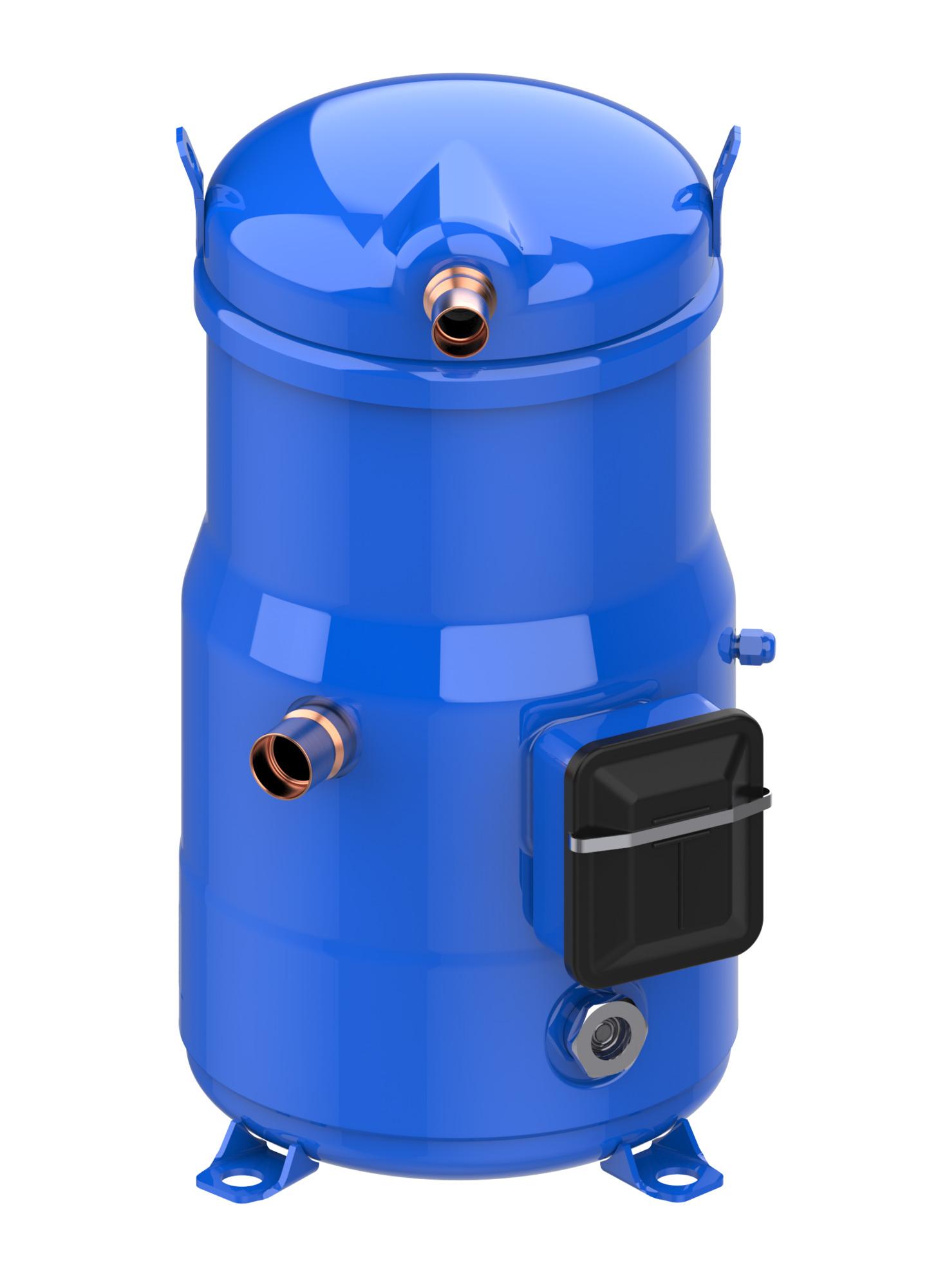

The DANFOSS 120H2315 scroll compressor DSH090A4ALDM is designed to compress and circulate refrigerant in HVAC systems. It is compatible with R410A, R452B, and R454B refrigerants and is suitable for air conditioning applications. The compressor features a fixed speed and brazed connections.

• Fixed speed scroll compressor
• Suitable for air conditioning segment usage
• Utilizes R410A, R452B, and R454B refrigerants

Product Highlights

The DANFOSS scroll compressor is designed for air conditioning applications using a variety of refrigerants.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 120H2315

Technical Specifications

• Approval: UL
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• Compressor power supply [V]: 380-415/3/50 460/3/60
• Connection type: Brazed
• Contains batteries: No
• Description: DSH090-4
• Diameter [mm]: 243 mm
• Discharge connection height [mm]: 451 mm
• Discharge connection pipe size [in]: 7/8 in
• Discharge connection size [in]: 7/8 in
• Drawing number: 8560176
• Economizer: No
• Family: DSH
• Fitting standard: ODF
• Frequency [Hz]: 50/60
• Gauge port HP: None
• Glass mounting: Threaded
• Glass torque [Nm]: 50 N-m
• Height from baseplate [mm]: 470 mm
• High Side TS Max: 150 °C
• High Side TS Min: -35 °C
• High Side Volume: 0.7 L
• High value of nominal voltage at 50Hz [V]: 415 V
• High value of nominal voltage at 60Hz [V]: 460 V
• High value of voltage range at 50Hz [V]: 457 V
• High value of voltage range at 60Hz [V]: 506 V
• IDV: Yes
• In scope of WEEE: No
• IP protection class: IP54 (with cable gland)
• Length [mm]: 230 mm
• Low Side TS Max: 55 °C
• Low Side TS Min: -35 °C
• Low Side Volume: 11.7 L
• Low value of nominal voltage at 50Hz [V]: 380 V
• Low value of nominal voltage at 60Hz [V]: 460 V
• Low value of voltage range at 50Hz [V]: 342 V
• Low value of voltage range at 60Hz [V]: 414 V
• LRA: 98 A
• Max pressure (PS) - high side: 48.7 bar
• Max pressure (PS) - low side: 33.3 bar
• Maximum Operating Current [MOC]: 19 A
• Model number: DSH090A4ALDM
• Motor protection: Internal overload protector
• Mounting torque [Nm]: 15 N-m
• Network power supply [V/Ph/Hz]: 380-415/3/50 460/3/60
• Number of starts per hour [Max]: 12
• Oil charge [L]: 3 L
• Oil equalization: 1-3/4"Rotolock
• Oil reference: 160SZ
• Oil type: POE
• Packing format: Single pack
• Packing quantity: 1
• Phase: 3
• Power connections: Screw 4.8mm
• Refrigerant charge [kg] [Max]: 8 kg
• Refrigerants: R410A, R452B, R454B
• RLA: 16 A
• Rotational speed at 50Hz [rpm]: 2900 rpm
• Rotational speed at 60Hz [rpm]: 3500 rpm
• Segment usage: Air conditioning
• Suction connection height [mm]: 235 mm
• Suction connection material: None
• Suction connection pipe size [in]: 1 1/8 in
• Suction connection size [in]: 1 1/8 in
• Torque earth [Nm]: 2 N-m
• Torque power [Nm]: 3 N-m
• Total height [mm]: 485 mm
• Viscosity [cP]: 32 cP
• Width [mm]: 230 mm
• Winding resistance for three-phase compressors with identical windings [Ohm]: 1.47 Ohm
