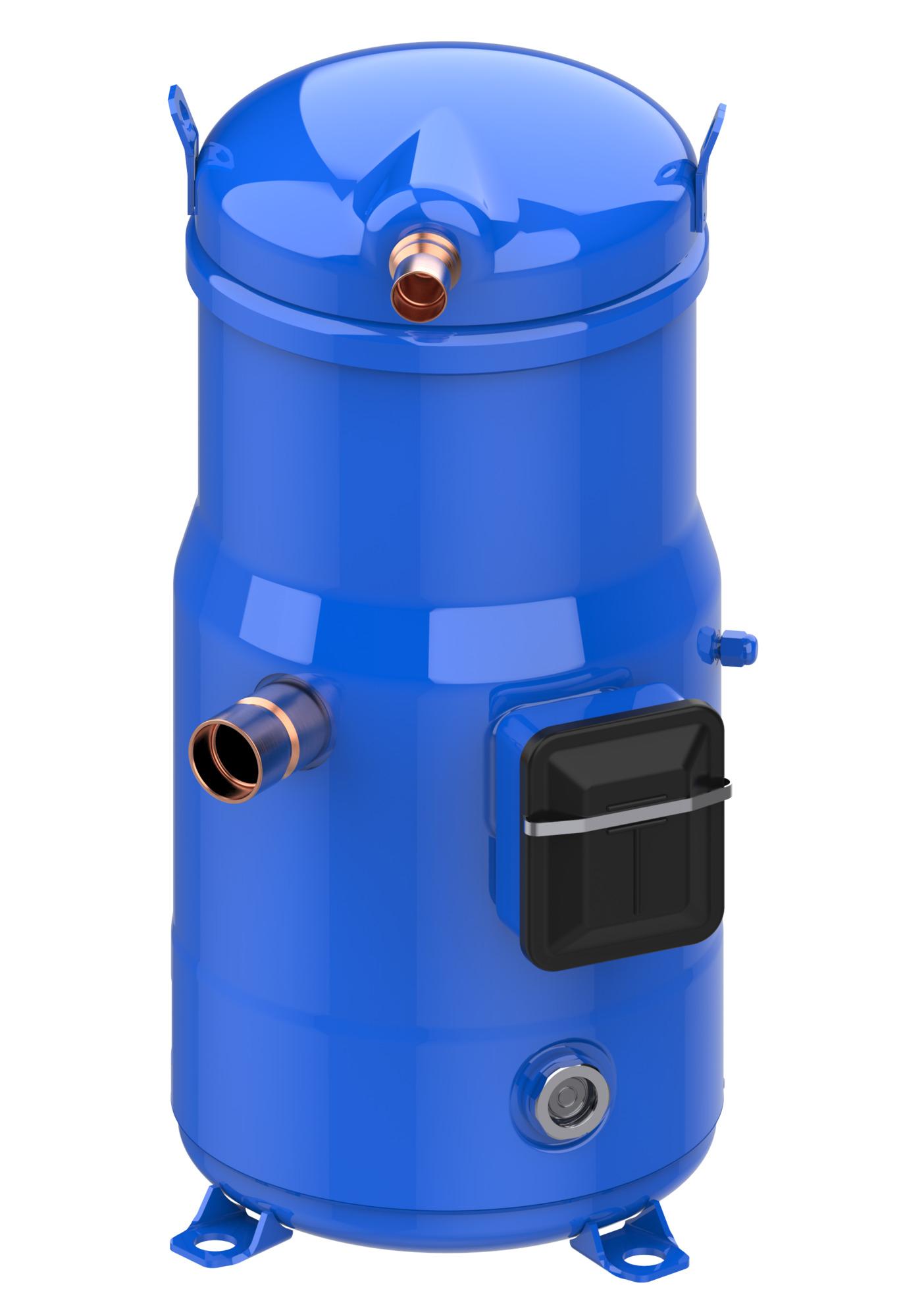

Danfoss 120H2308 Scroll Compressor, DSH120A3ALCM

Product Description

The DANFOSS 120H2308 scroll compressor DSH120A3ALCM is designed for air conditioning applications, utilizing refrigerants R452B, R410A, and R454B. This hermetic compressor features a brazed connection type and operates at a fixed speed. It is designed for a 208-230/3/60 power supply. The compressor is part of the DSH family and comes in a single pack format.

• Refrigerants: R452B; R410A; R454B
• Segment usage: Air conditioning
• Fixed speed

Product Highlights

Designed for air conditioning with a fixed speed and brazed connection, this compressor uses R452B, R410A, and R454B refrigerants.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 120H2308
• Country of Origin: USA

Technical Specifications

• Type: DSH120
• Product group: Hermetic compressors
• Product Name Description: Scroll compressor DSH
• Approval: UL
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• Input Voltage: 208-230/3/60
• Connection type: Brazed
• Contains batteries: No
• Description: DSH120-3
• Diameter [mm]: 243 mm
• Discharge connection height [mm]: 509 mm
• Discharge connection pipe size [in]: 7/8 in
• Discharge connection size [in]: 7/8 in
• Drawing number: 8560177
• Economizer: No
• Family: DSH
• Fitting standard: ODF
• Frequency [Hz]: 60
• Gauge port HP: None
• Gauge port LP: Schrader
• Glass mounting: Threaded
• Glass torque [Nm]: 50 N-m
• Height from baseplate [mm]: 527 mm
• High Side TS Max: 150 °C
• High Side TS Min: -35 °C
• High Side Volume: 0.7 L
• High value of nominal voltage at 60Hz [V]: 230 V
• High value of voltage range at 60Hz [V]: 253 V
• IDV: Yes
• In scope of WEEE: No
• IP protection class: IP54 (with cable gland)
• Length [mm]: 230 mm
• Liquid injection: No
• Low Side TS Max: 55 °C
• Low Side TS Min: -35 °C
• Low Side Volume: 13.6 L
• Low value of nominal voltage at 60Hz [V]: 208 V
• Low value of voltage range at 60Hz [V]: 187 V
• LRA: 267 A
• Max pressure (PS) - high side: 48.7 bar
• Max pressure (PS) - low side: 33.3 bar
• Maximum Operating Current [MOC]: 48 A
• Model number: DSH120A3ALCM
• Motor protection: Internal overload protector
• Mounting torque [Nm]: 15 N-m
• Network power supply [V/Ph/Hz]: 208-230/3/60
• Number of starts per hour [Max]: 12
• Oil charge [L]: 3.3 L
• Oil equalization: 1-3/4'' Rotolock
• Oil reference: 160SZ
• Oil type: POE
• Packing format: Single pack
• Packing quantity: 1
• Phase: 3
• Power connections: Screw 4.8mm
• Refrigerant charge [kg] [Max]: 10 kg
• Refrigerants: R410A, R452B, R454B
• RLA: 43.6 A
• Rotational speed at 60Hz [rpm]: 3500 rpm
• Segment usage: Air conditioning
• Suction connection height [mm]: 278 mm
• Suction connection material: -
• Suction connection pipe size [in]: 1 3/8 in
• Suction connection size [in]: 1 3/8 in
• Torque earth [Nm]: 2 N-m
• Torque power [Nm]: 3 N-m
• Total height [mm]: 542 mm
• Viscosity [cP]: 32 cP
• Width [mm]: 230 mm
• Winding resistance for three-phase compressors with identical windings [Ohm]: 0.27 Ohm
• Product line: Commercial Compressors
• Product name: Scroll compressor DSH
• Product Type: DSH120
• Swept volume [cm3]: 116.90 cm³
• U.S. EPA label: For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
• Material Description: DSH120-3AL-SINGLE
