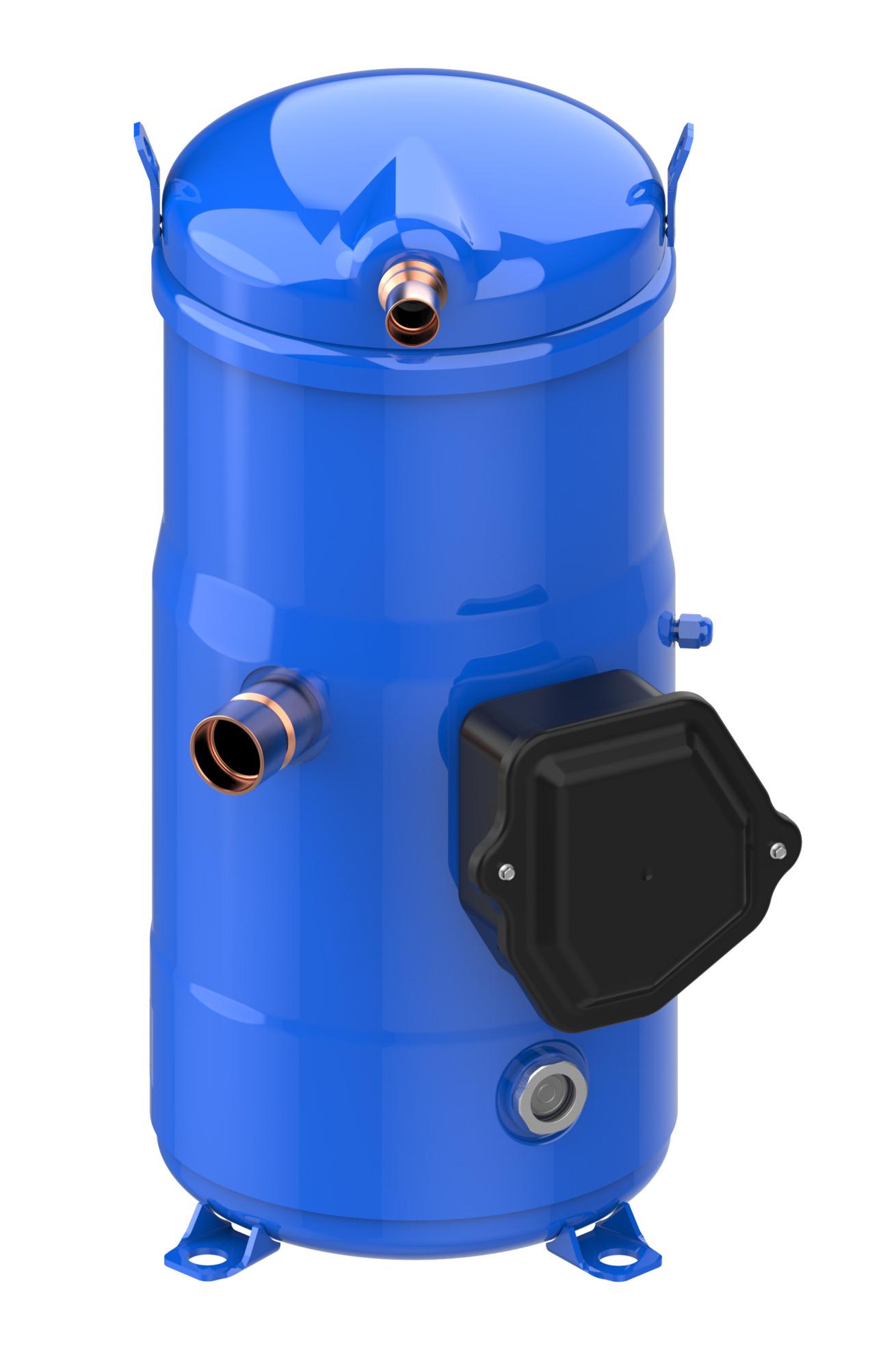

Danfoss 120H2300 Scroll Compressor, DSH184A4ANAM

Product Description

The Danfoss 120H2300 scroll compressor DSH184A4ANAM is designed for air conditioning applications and utilizes R410A, R452B, and R454B refrigerants. It features a fixed speed capacity control and operates on a 380-415/3/50 460/3/60 V power supply. The compressor is part of the DSH family and is suitable for commercial compressors.

• Designed for air conditioning applications.
• Utilizes R410A, R452B, and R454B refrigerants.
• Features a fixed speed capacity control.

Product Highlights

This scroll compressor is designed for air conditioning and operates on multiple refrigerants with a fixed speed.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 120H2300

Technical Specifications

• Approval: UL
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• Compressor power supply [V]: 380-415/3/50 460/3/60
• Connection type: Brazed
• CoolselectorFilter: Active models
• Diameter [mm]: 243 mm
• Discharge connection height [mm]: 525 mm
• Discharge connection pipe size [in]: 7/8 in
• Discharge connection size [in]: 7/8 in
• Drawing number: 8560235
• Economizer: No
• Family: DSH
• Fitting standard: ODF
• Frequency [Hz]: 50/60
• Gauge port HP: None
• Gauge port LP: Schrader
• Glass mounting: Threaded
• Glass torque [Nm]: 50 N-m
• High Side TS Max: 150.0 °C
• High Side TS Min: -35.0 °C
• High Side Volume: 0.7 L
• High value of nominal voltage at 50Hz [V]: 415 V
• High value of nominal voltage at 60Hz [V]: 460 V
• High value of voltage range at 50Hz [V]: 457 V
• High value of voltage range at 60Hz [V]: 506 V
• IDV: Yes
• IP protection class: IP54 (with cable gland)
• Liquid injection: No
• Low Side TS Max: 55.0 °C
• Low Side TS Min: -35.0 °C
• Low Side Volume: 13.9 L
• Low value of nominal voltage at 50Hz [V]: 380 V
• Low value of nominal voltage at 60Hz [V]: 460 V
• Low value of voltage range at 50Hz [V]: 342 V
• Low value of voltage range at 60Hz [V]: 414 V
• LRA: 197 A
• Max pressure (PS) - high side: 48.70 bar
• Max pressure (PS) - low side: 33.30 bar
• Maximum Operating Current [MOC]: 36 A
• Model number: DSH184A4ANAM
• Motor protection: Internal overload protector
• Mounting torque [Nm]: 15.00 N-m
• Network power supply [V/Ph/Hz]: 380-415/3/50 460/3/60
• Number of starts per hour [Max]: 12
• Oil charge [L]: 3.60 L
• Oil equalization: 1-3/4'' Rotolock
• Oil reference: 160SZ
• Oil type: POE
• Packing format: Single pack
• Packing quantity: 1
• Phase: 3
• Power connections: Screw 4.8mm
• Product group: Hermetic compressors
• Product line: Commercial Compressors
• Product name: Scroll compressor DSH
• Refrigerant charge [kg] [Max]: 10.00 kg
• Refrigerants: R410A, R452B, R454B
• RLA: 27.6 A
• Rotational speed at 50Hz [rpm]: 2900 rpm
• Rotational speed at 60Hz [rpm]: 3500 rpm
• Segment usage: Air conditioning
• Suction connection height [mm]: 300 mm
• Suction connection material: -
• Suction connection pipe size [in]: 1-3/8 in
• Suction connection size [in]: 1-3/8 in
• Swept volume [cm3]: 170.30 cm³
• Torque earth [Nm]: 2.00 N-m
• Torque power [Nm]: 3.00 N-m
• Total height [mm]: 555.0 mm
• Type: DSH184
• U.S. EPA label: For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
• Viscosity [cP]: 32.0 cP
• Winding resistance for three-phase compressors with identical windings [Ohm]: 0.83 Ohm
