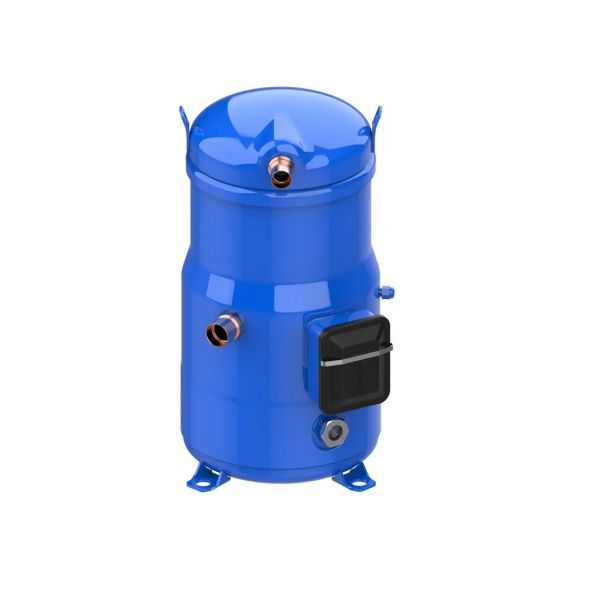

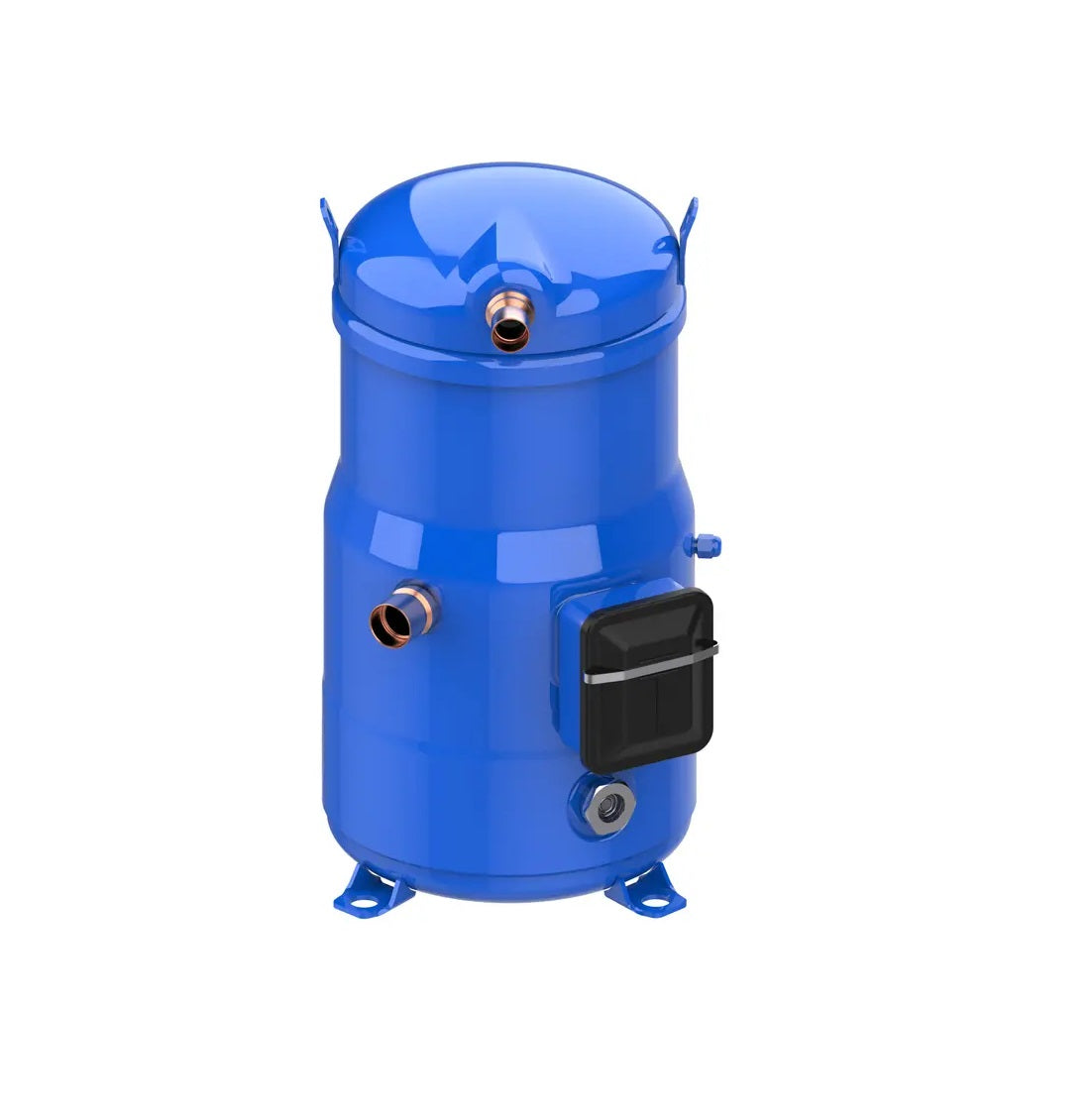

Danfoss 120H1866 Scroll Compressor DSH090A3ALC 208-230/3/60

Product Description

The Danfoss 120H1866 is part of the DSH series designed for air conditioning applications. This DSH090A3ALC model operates on a fixed speed and is compatible with refrigerants including R452B, R410A, and R454B. The unit requires a power supply of 208-230/3/60 volts and uses POE oil for optimal performance. Installation is simplified with brazed connections, and the compressor includes internal overload protection with an IP54 rating when utilizing a cable gland.

• Refrigerant Compatibility: R452B, R410A, R454B
• Power Supply: 208-230/3/60 V/Ph/Hz
• Connection Type: Brazed

Product Highlights

This compressor is suited for various air conditioning needs and ensures reliable operation.

Product Information

Standard Information

• Model Number: DSH090A3ALC
• Type: Hermetic compressor

Technical Specifications

• Refrigerants: R452B, R410A, R454B
• Capacity Control: Fixed speed
• Compressor Power Supply: 208-230 Volts
• Frequency: 60 Hz
• Phase: 3
• Oil Type: POE
• Oil Charge: 3 Liters
• Rotational Speed: 3500 rpm
• Max Pressure High Side: 48.7 bar
• Max Pressure Low Side: 33.3 bar
• Discharge Connection Size: 7/8 inches
• Suction Connection Size: 1 1/8 inches
• Height: 485 mm
