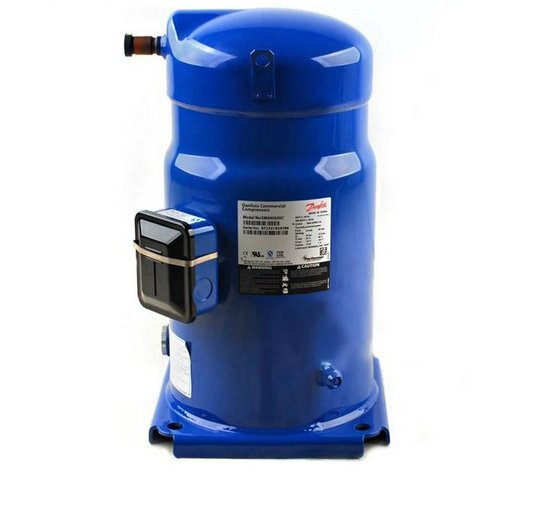

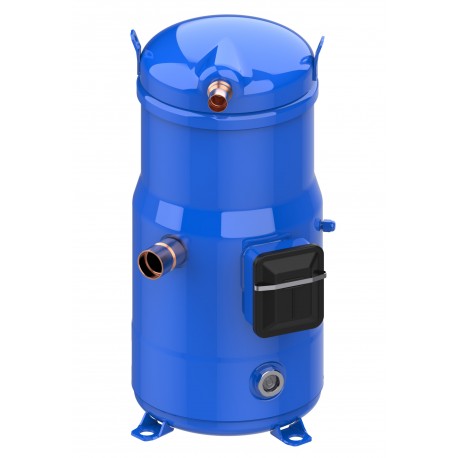

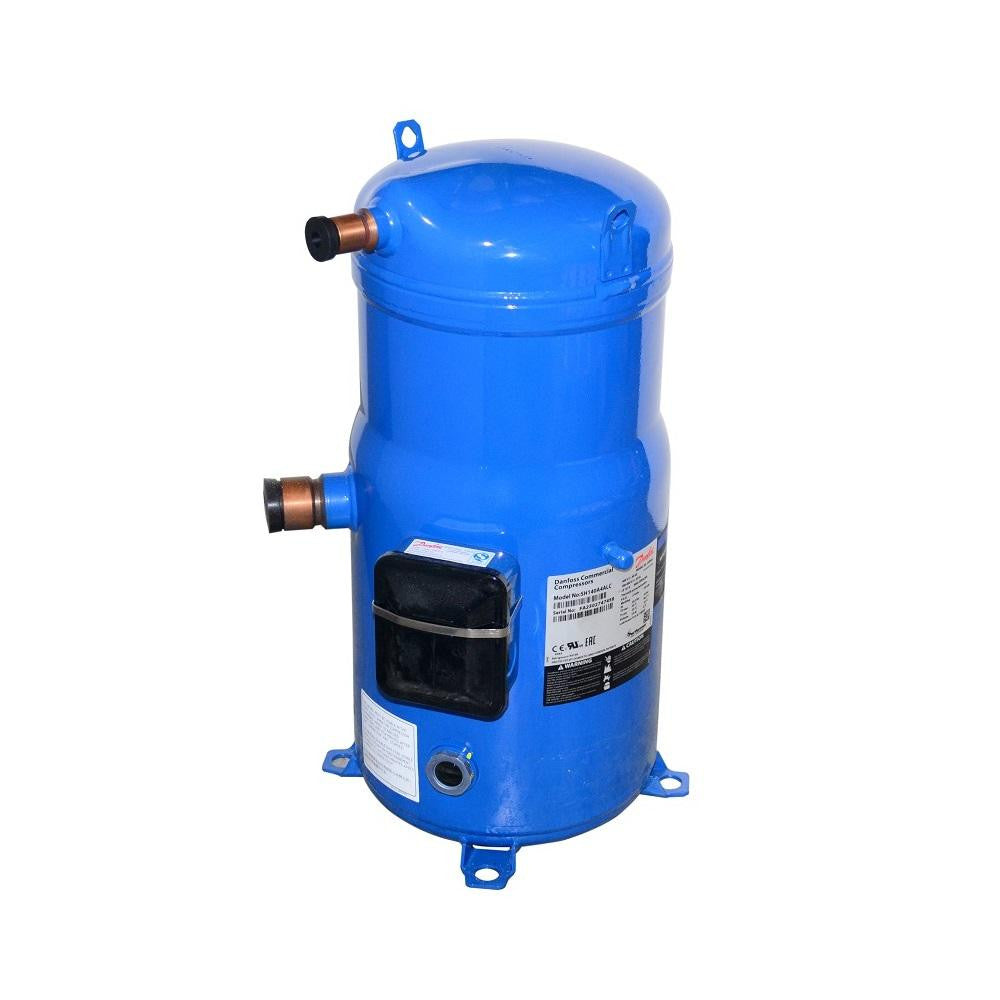

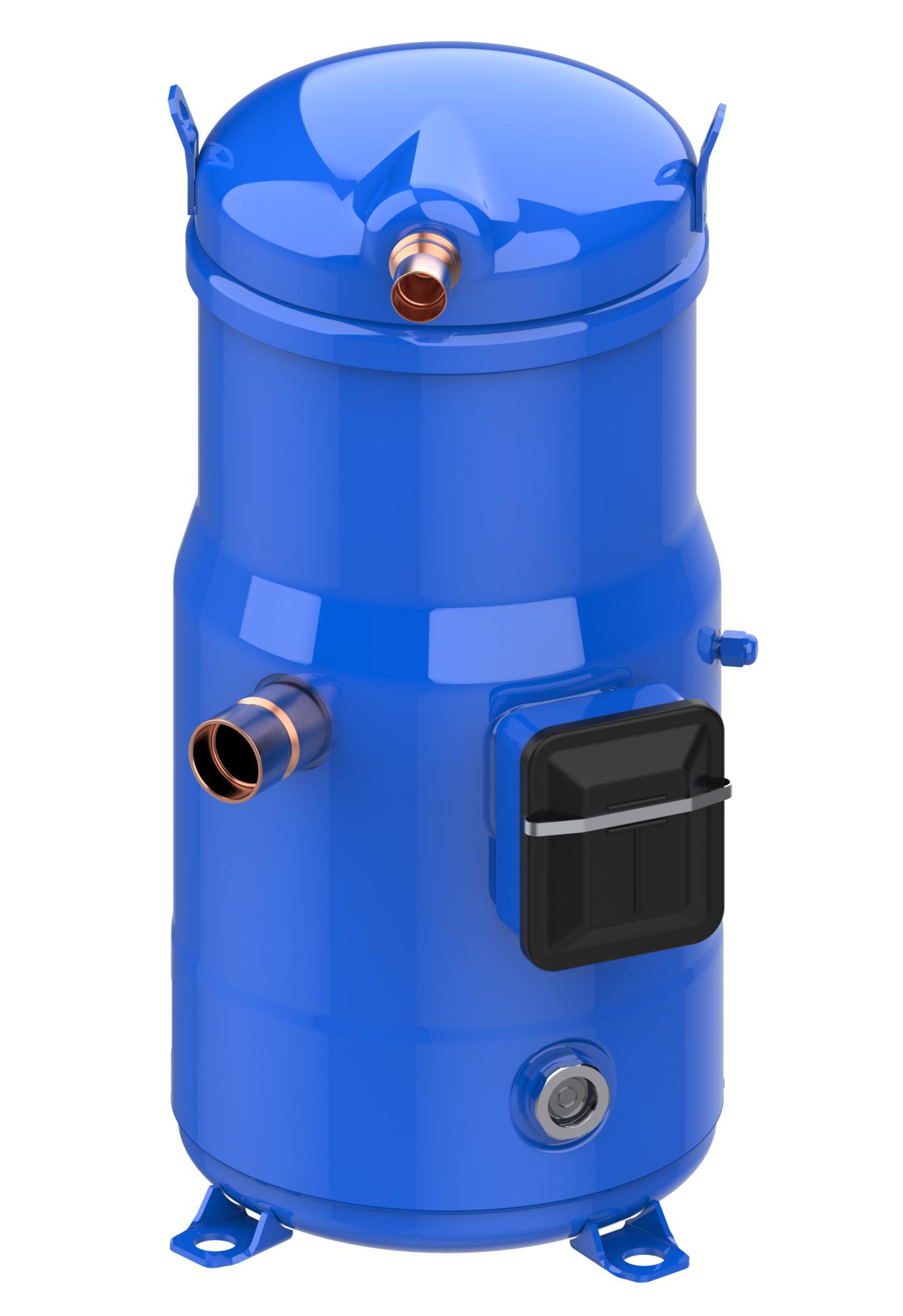

DANFOSS 120H1521 Scroll Compressor DSH105A4ALD

Product Description

The DANFOSS 120H1521 is a fixed-speed scroll compressor designed for air conditioning applications. It is part of the DSH series and uses a brazed connection type. This compressor is compatible with refrigerants R410A, R452B, and R454B. It includes internal overload protection for optimal motor security and can operate on network power supplies of 380-415/3/50 and 460/3/60 volts, phases, and hertz.

• Refrigerant compatibility: R410A, R452B, R454B
• Connection type: Brazed
• Motor protection: Internal overload protection

Product Highlights

This compressor is suitable for various air conditioning setups, ensuring consistent performance and reliability.

Product Information

Standard Information

• Model Number: DSH105A4ALD
• Type: DSH105

Technical Specifications

• Brand: DANFOSS
• Compressor Power Supply: 380-415/3/50 460/3/60
• Frequency: 50/60 Hz
• Phase: 3
• Connection Type: Brazed
• Suction Connection Size: 1 3/8 in
• Discharge Connection Size: 7/8 in
• Oil Type: POE
• Motor Protection: Internal overload protector
• IP Protection Class: IP54
• Maximum Operating Current: 22 A
• Gross Weight: 69.01 Kilogram
• Net Weight: 66.51 Kilogram
• Refrigerant Charge [Max]: 10 kg
• Approval: CE, UL, UKCA
• Number of Starts per Hour [Max]: 12
