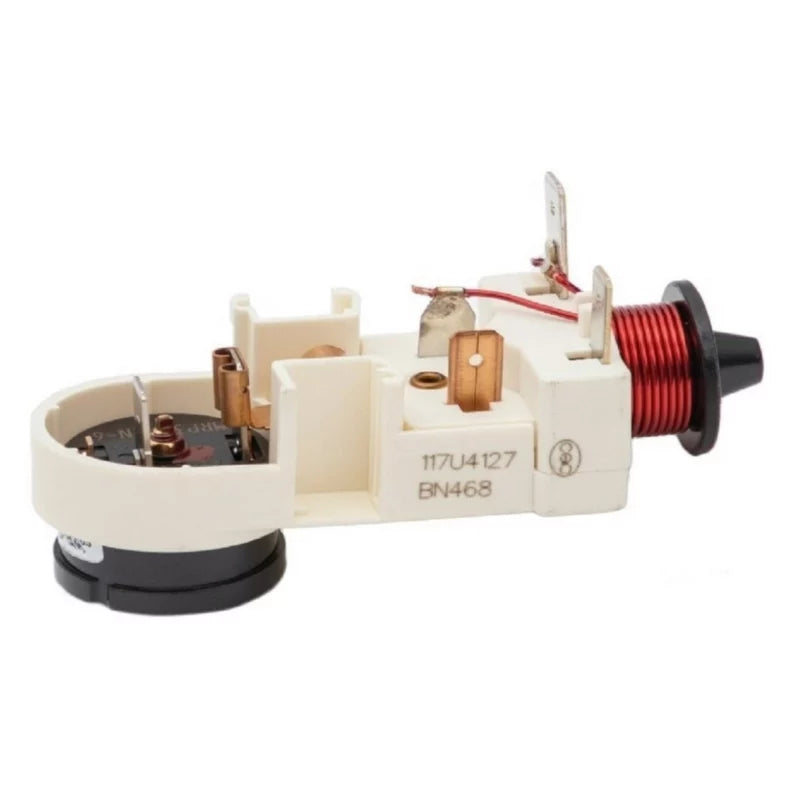

Danfoss 117u4127 Relay Overload Combo

Product Description

The DANFOSS 117u4127 is a relay and overload combination component designed for use in refrigeration and HVAC compressor circuits. This type of combo unit integrates a start relay with an overload protector into a single assembly, reducing wiring complexity and simplifying replacement during service calls. It is compact, measuring 1 inch in length, 1 inch in width, and 1 inch in height, and weighs under 0.12 pounds. HVAC and refrigeration technicians install this part as a direct replacement when a failed relay or overload is diagnosed on a hermetic compressor.

Relay and overload combo units like the 117u4127 are commonly used in residential and light commercial refrigeration equipment, including reach-in coolers, refrigerators, and small compressor-based cooling systems. The integrated design allows a single-component swap rather than replacing the relay and overload separately, which speeds up the repair process. This part is suited for applications where the OEM specifies a matched relay and overload assembly.

Key Features

• Integrated relay and overload in a single compact assembly
• Compact form factor: 1 inch x 1 inch x 1 inch
• Lightweight at approximately 0.11 pounds
• Designed for hermetic compressor applications in refrigeration and HVAC systems
• Prop 65 compliant labeling required for California installations

Compatibility

Designed as an OEM-style replacement relay and overload combo for hermetic compressor applications in refrigeration and HVAC equipment.

Installation Notes

This component is installed by licensed refrigeration or HVAC technicians. Disconnect all power to the equipment before removing or installing the relay and overload assembly. Ensure the compressor terminals are clean and free of corrosion before seating the new combo unit. Follow applicable local codes and manufacturer wiring diagrams when completing the repair.

Technical Specifications

• Length: 1 inch
• Width: 1 inch
• Height: 1 inch
• Weight: 0.1146 pounds
• Country of Origin: SVK

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 117u4127
