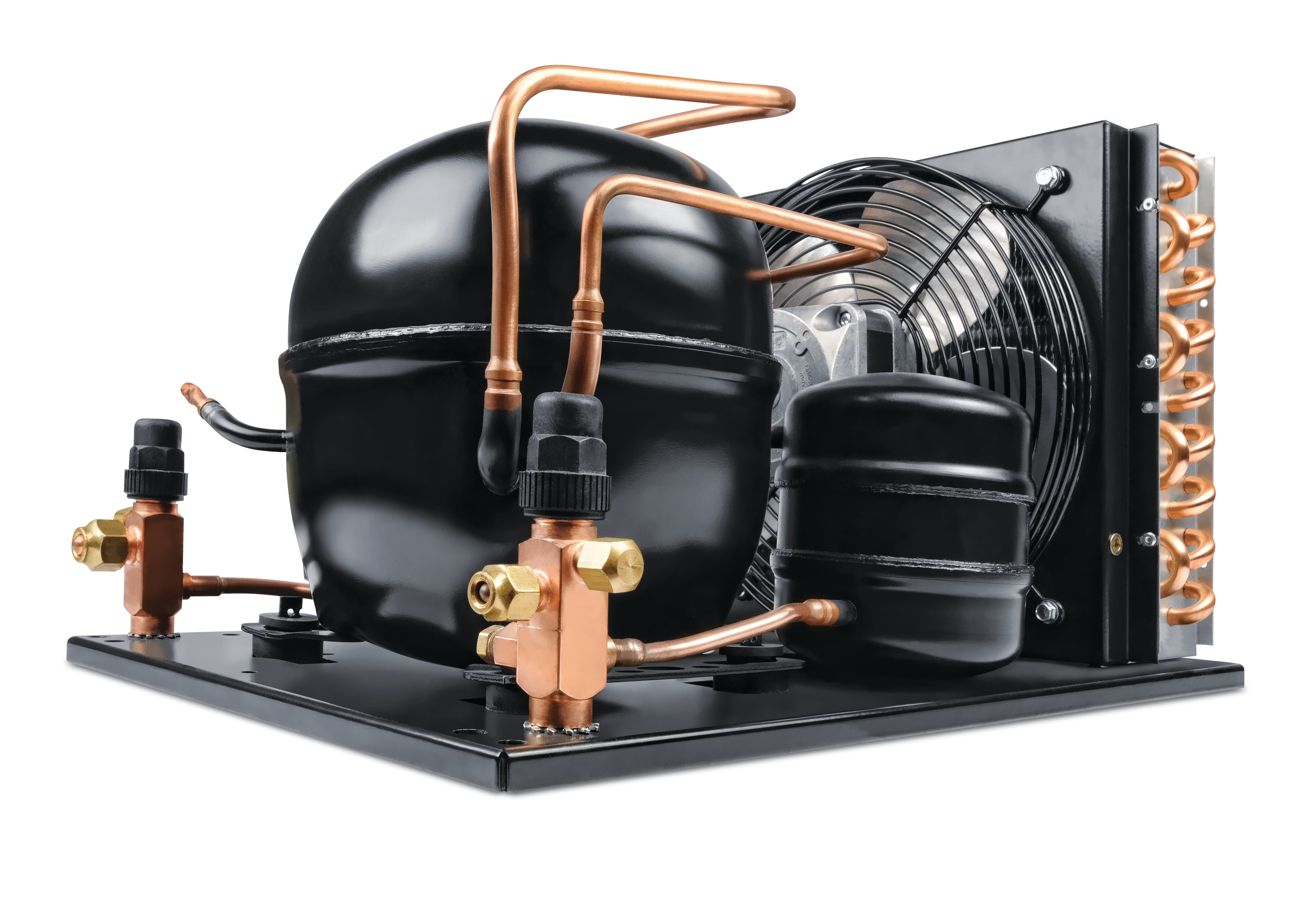

Danfoss 114N2339 Optyma Condensing Unit 230V 1 Hp

Product Description

The Danfoss 114N2339 Optyma Condensing Unit is designed for commercial refrigeration applications. This unit operates in low back pressure environments and is compatible with R404A and R507A refrigerants. It has a compressor power supply of 230 volts, single phase, 60 hertz, and is UL listed for safety.

• Segment usage: Low Back Pressure
• Refrigerants: R404A, R507A
• Compressor power supply: 230/1/60 V

Product Highlights

This unit is ideal for businesses that require efficient refrigeration solutions in low pressure settings.

Product Information

Standard Information

• Brand: Danfoss
• Model Number: OP-LCHC0100UWD000N

Technical Specifications

• Air flow @ 60Hz: 1480 m³/h
• Approval: UL listed
• Compressor Model: J2192GK2
• Compressor Power Supply: 230/1/60
• Condenser Type: BM72
• Fan Blade Size: 305 mm
• Fan Current @ 60Hz: 1 A
• Fan Power Consumption @ 60Hz: 150 W
• Overall Length: 483 mm
• Liquid Line Connection: 1/4 in
• Suction Connection Size: 3/8 in
• Total Height: 340 mm
• Width: 429 mm
• Horsepower: 1.0 hp
• Type: Indoor
