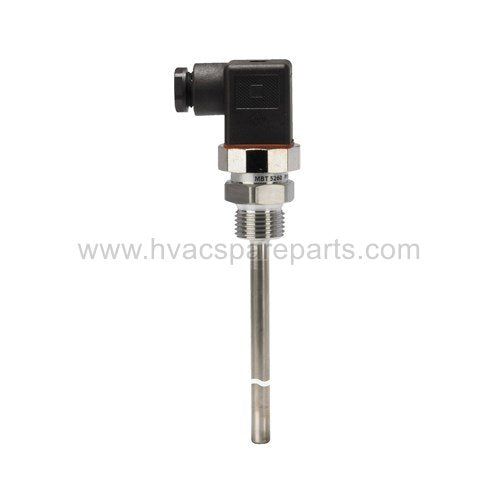

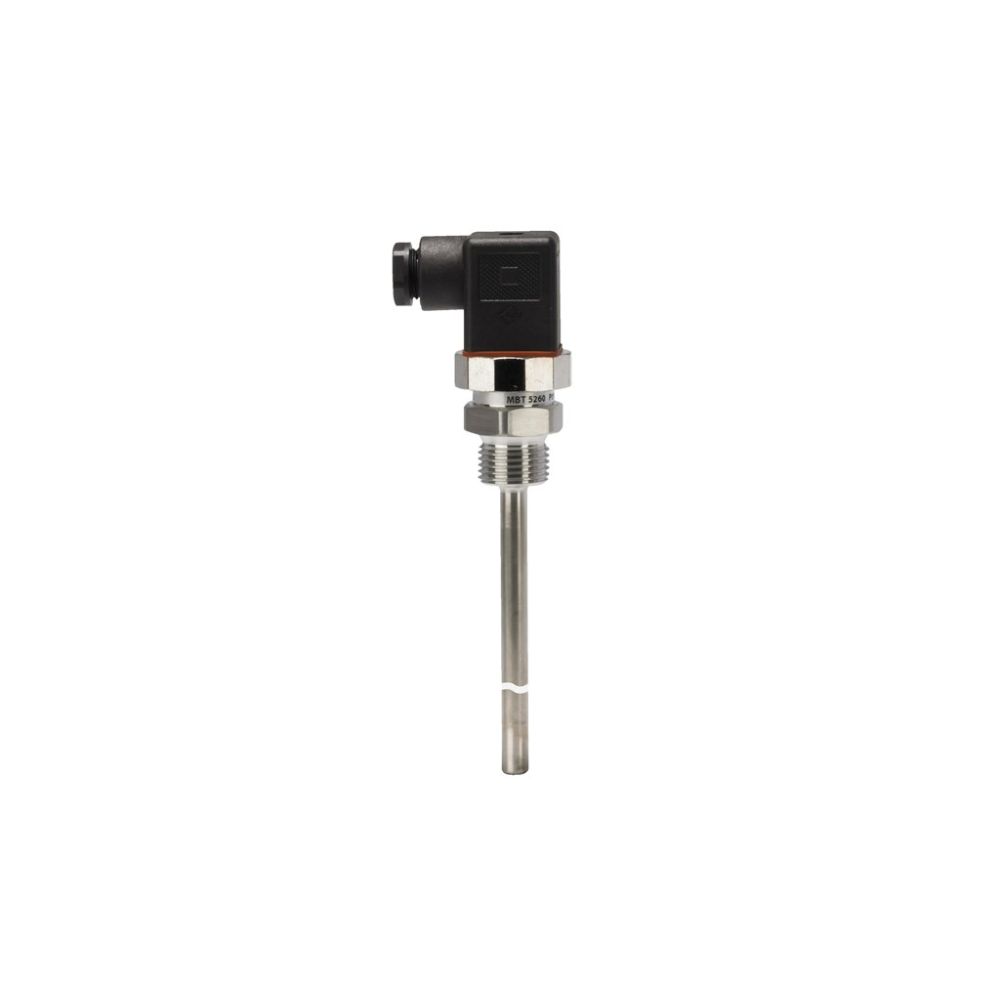

Danfoss 084Z3031 Danfoss MBT 5250 Temperature Sensor

Product Description

The Danfoss MBT 5250 Temperature Sensor, MPN 084Z3031, is built for industrial and marine usage. It monitors various fluids such as cooling water and lubrication oils. This sensor has a standardized Pt100 or Pt1000 element to ensure accurate readings. The design includes a silicone cable for enhanced resistance to vibrations. The wetted parts are constructed from stainless steel AISI 316 Ti, ensuring durability under various conditions.

• Heavy-duty temperature sensor for diverse applications.
• Utilizes standardized Pt100 or Pt1000 for precision.
• Features a DIN connector for reliable power connection.

Product Highlights

Product Information

Standard Information

• Brand: Danfoss
• Type: MBT 5250

Technical Specifications

• Electrical Connection: DIN Connector
• Temperature Range: -58 to +392 °F
• Max Ambient Temperature: 257 °F
• Sensor Element Type: Pt1000
• Insertion Length: 2 inches
• Process Connection Size: 1/2-14
• Protection Tube Material: AISI 316 TI
• EU RoHS Compliance: Yes with exemptions
