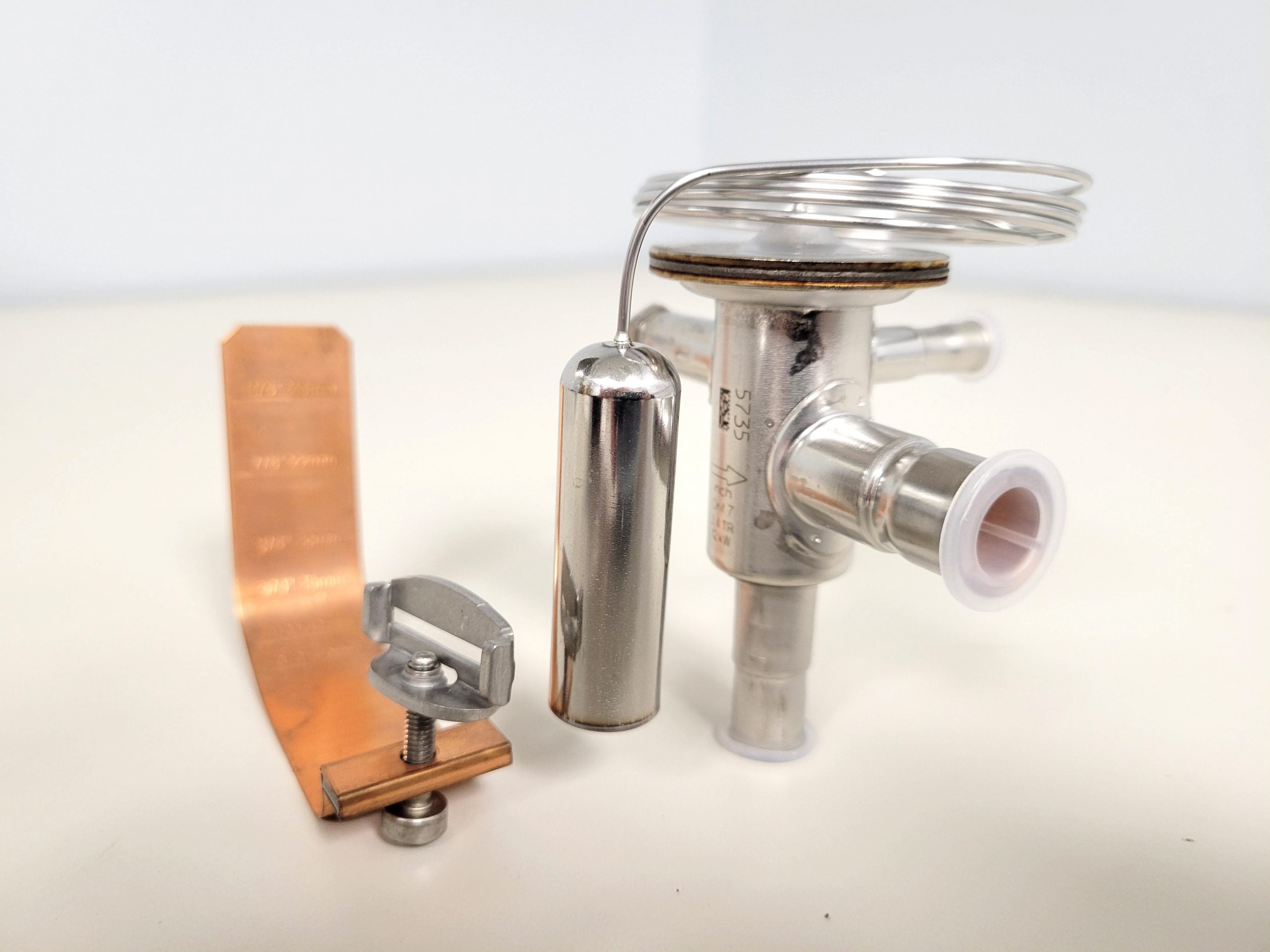

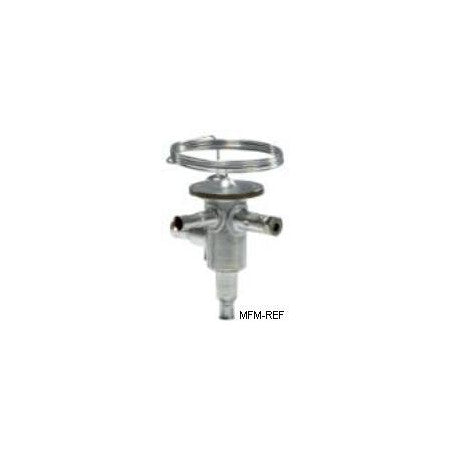

DANFOSS 068U1973 Thermostatic Expansion Valve

Product Description

The DANFOSS 068U1973 is a thermostatic expansion valve specialized for refrigeration systems. This valve controls the flow of refrigerant, particularly R410A, in HVAC applications. It is equipped with an external equalizer and made from stainless steel, ensuring durability and reliability.

• Refrigerant Type: R410A
• Bi-flow direction for versatile installation
• Adjustable superheat setting for optimized performance

Product Highlights

This expansion valve is ideal for traditional cooling systems, heat pumps, and air conditioning units, providing efficient refrigerant management.

Product Information

Standard Information

• Brand: DANFOSS
• MPN: 068U1973-CL

Technical Specifications

• Body Material: Stainless steel
• Inlet Size: 3/8 inches
• Outlet Size: 1/2 inches
• Refrigerant: R410A
• Max Working Pressure: 660 psig (45.5 bar)
• Temperature Range: -40 to 10 C [-40 to 50 F]
• Equalization Connection Type: Solder, ODF
• Equalization Size: 1/4 inches
• Static Superheat: 7.2 F (4 C)
