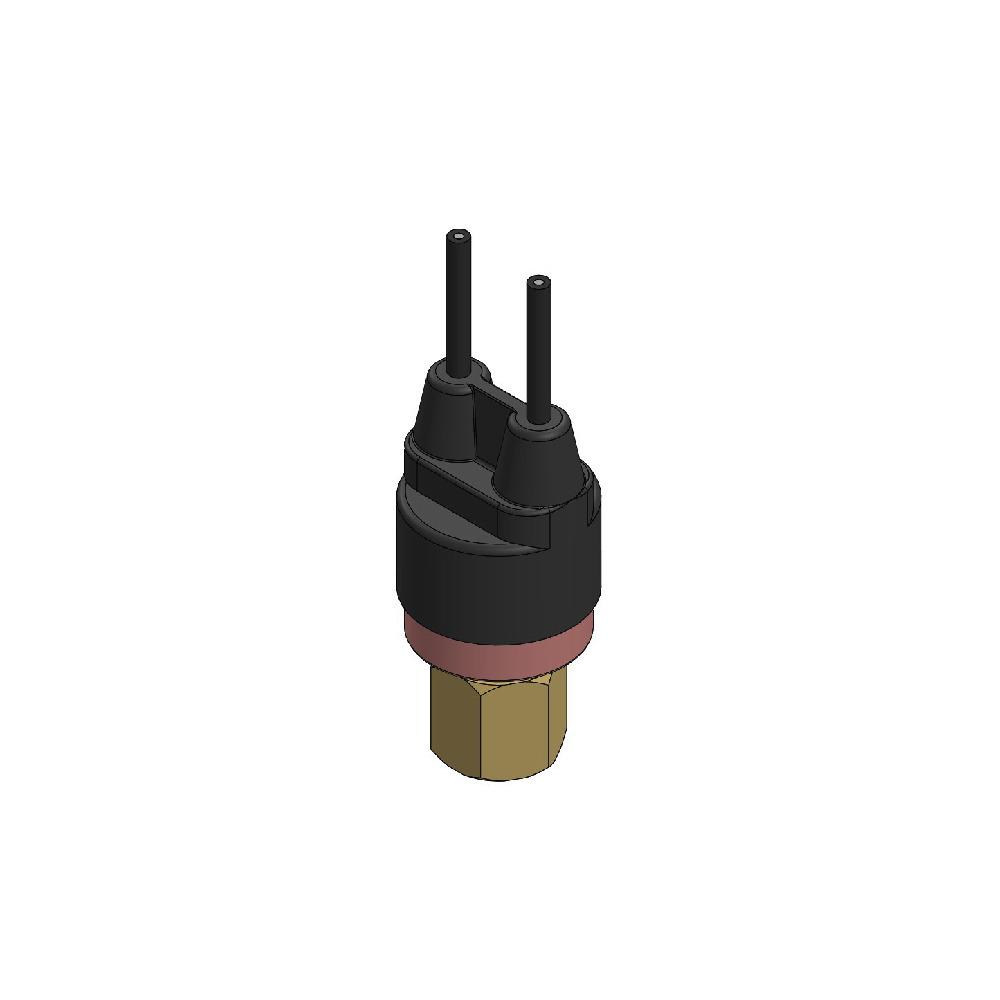

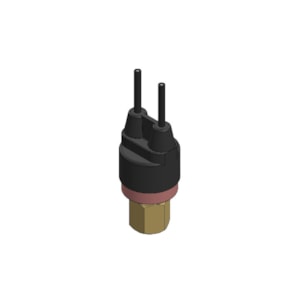

Danfoss 061F7452 Cartridge Pressure Switch ACB

Product Description

The Danfoss 061F7452 is a cartridge pressure switch used in air conditioning and commercial refrigeration. It features a single pole single throw normally open (SPST(NO)) contact function with automatic reset. The switch includes a flare pressure connection of one quarter inch and has an IP65 enclosure rating, which protects against dust and moisture.

• Contact function: SPST(NO)
• Pressure connection: 1/4 inch flare
• Enclosure rating: IP65

Product Highlights

This product is suitable for diverse applications, including HVAC and refrigeration systems. It operates efficiently within a wide ambient temperature range.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 061F7452

Technical Specifications

• Product Type: ACB
• Reset Function: Automatic
• Higher Activation Pressure: 1.38 bar
• Lower Activation Pressure: 0.35 bar
• Pressure Connection Type: Flare
• Cable Length: 1.5 m
• Contact Rating: AC=6 A, 250 V
• Mounting: Vertical +/- 45°
• Approval: CE 0035, TÜV, C UL US UL60730
• Refrigerants Compatible: R134a, R22, R404A, R410A, and more
• EU RoHS Compliance: Yes with exemptions
