Danfoss 060L203066 Thermostat KP81

Product Description

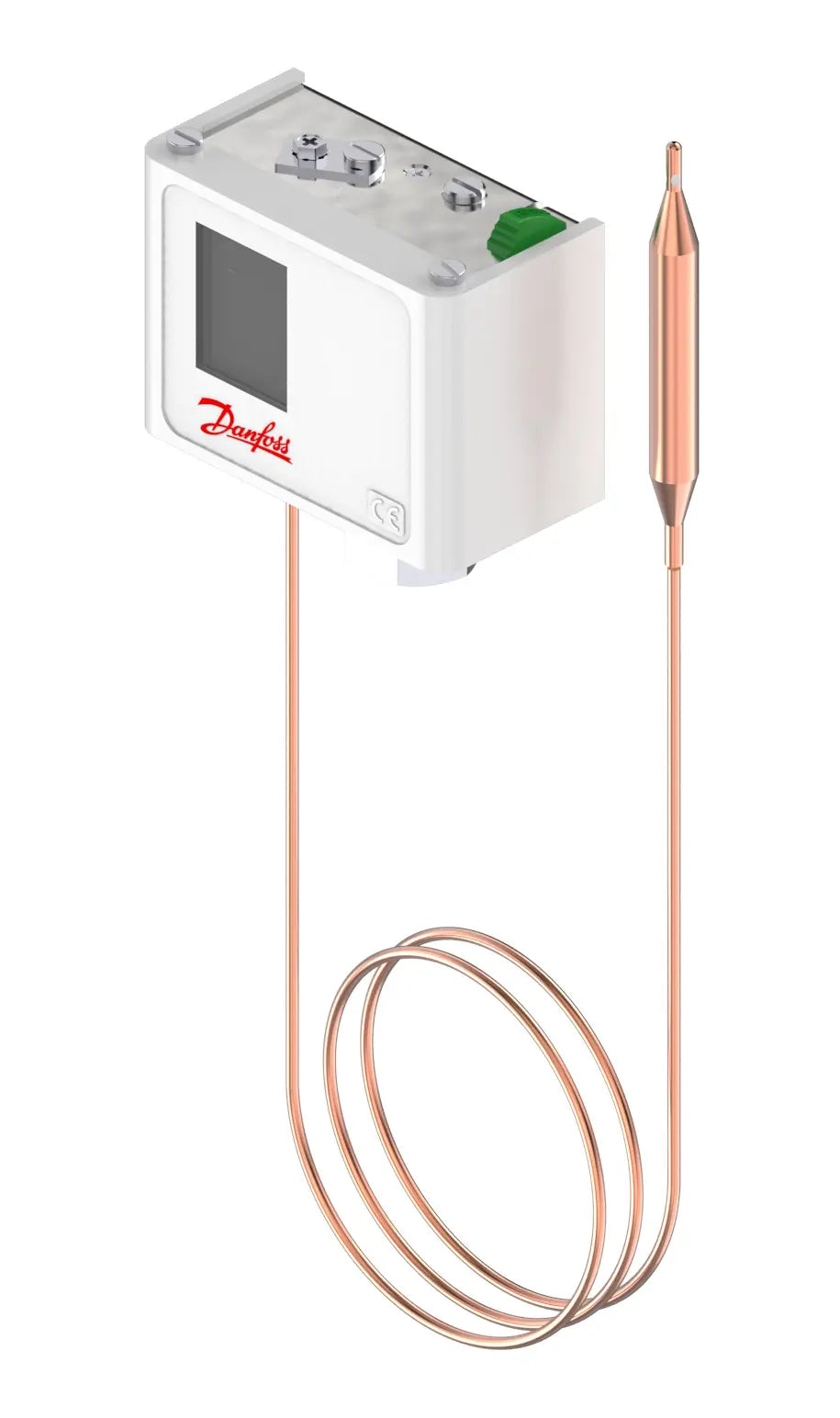

The Danfoss 060L203066 Thermostat KP81 is designed for precise temperature control in various applications. It features a manual max reset function and a remote bulb sensor with a capillary tube that measures 3048 mm. The thermostat operates within a temperature range of eighty to one hundred forty-nine degrees Celsius.

• Temperature range: eighty to one hundred forty-nine degrees Celsius
• Manual max reset function for easy adjustments
• Remote bulb sensor with a capillary tube length of 3048 mm

Product Highlights

This thermostat is suitable for HVAC systems and other temperature control applications.

Product Information

Standard Information

• Approval: BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LVD, RINA, RMRS, RoHS China, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2
• Charge type: Adsorption

Technical Specifications

• Capillary tube length: 3048 mm
• Contact function: SPDT
• Contact rating: 120 V AC, 16 FLA, 96 LRA
• Max. sensor temperature: 200 degrees Celsius
• Differential type: Fixed
• Enclosure rating: IP30
• Reset function: Manual Max
• Sensor type: Remote bulb
