Danfoss 060B017091 MP55 Differential Pressure Switch

Product Description

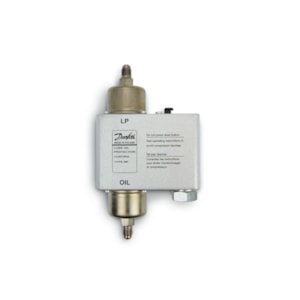

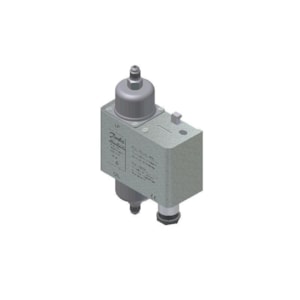

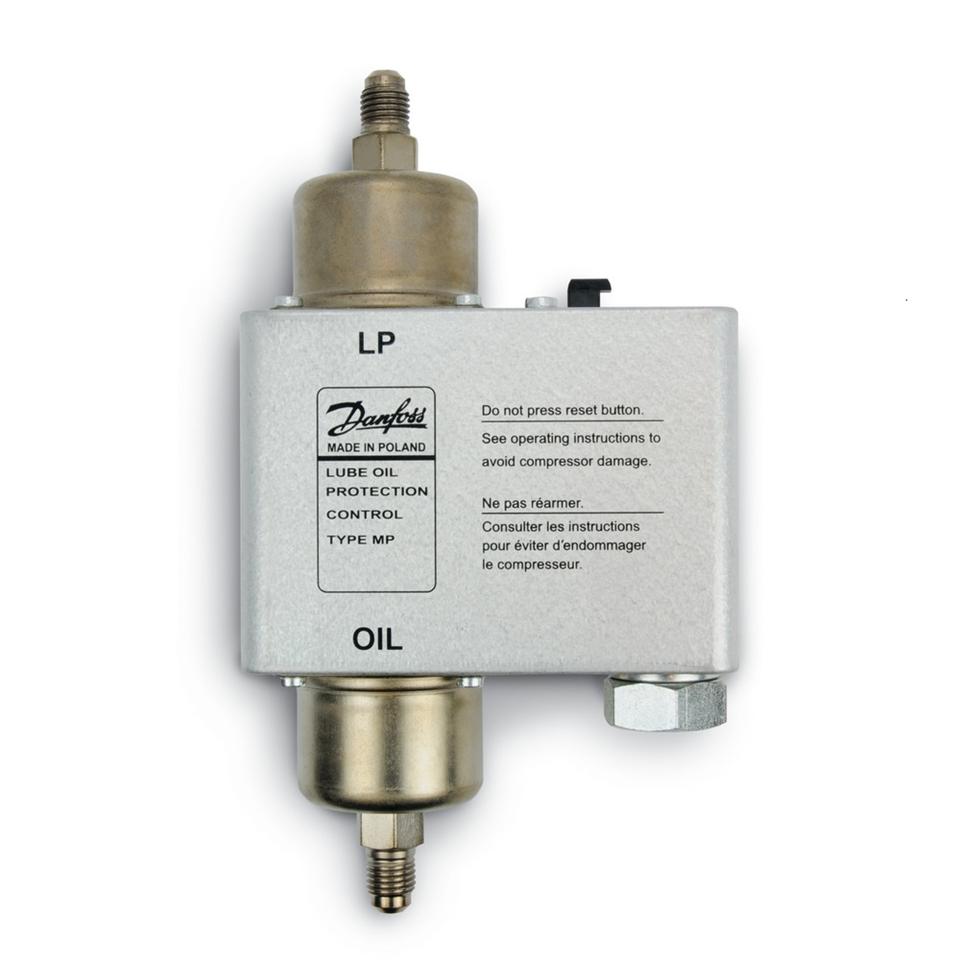

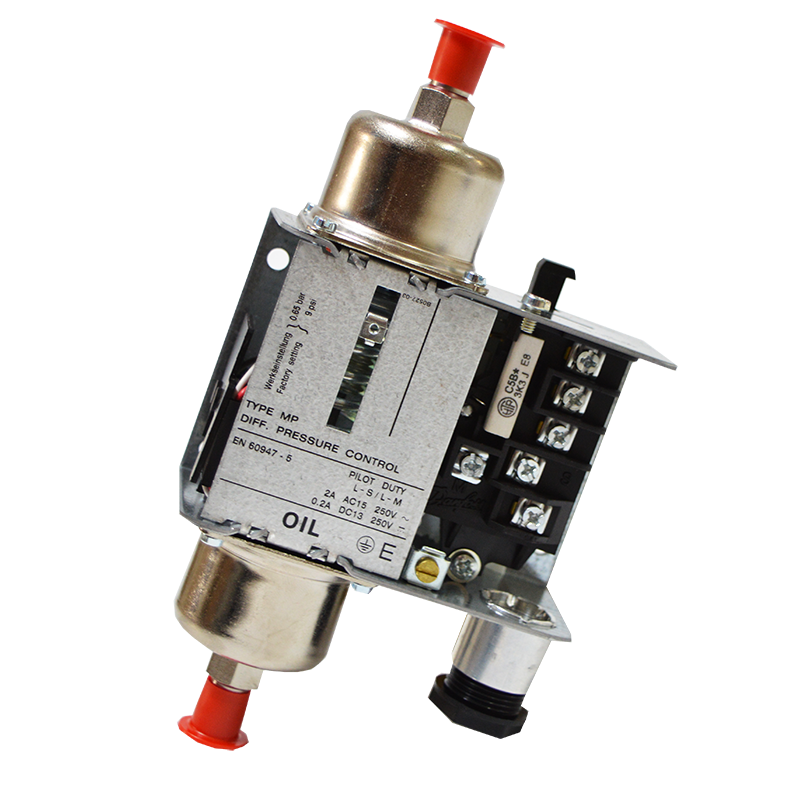

The Danfoss 060B017091 MP55 differential pressure switch is designed to monitor and control differential pressure in various applications such as HVAC systems, air compressors, and pumps. This switch features a differential pressure setting range of zero point three to four point five bar, allowing for flexible pressure control. It includes a manual minimum reset function and is equipped with a one-quarter inch flare pressure connection.

• Differential pressure range: 0.3 to 4.5 bar
• Maximum working pressure: 17 bar
• IP20 enclosure for indoor use

Product Highlights

This differential pressure switch is suitable for a variety of applications, ensuring reliability in monitoring systems.

Product Information

Standard Information

• Brand: Danfoss
• Model Number: MP55

Technical Specifications

• Adjustment Cut Out: Falling pressure
• Ambient Temperature Range: -40 °C to 60 °C
• Electrical Connection: Screwed cable entry, PG 13.5
• Contact Differential: 0.2 bar
• Contact Function: SPDT
• Max. Working Pressure: 17 bar
• Pressure Connection Size: 1/4 in
• Material: Brass
