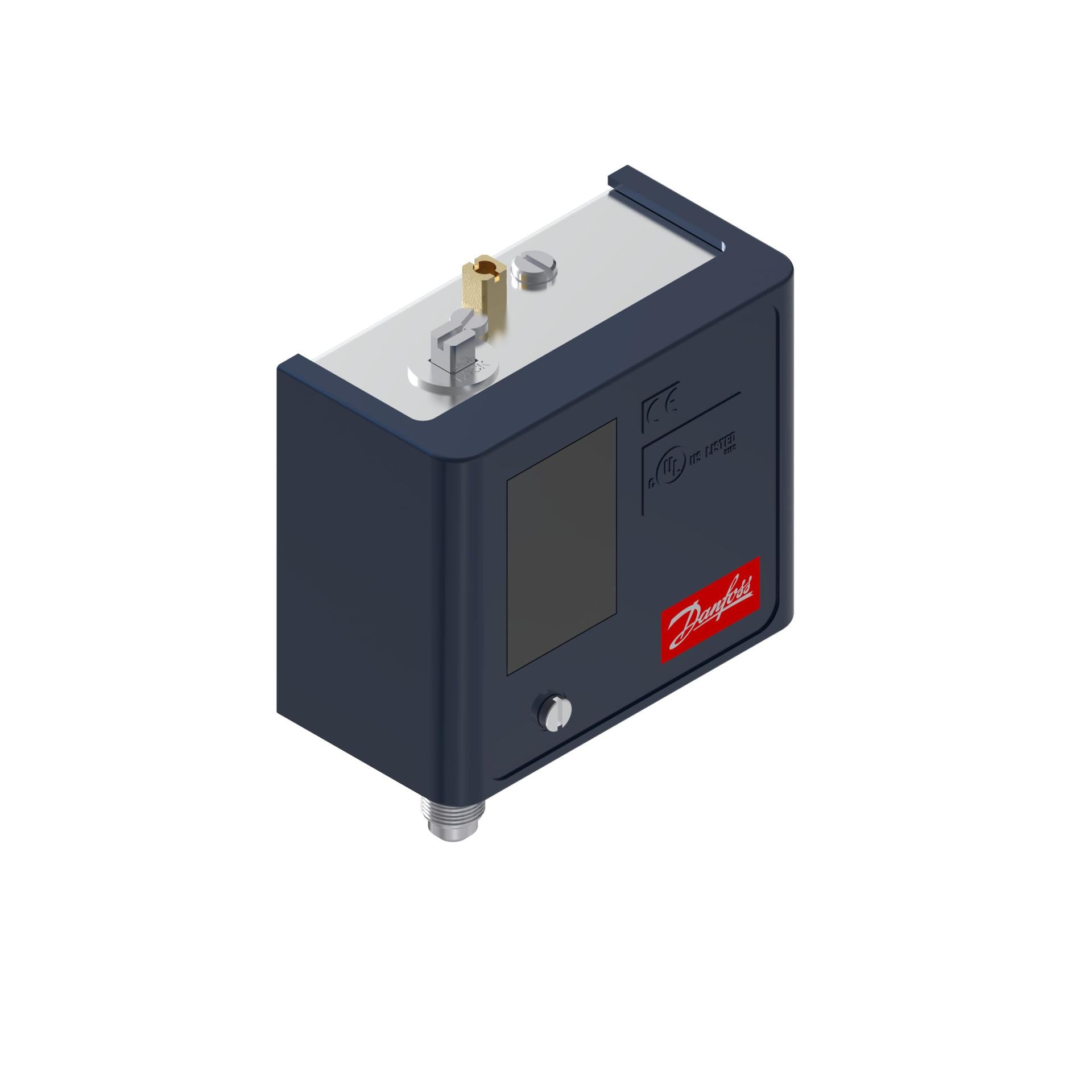

Danfoss 060-5613 Pressure Switch KPU1

Product Description

The Danfoss 060-5613 pressure switch, KPU1, is created for low pressure control applications. It performs effectively within a regulation range of negative zero point two to seven point five bar. The switch is equipped with a differential range from zero point seven to four bar and features single pole double throw (SPDT) contacts with an auto reset function. It is designed with a quarter inch flare pressure connection and has an IP30 enclosure rating.

• Regulation range of -0.2 to 7.5 bar
• SPDT contact function
• IP30 enclosure rating

Product Highlights

This pressure switch is suitable for HVAC applications and ensures reliable pressure control in various systems, including refrigeration.

Product Information

Standard Information

• Type: KPU1
• Product group: Switches and thermostats

Technical Specifications

• Enclosure rating IP: IP30
• Contact function: SPDT
• Max. Working Pressure: 17 bar
• Max. test pressure: 20 bar
• Ambient temperature range (max): 50 °C
• Ambient temperature range (min): -40 °C
• Differential range: 0.7 to 4 bar
