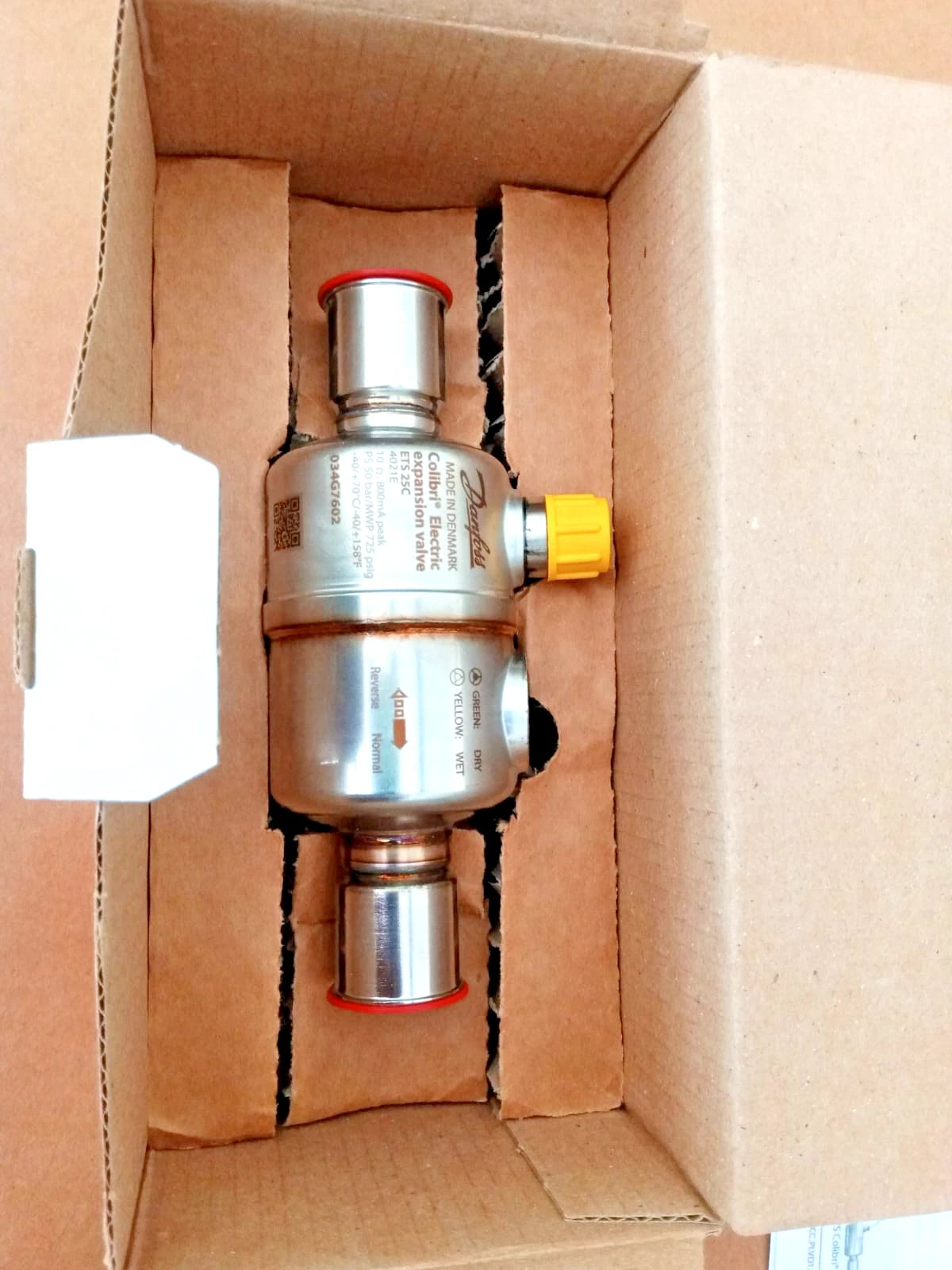

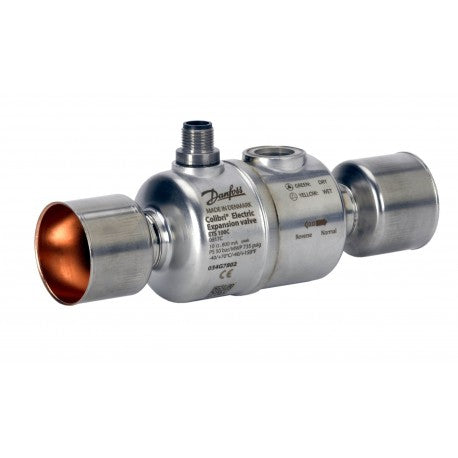

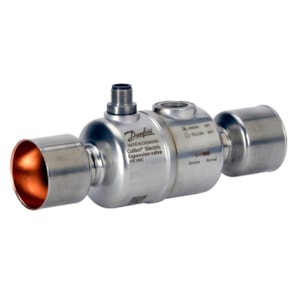

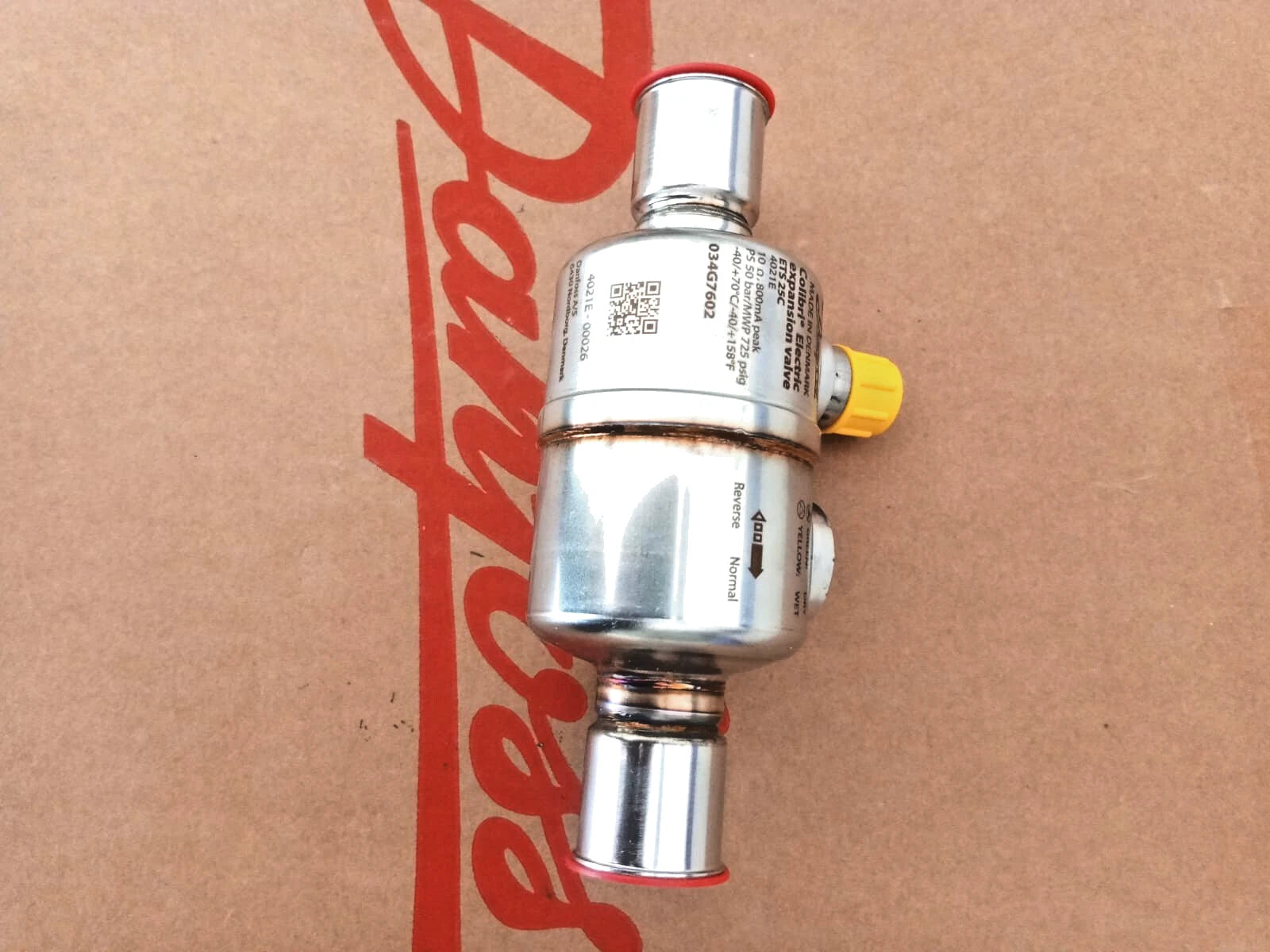

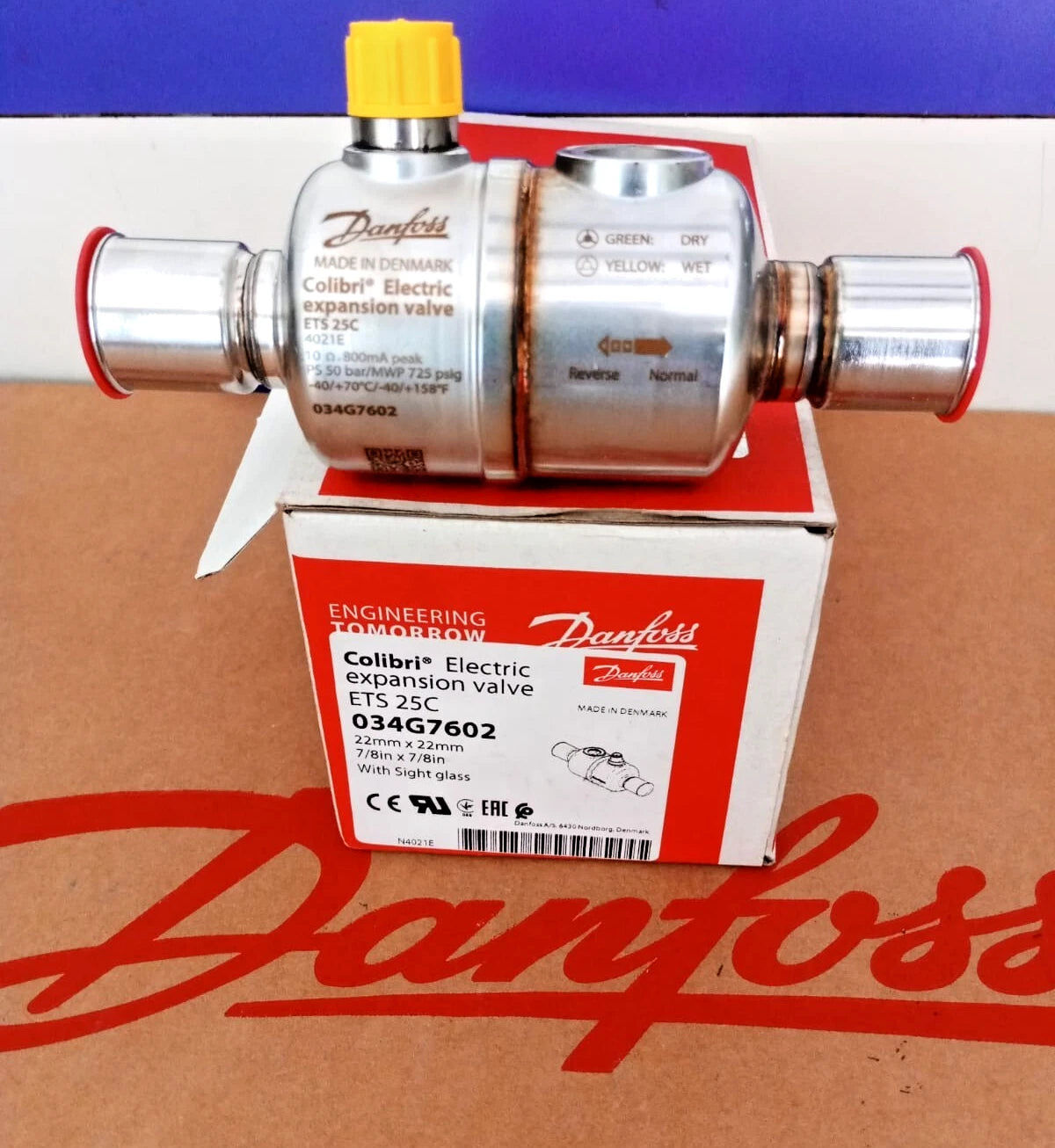

Danfoss 034G7602 ETS 25C Electric Expansion Valve

Product Description

The Danfoss 034G7602 is an ETS 25C electric expansion valve suited for various refrigeration tasks. This valve features a bi-flow design with a clear indication for flow direction. Its construction includes a stainless steel body and solder ODF connections for both inlet and outlet. It is compatible with several Danfoss controllers and can operate with a variety of refrigerants and lubricants.

• Inlet and outlet size: seven eighths inch (22 mm)
• Compatible with multiple Danfoss controllers like EKE 1A, EKE 1B, and others
• Enclosure rating: IP67

Product Highlights

This valve is designed for liquid line applications and performs effectively across multiple refrigerants.

Product Information

Standard Information

• Brand: Danfoss
• Type: Electric expansion valve

Technical Specifications

• MPN: 034G7602
• Model: ETS 25C
• Inlet Connection Type: Solder ODF
• Outlet Connection Type: Solder ODF
• Inlet Size: 7/8 inch
• Outlet Size: 7/8 inch
• Flow Direction: Bi-flow
• Body Material: Stainless steel
• Electrical Connection: M12, 4 pin
• Max Working Pressure: 50 bar
• Max Operating Current: 0.8 A
• Weight: 0.315 kg
• Compatible Refrigerants: R134a, R404A, R410A, etc.
