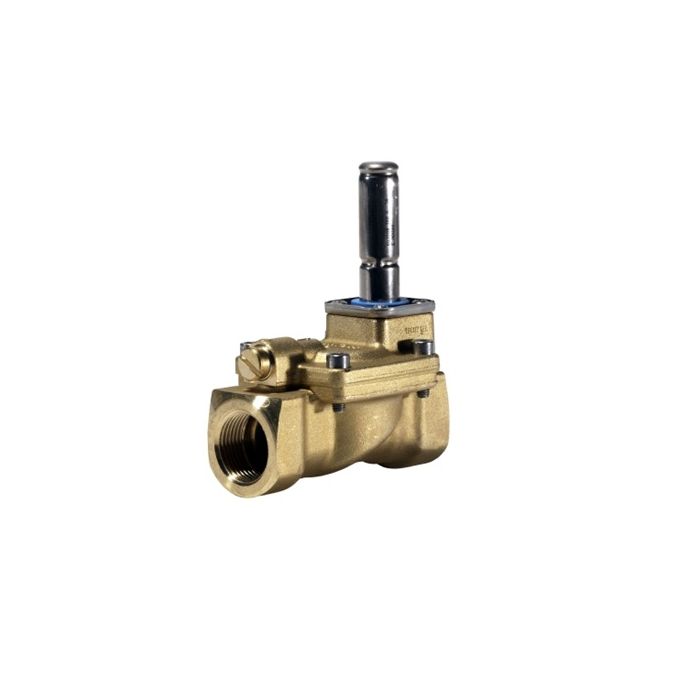

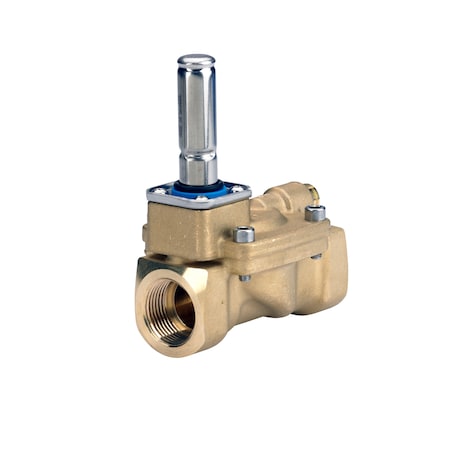

Danfoss 032U6545 Valve Npt 9.4Cv 2W No Soft Close

DANFOSS
Brand: DANFOSS
SKU: 032U6545
Availability: Out Of Stock
$253.69
$253.69
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Danfoss 032U6545 valve, also known as the EV220B 15-50, is a universal, high-performance indirect diaphragm-operated brass valve. It offers a high flow capacity for many types of media. Its slow closing design minimizes water hammer, and a built-in pilot filter greatly increases dirt resistance. Cv from 4.7 to 47.

  • Media recommendations: Water & Brine
  • Approval: DNVGL-CG-0339; GL; cURus recognized; C UL US LISTED
  • Body material: Brass

Product Highlights

This Danfoss valve is designed for use with water, steam, oil, compressed air, and gases. It features an anti-water hammer design and a fully encapsulated molded coil.

Product Information

Standard Information

  • Brand: DANFOSS
  • Manufacturer Part Number: 032U6545
  • Country of Origin: United States
Technical Specifications
Country of Origin (subject to change) [Specifications]
United States
Actuator
B
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [ C]
50 C
Ambient temperature max. [ F]
122 F
Application
Open
Approval
C UL US LISTED
Body material
Brass
China RoHS compliance
Yes with exemptions
China RoHS exemption clause
7.3
Connection Internal/External
Internal
Connection material
Brass
Connection size [in]
3/4
Connection standard
ANSI/ASME B1.20.1
Connection type
NPT
Contains batteries
No
Cv value [gal/min]
9.25 gal/min
Differential pressure [bar] [max]
9.791 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
142 psi
Differential pressure [psi] [min]
4.351 psi
EEE category
5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms]
40 ms
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NO
In scope of WEEE
Yes
Kv value [m /h]
8 m /h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
20 bar
Max. test pressure [psig]
290 psig
Max. Working Pressure [bar]
15.5 bar
Max. Working Pressure [psig]
225 psig
Media recommendations
Water & Brine
Media tolerance comments
Neutral media, Steam Max 4 bar, Temperature: Coil dependent
Medium temperature range [ C] [max]
120 C
Medium temperature range [ C] [min]
-10 C
Medium temperature range [ F] [max]
248 F
Medium temperature range [ F] [min]
14 F
Number of ways
2/2
Open/close equalizing orifice
Optional Equalization orifice
Operation
Servo-operated (diaphragm)
Orifice size [mm]
20 mm
Orifice size fraction [in]
3/4 in
Packing format
Multi pack
Parts Program name
EV220B 15 - 50
Product accessories
Solenoid valve accessories
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name
EV220B 15-50 brass NO - solenoid valve
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV220B 20B N 34E NO000
Type designation
EV220B 20
UL mark
Yes
Manufacturer
Danfoss, Inc.
Product Type
VALVE
Vendor Item
032U6545
Vendor Short Name
DANFOS
RoHS Compliant
RoHS Compliant
Max Media Temperature
248 F
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Type
Pilot
Valve Operation
Normally Open
Orifice Size
3/4 in
Wetted Materials
Brass, EPDM
Pressure Range
4.351 - 142 PSI
UNSPSC Code
27130000
Brand
Danfoss
Configuration
NO
Manufacturer Part Number
032U6545
Number of Ports
2
Series
EV220B 50/15 Series
Thread Type
NPT
Unit of Measure
EA
