Danfoss 030G6514 Type B Solid 80-Degree Oil Nozzle 0.65 GPH

Product Description

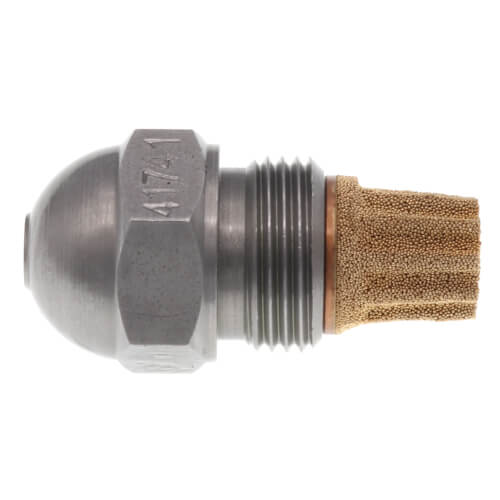

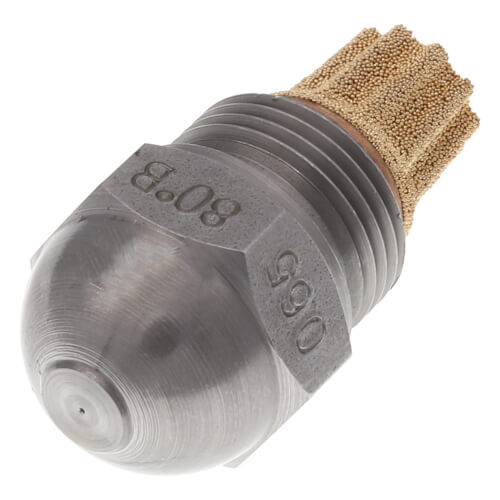

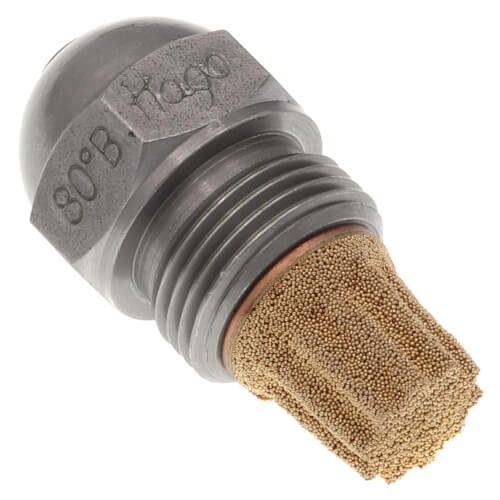

The DANFOSS 030G6514 is a Type B solid oil nozzle with an 80-degree spray angle and a flow rate of 0.65 GPH. Constructed from stainless steel, it includes a 30-40 um sintered bronze filter. This nozzle is designed as a replacement part for oil burner systems, ensuring efficient fuel atomization and combustion. It is suitable for various heating applications using oil fuel.

• Made of Stainless Steel
• Spray angle of 80°
• Flow rate of 0.65 GPH

Product Highlights

Stainless steel oil nozzle with 80-degree spray angle and 0.65 GPH flow rate, featuring a sintered bronze filter.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 030G6514

Technical Specifications

• Material: Stainless Steel
• Gallons Per Hour: 0.65
• Spray Pattern: B
• Type: Solid Cone
• Angle: 80°
• Application: Replacement Part
• Capacity [USgal/h]: 0.65 gal/h
• Filter grade [µm]: 30-40
• Filter type: P-Sinter
• Specification point: 100 psi, 35 SSU, gravity 0.825 @60°F
• Spray angle [°]: 80 °
• Spray pattern: Solid
