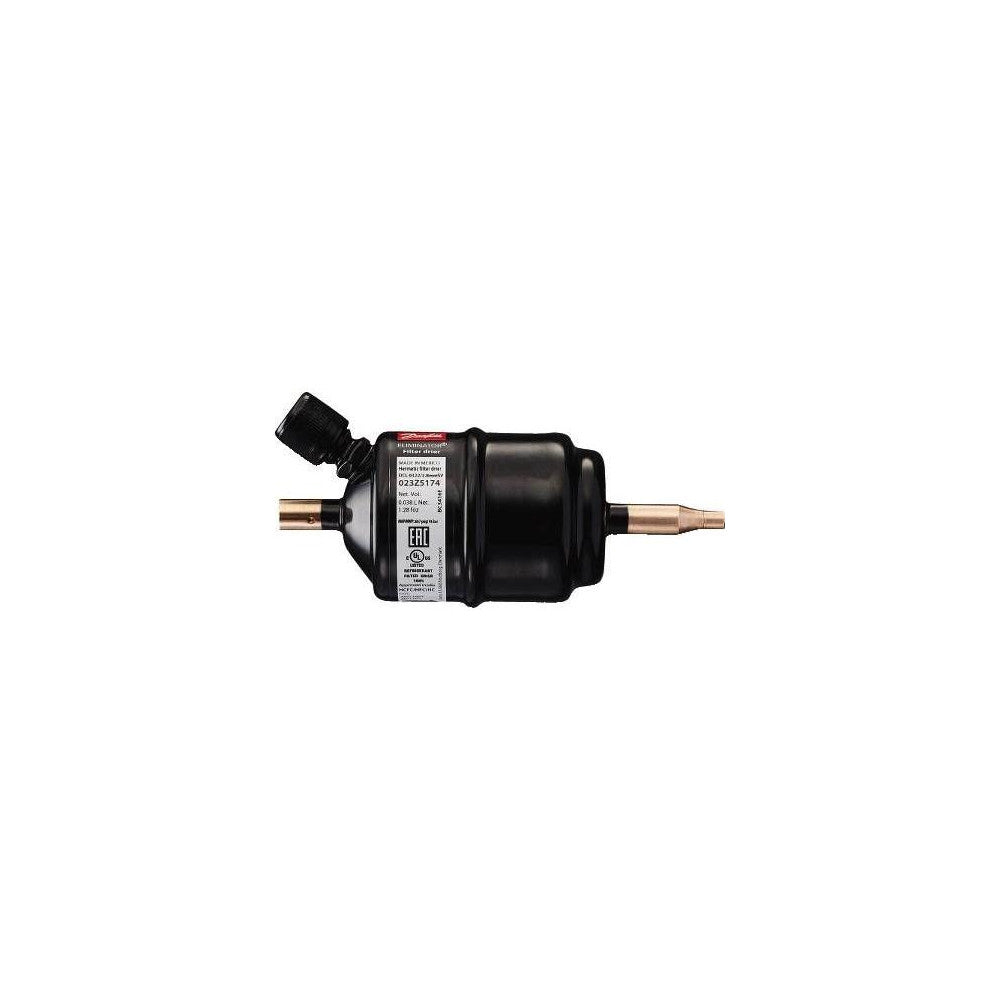

DANFOSS 023Z5174 DCL Filter Drier 023Z5174

Product Description

The DANFOSS 023Z5174 is a DCL filter drier specifically designed for liquid lines in refrigeration systems. It features a solid core that consists of eighty percent molecular sieve and twenty percent activated alumina for superior filtration. Constructed with a steel body and equipped with copper connections, including a Schrader valve inlet, it is highly compatible with various refrigerants.

• Core size of 03 cubic inches for effective moisture and acid filtration.
• Maximum working pressure of forty-six bar or six hundred sixty-seven psig.
• Designed for a wide range of refrigerants including R134a and R410A.

Product Highlights

This filter drier ensures high acid and moisture absorption, which is critical for maintaining the efficiency and longevity of HVAC systems.

Product Information

Standard Information

• Brand: DANFOSS
• MPN: 023Z5174

Technical Specifications

• Core Type: Solid core
• Max Working Pressure: 46 bar
• Max Working Pressure: 667 psig
• Body Material: Steel
• Inlet Connection Size: 1/4 inch
• Outlet Connection Size: 2.8 mm
• Temperature Range: -40 °C to 70 °C (-40 °F to 160 °F)
• Refrigerants: R134a, R290, R32, R404A, R410A and others
