DANFOSS 003Z0784 Ab-qm Ansi 3 Inch

Product Description

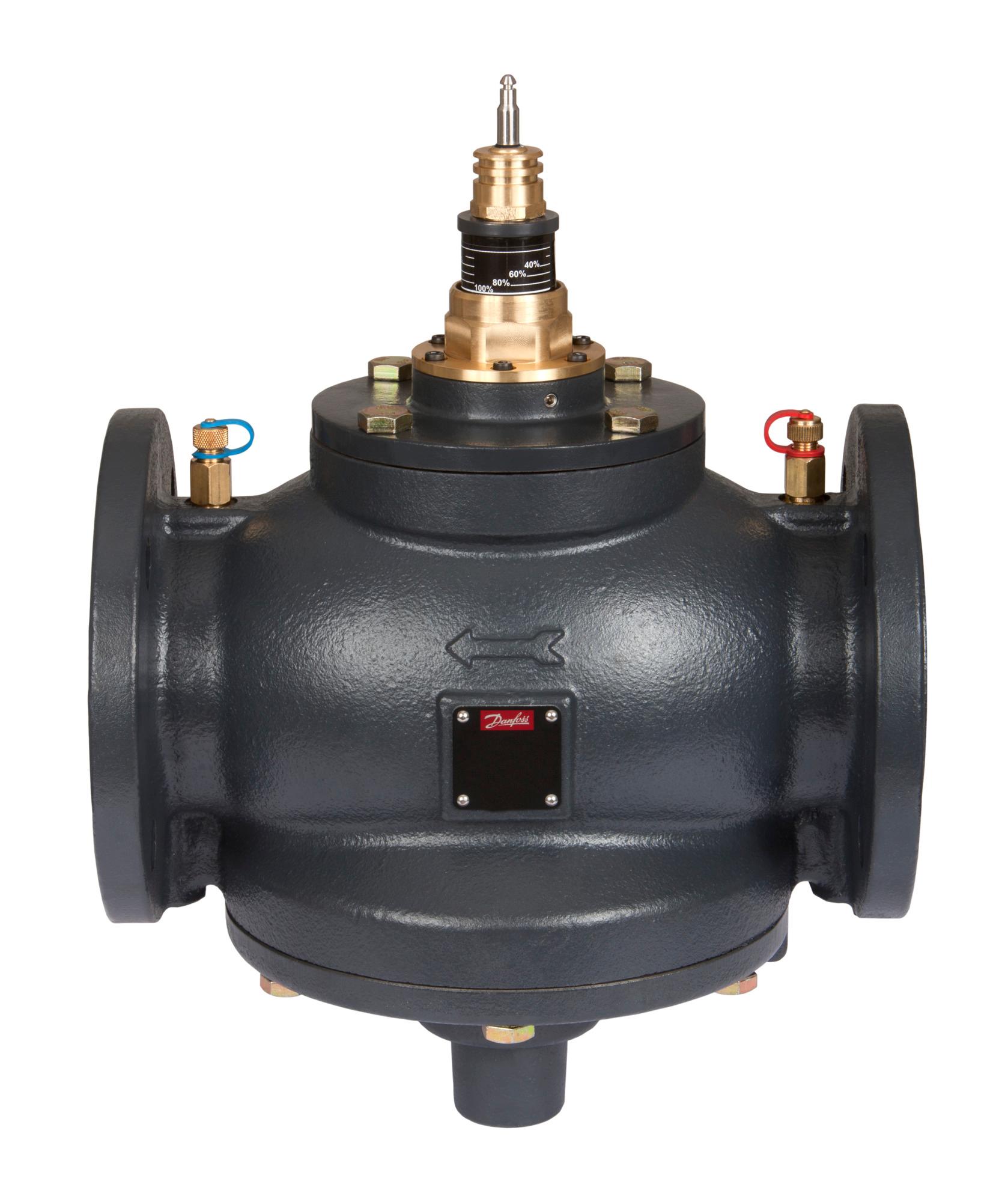

The DANFOSS 003Z0784 is a pressure independent balancing and control valve designed for HVAC systems. It features a three-inch ANSI flanged connection and manages flow rates up to 120 gallons per minute. This valve combines a differential pressure controller with a flow limiter which ensures stable and accurate flow control.

• Pressure independent balancing and control valve
• Compatible with ANSI flange connection
• Provides stable and accurate flow control

Product Highlights

The DANFOSS 003Z0784 AB-QM valve is perfect for applications that require consistent flow stability.

Product Information

Standard Information

• Brand: DANFOSS
• Part Number: 003Z0784

Technical Specifications

• Actuator connection: M30 x 1.5
• Connection types: ANSI Flange
• Differential pressure range max: 60 psi
• Differential pressure range min: 4 psi
• Flow max: 120 gal/min
• Media temperature max: 250 °F
• Media temperature min: 15 °F
• Static pressure max: 300 psi
• Stroke: 15 mm
• Test plugs: With test plugs
• Valve body material: Grey cast iron (A48 No. 35A)
• Valve size: 3 inches
