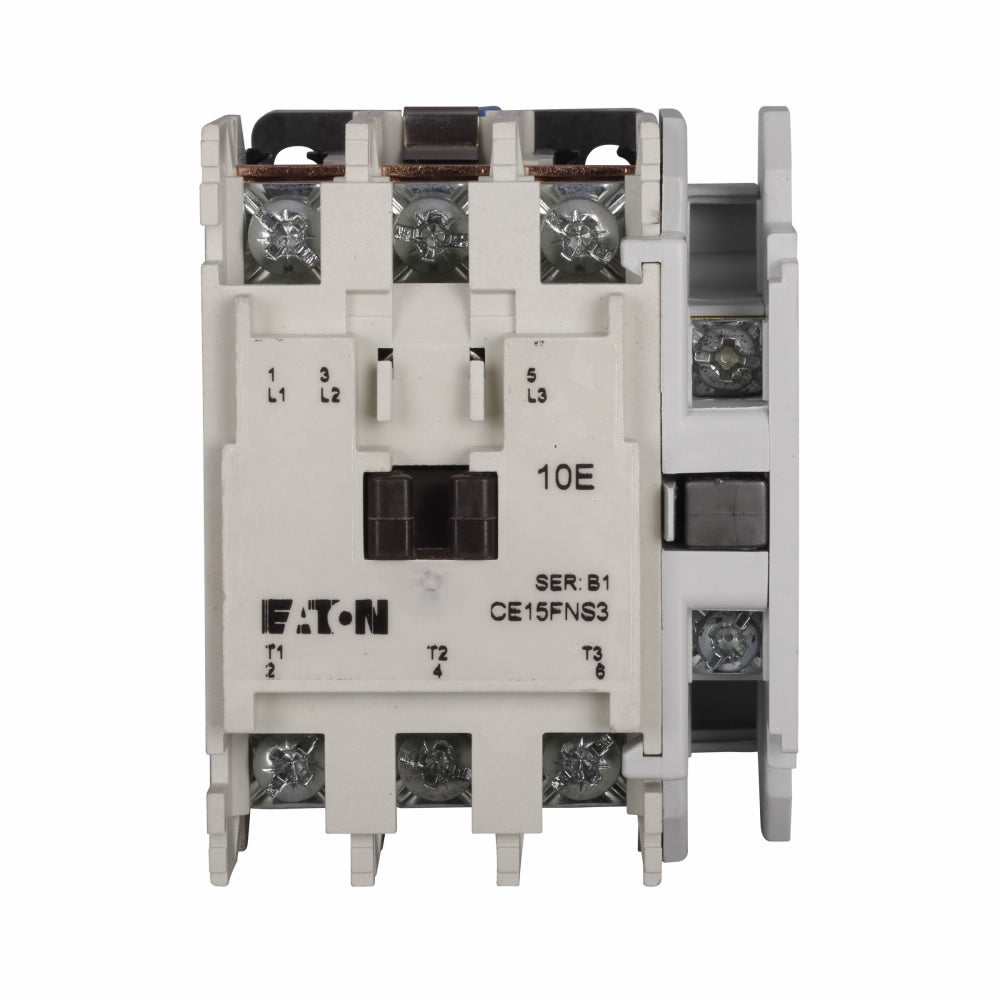

Eaton CE15FNS3AB Freedom Non-Reversing IEC Contactor 3-Pole 120V

Product Description

The Eaton CE15FNS3AB contactor is a robust three-pole, non-reversing IEC contactor designed for reliable performance. Engineered by Eaton, this model is part of the Freedom series and operates on a 120 Volt AC coil with a 32 Amp maximum load current, designed for efficient motor and power control. Suitable for both industrial and residential installations, this contactor is backed by Eaton's reputation for quality.

• 120 Volt AC coil, 32 Amp, three-pole design.
• No overload relay with a two horsepower maximum, steel mounting plate included.
• 1NO side-mounted auxiliary contacts for expanded functionality.

Product Highlights

This contactor is certified with IEC, CSA, DIN VDE 0600, UL, and ISO 9000 standards, ensuring compliance with international and local regulations. Its non-reversing mechanism is specifically designed for applications where the motor direction remains constant.

Product Information

Standard Information

• Brand: Eaton
• Type: IEC Contactor
• Model: CE15FNS3AB

Technical Specifications

• Coil Voltage: 120 VAC
• Number of Poles: 3 Pole
• Operating Frequency: 50/60 Hz
• Contact Configuration: 1NO
• Height: 2.96 inches
• Length: 3.25 inches
• Width: 1.8 inches
• Weight: 1.01 lb
