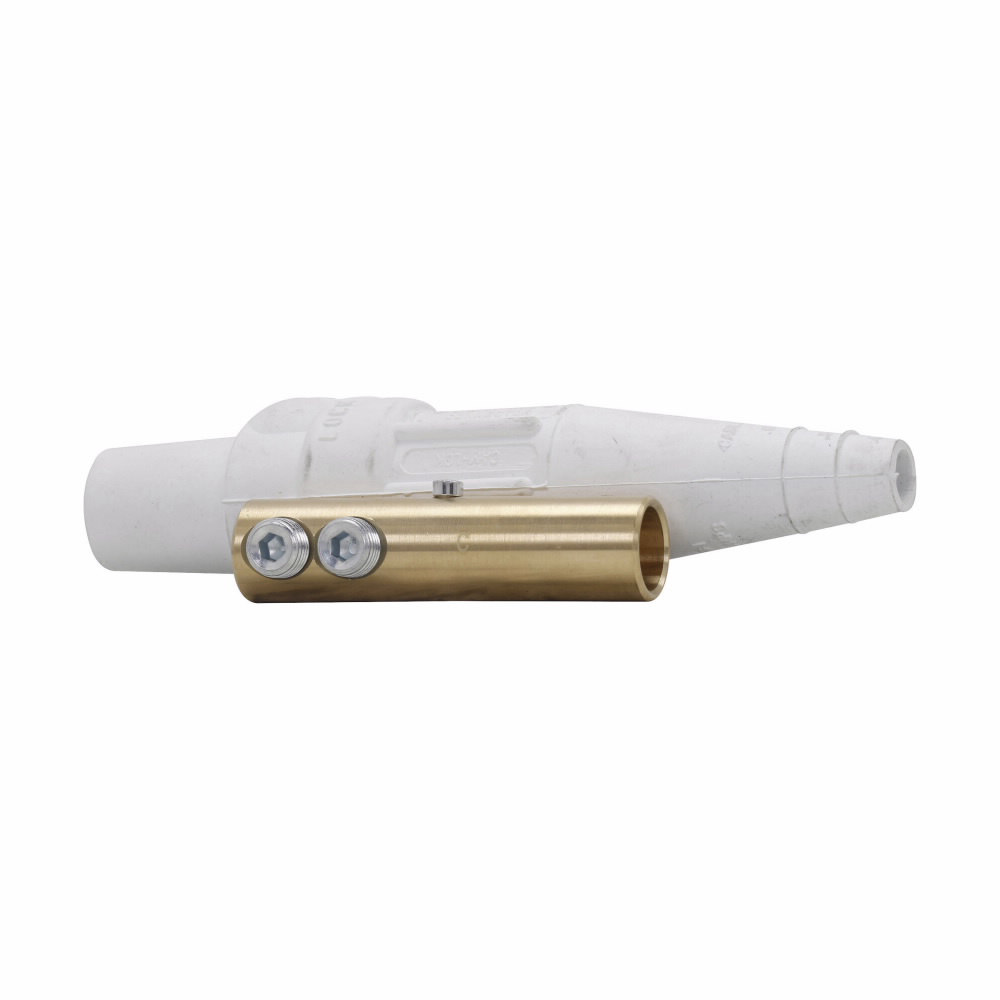

Crouse-Hinds E1016-8380 CRS E1016-8380 WHT FM PLG

Product Description

The Crouse-Hinds E1016-8380 is a plug designed for safe and efficient electrical connections in various power applications. It can handle up to 300 amperes continuously, suitable for wire sizes from #2 to 2/0 AWG. This product features a double set screw connection and is made from thermoplastic elastomer, ensuring durability in demanding environments.

• Voltage Rating: 600 Vac/Vdc
• Temperature Range: -40 to 105 degrees Celsius
• Applications: Ideal for portable power, motors, and generators

Product Highlights

This plug is essential for connecting power systems quickly and safely.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Sub Brand: Cam-Lok

Technical Specifications

• Catalog Number: E1016-8380
• Material: Thermoplastic elastomer (TPE)
• Weight: 0.6 lb
• Dimensions: 1.50 inches in diameter x 7.18 inches in length
• Connection Type: Double set screw
• Number of Poles: 1
• Environmental Conditions: -40 to 105 degrees Celsius
