Crouse-Hinds E1016-1687S45 CRSH E1016 F R 45DEG

Product Description

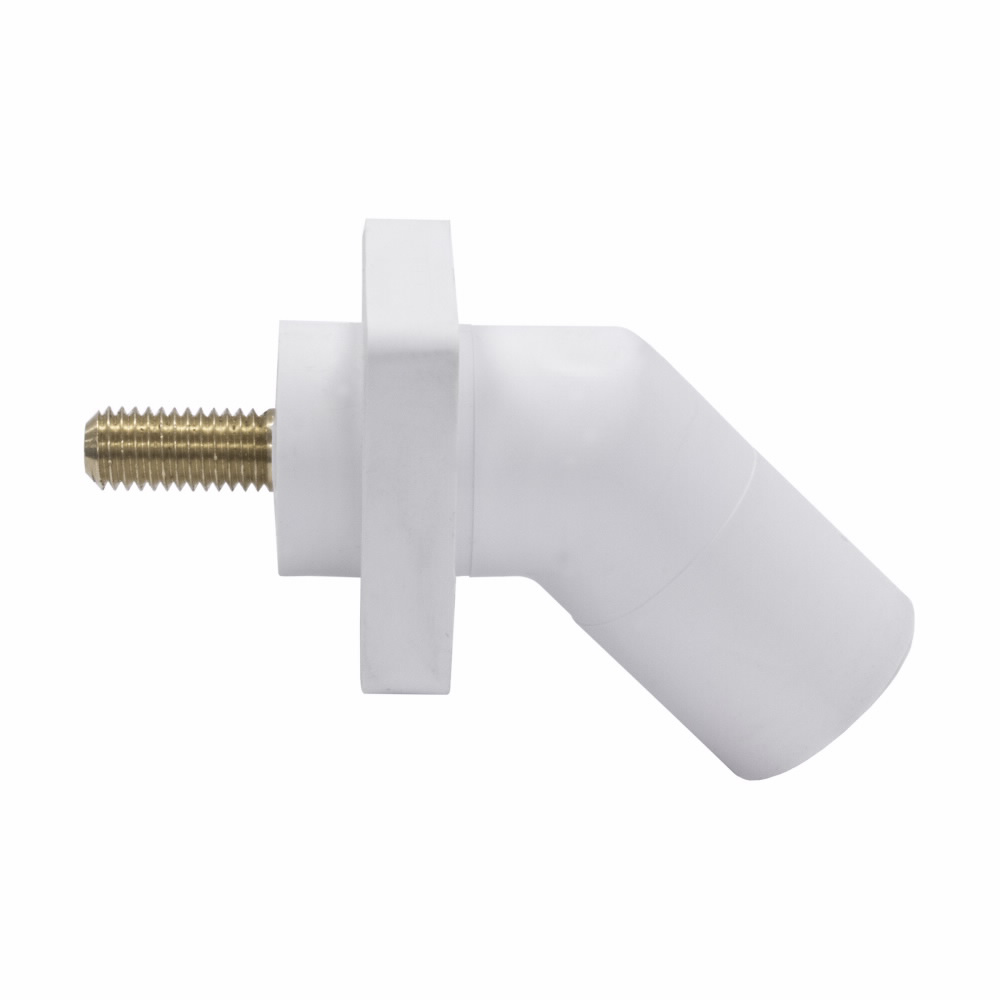

The Crouse-Hinds E1016-1687S45 is an insulated receptacle designed for reliable power connection in various applications. This model supports up to 400A continuous load and accommodates wire sizes ranging from two to four aught. Constructed from thermoplastic elastomer, it is suitable for both indoor and outdoor use. The receptacle features a one and one-eighth inch threaded stud for secure connections.

• Supports up to 400A continuous load.
• Wire sizes from #2 AWG to 4/0 AWG.
• Rated for 600 VAC/VDC for versatile applications.

Product Highlights

This receptacle is ideal for quick disconnects in power systems, widely used in power distribution and control in industrial facilities.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Catalog Number: E1016-1687S45
• Color: Brown
• Material: Thermoplastic elastomer (TPE)
• Voltage Rating: 600 VAC/VDC
• Amperage: 400 Amp
• Wire Size: #2 AWG to 4/0 AWG
• Connection Type: 1-1/8 inch threaded stud
• Temperature Rating: -40 to 105 degrees Celsius
