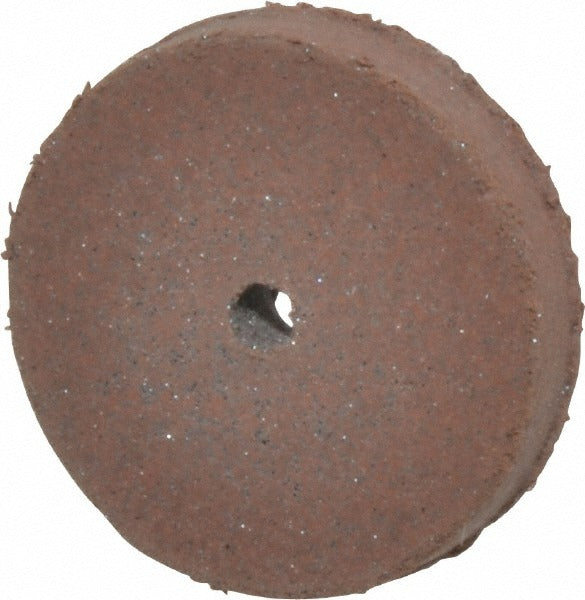

Cratex 53F Surface Grinding Wheel Silicon Carbide Fine

Product Description

The CRATEX 53F is a small-diameter surface grinding wheel built for precision material removal on fine, delicate, and high-tolerance workpieces. It measures 0.625 inches in diameter, 3/32 inches thick, and has a 1/16 inch hole size. The abrasive is silicon carbide bonded in a rubber matrix, producing a fine grade cut with a degree of flexibility that reduces chipping and surface damage on sensitive substrates. Rated at 25,000 RPM, this wheel is suited to high-speed rotary tool use across a range of light-duty grinding and deburring tasks. It is typically installed and used by machinists, tool and die makers, jewelers, and electronics technicians.

This wheel is designed for precision grinding applications where surface finish and dimensional control are critical. Documented applications include aerospace components, control mechanisms, dies, electronic parts, instruments, jewelry, light castings, molds, plastic articles, and super sensitive scientific devices. Its small form factor and rubber bond make it especially effective on intricate geometry, thin-wall parts, and materials that are prone to heat damage or fracture under aggressive abrasive contact. The fine grade and silicon carbide composition make it a practical choice wherever a smooth finish is required on non-ferrous metals, ceramics, or plastics.

Key Features

• Silicon carbide abrasive for effective cutting on non-ferrous metals, ceramics, and plastics
• Rubber bond provides controlled flexibility, reducing surface damage on sensitive workpieces
• Fine grade abrasion for smooth finishing and light material removal
• 25,000 RPM maximum speed rating for compatibility with high-speed rotary tools
• No recess design for straightforward mounting and use
• Brown wheel color for easy visual identification in multi-wheel setups

Compatibility

Designed for use with aerospace components, control mechanisms, dies, electronic parts, instruments, jewelry, light castings, molds, plastic articles, and super sensitive scientific devices. Verify that the tool spindle and collet accept a 1/16 inch hole size before installation.

Installation Notes

This wheel is mounted by machinists or precision technicians using a compatible rotary tool or grinding unit with an appropriate collet or mandrel for the 1/16 inch hole size. Always confirm the tool's maximum RPM rating meets or exceeds 25,000 RPM before mounting. Inspect the wheel for cracks or chips before each use and do not exceed the rated speed. Wear appropriate eye protection and follow all applicable shop safety standards during operation.
