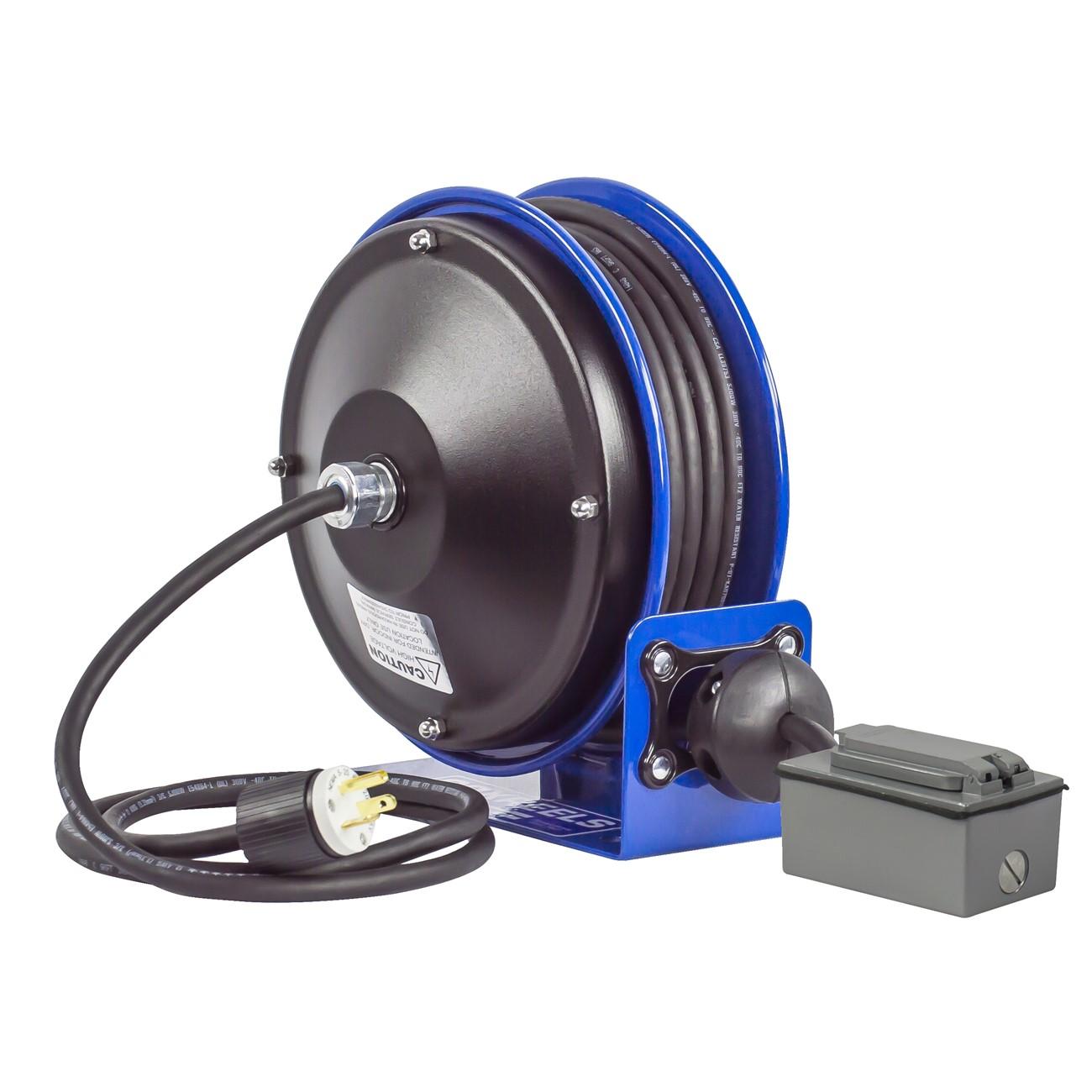

Coxreels PC10-3012-F Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3012-F is a compact, spring-driven power cord reel designed for commercial and industrial environments where space is at a premium. Built on the PC10 Series platform, it manages up to 30 feet of power cord and features a CNC-spun, ribbed steel disc construction with rolled edges for durability and operator safety. A continuous-radius composite grommet guides the cord without pinching or catching during extension or retraction. The unit ships as a single assembly and is suited for installation by electricians and maintenance technicians in facilities, shops, and service bays.

This cord reel is intended for commercial and industrial applications where reliable cord management is required in confined or overhead mounting situations. The spring-driven retraction mechanism keeps cords organized and off the floor, reducing trip hazards and cord wear. The included 5-foot lead cable, grounding plug, and duplex GFCI metal industrial receptacle make it ready for direct integration into standard electrical service. Its compact footprint allows mounting in areas where full-size reels cannot fit.

Key Features

• Spring-driven retraction with a composite ratchet hub and self-lubricating bronze bearings to secure cord at desired length
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• Continuous-radius composite grommet prevents cord pinching during operation
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• One-piece 12-gauge steel base and support post for stable, lightweight mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and duplex GFCI metal industrial receptacle
• Chip-resistant, rust-inhibiting powder coat finish for long service life in demanding environments

Compatibility

Designed as an OEM-style replacement or new-installation cord reel for commercial and industrial power cord management applications requiring a compact spring-driven unit.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit before making any wiring connections to the lead cable or receptacle. Verify that the mounting surface and hardware are rated for the weight of the reel and the loads it will carry. Inspect the GFCI receptacle for proper function after installation before returning the circuit to service.

Technical Specifications

• Cord Capacity: 30 ft
• Drive Type: Spring
• Disc Material: Steel
• Base Material: 12-gauge Steel
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 19 pounds
• UPC: 674255924451

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3012-F
