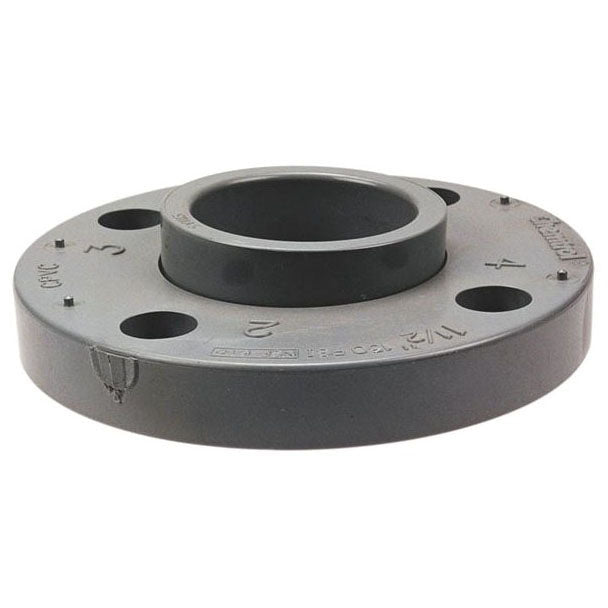

CORZAN 9854030 3 CPVC Schedule 80 Socket X Socket Van Stone Flange

Product Description

The CORZAN 9854030 is a three-inch CPVC schedule eighty socket x socket van stone flange. This fitting is designed for socket weld connections, making it suitable for various plumbing tasks.

• Compatible with ANSI/NSF 14/61 and ANSI B16.5 standards.
• Designed for pressure ratings up to 2000 PSI at seventy-three degrees Fahrenheit.
• Made from light gray CPVC material, ensuring resistance to harsh chemicals.

Product Highlights

This flange fitting is versatile and ideal for chemical processing, industrial plating, and chilled water distribution.

Product Information

Standard Information

• End Connection: Female Socket
• Fitting Type: Flange

Technical Specifications

• Nominal Pipe Size: 3 inches
• Flange Outside Diameter: 7.48 inches
• Schedule: 80
• S Thickness: 1.04 inches
• Material: CPVC
• Material Specification: ASTM F1970
• Process: Injection Molded
• Pressure Rating: 2000 PSI at 73 Deg F
• Temperature Rating: 210 Deg F
• Application: Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Line, Chemical Drainage, Waste Water Treatment System
