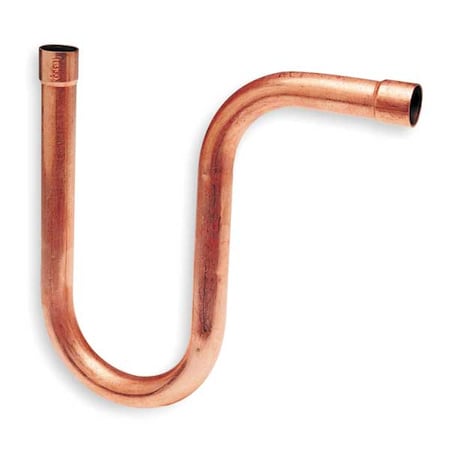

Nibco 698-58 Suction Line P-Trap Wrot Copper C x C 5/8 in

Product Description

The Nibco 698-58 Suction Line P-Trap is designed for air, gases, and potable water applications. Made from wrot copper, this fitting features a Cup x Cup connection type.

• Fitting side A and B connection type: Cup
• Maximum operating pressure: 631 psi at 100 degrees Fahrenheit
• Maximum operating temperature: 400 degrees Fahrenheit

Product Highlights

This P-trap is ideal for use with 20 feet of riser pipe, refrigeration compressors, and ACR air conditioning systems. It offers reliable performance with a max pressure rating of 631 psi and a temperature range from -20 to 400 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Nibco
• MPN: 698-58
• Product Name: Suction Line P-Trap

Technical Specifications

• Material Grade: C12200
• Fitting Material: Wrot Copper
• Basic Fitting Shape: Trap
• Specific Fitting Shape: P-Trap
• Connection Type: C x C
• Copper Tube Size: 5/8 inch x 5/8 inch
• Fitting Side A Tube Outer Diameter: 3/4 inch
• Fitting Side B Tube Outer Diameter: 3/4 inch
• For Tube Outside Diameter: 3/4 inch
• Maximum Operating Pressure: 631 psi at 100 degrees Fahrenheit
• Maximum Operating Temperature: 400 degrees Fahrenheit
• Minimum Operating Temperature: 20 degrees Fahrenheit
• Standards: ASME/ANSI B16.22
• Country of Origin: United States
