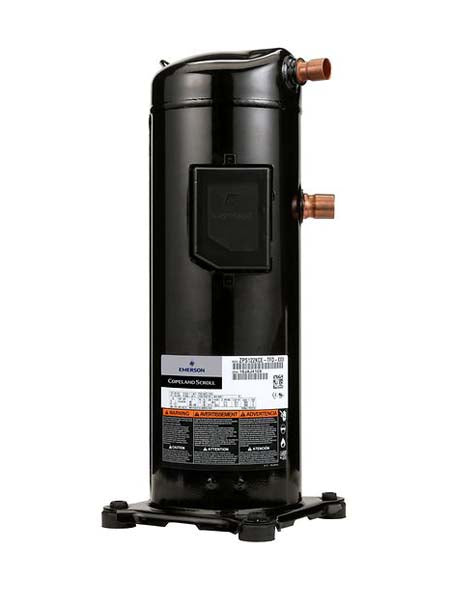

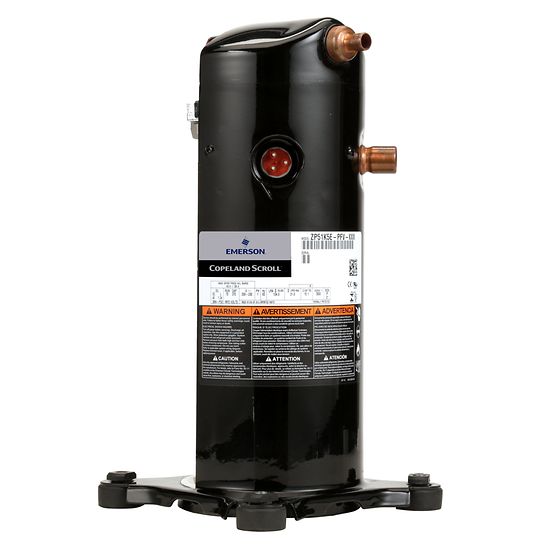

Copeland ZR48K5E-PFJ-800 Hermetic Scroll Compressor

Product Description

The Copeland ZR48K5E-PFJ-800 is a hermetic scroll compressor designed specifically for HVACR applications. This compressor utilizes advanced scroll technology, ensuring efficient operation while handling R-407C refrigerant and polyol ester (POE) oil. It is optimized for residential and light commercial settings, providing reliable performance.

• Compressor housing is hermetic
• Designed for use with Polyolester (POE) oil
• Suitable for R-407C refrigerant

Product Highlights

Efficient hermetic design with fewer moving parts for quieter operation.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: ZR48K5E-PFJ-800

Technical Specifications

• Compressor Type: Scroll
• Voltage: 208-230 VAC
• Phase: Single
• Refrigerant: R-407C
• Oil Type: Polyolester (POE)
• BTU Output: 48,200
• Amperage: 13.1-19
• Locked Rotor Amps (LRA): 137
• Oil Charge Initial (oz.): 42
• Suction Line Size (OD): 7/8
• Discharge Connection Size (OD): 1/2
• Weight: 70.9
• Height: 16.94
• Length: 9.69
• Width: 9.69
• Mounting Dimensions: 7.5 X 7.5 X 17.17
• Cycle/Hertz: 50/60 Hz
• Displacement: 3.87 (in³/Rev)
• Sound Level (dBA): 70-75
• Approvals: UL Recognized
• Evaporating Temperature: 45°F
• Return Gas Temperature: 65°F
• Condensing Temperature: 130°F
• Liquid Temperature: 115°F
• Rated Load Amps (RLA): 21.8, 24.3
• Mass Flow (lbs/hr): 671 lbs./hr.; 762 lbs./hr.
