COPELAND WR-50M56X-843 Universal Furnace Control

Product Description

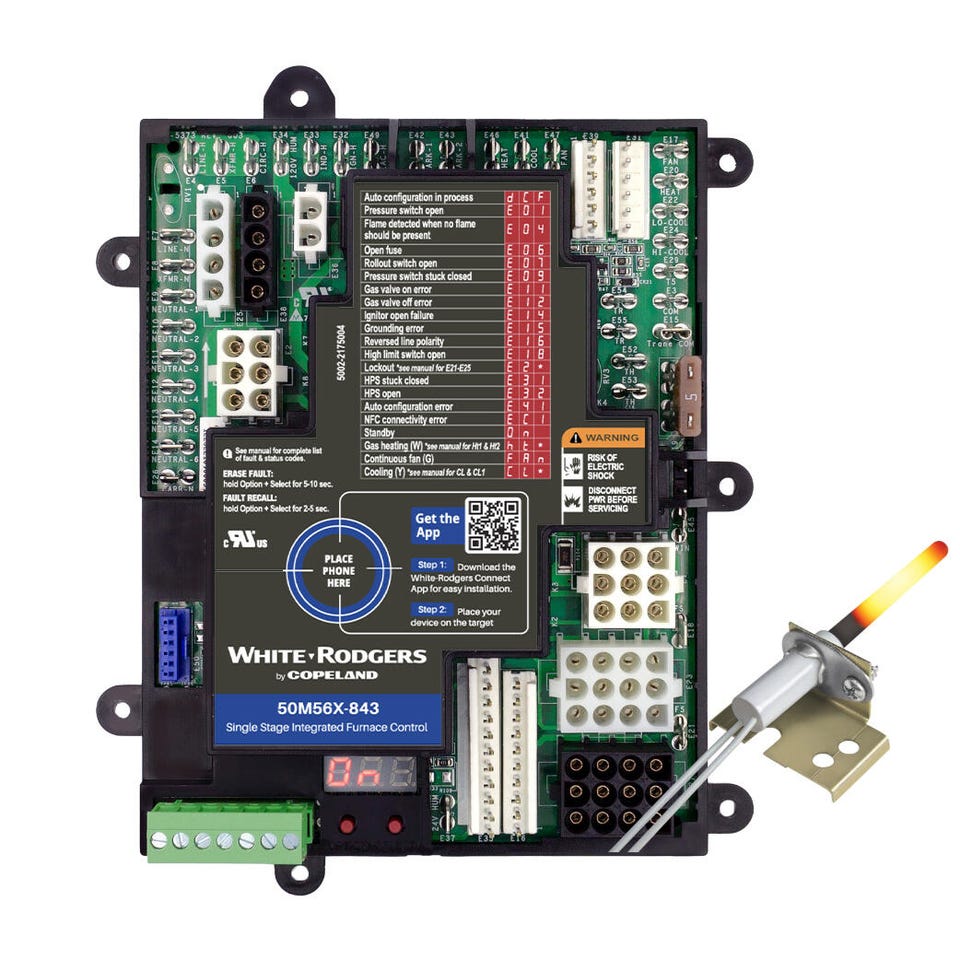

The COPELAND WR-50M56X-843 is a universal furnace control. It serves as a single-stage hot surface ignition integrated control for PSC and ECMx blower motors. This control is adaptable to both blower motor types.

• Includes a 120V nitride ignitor.
• Configurable for over 550 part numbers.

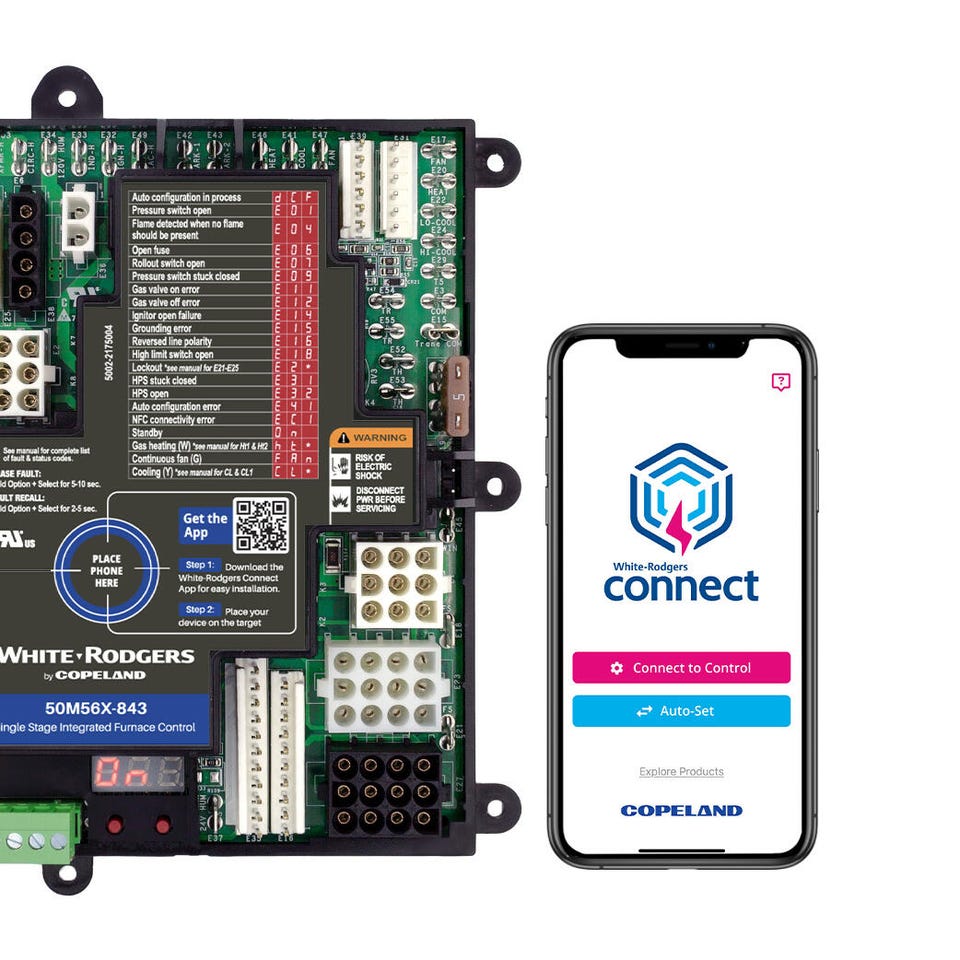

• Utilizes the White-Rodgers Connect App for configuration and diagnostics.

Product Highlights

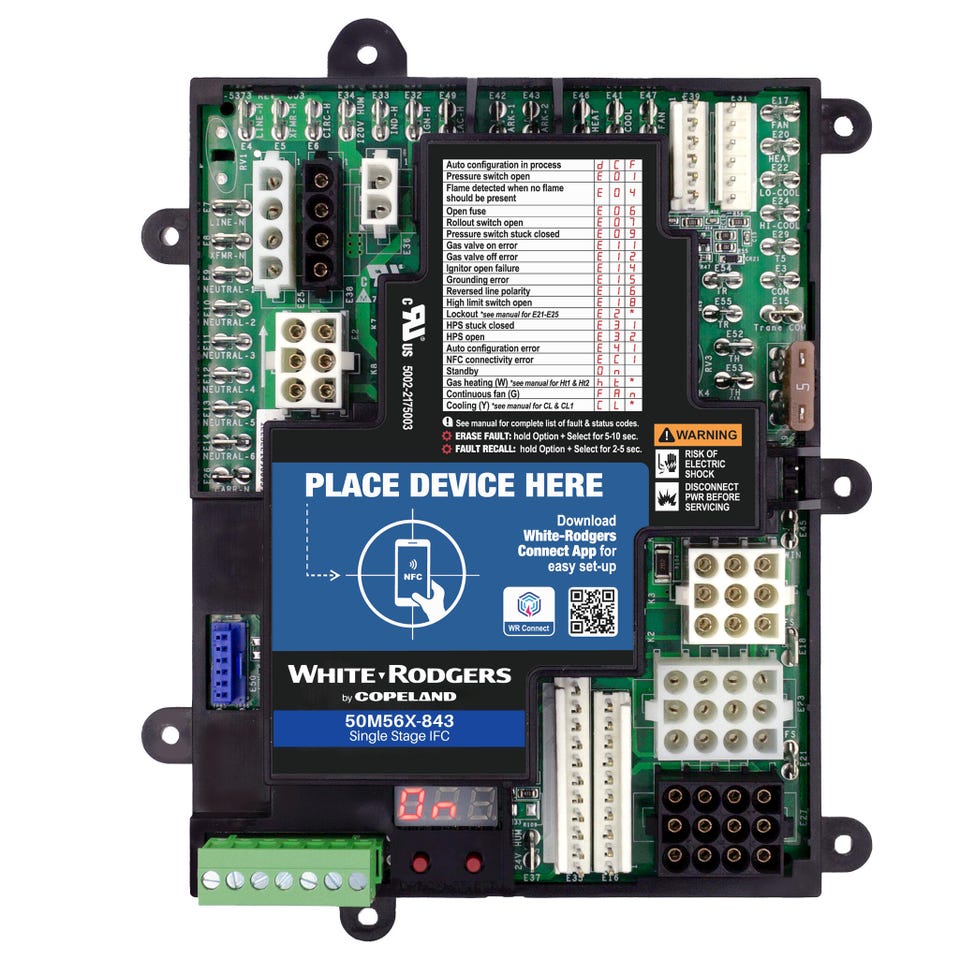

This model features OEM harness detection and a thermostat connector block for easy wiring. The seven-segment LED display provides clear visibility of system status. It operates effectively in temperature ranges from negative forty to one hundred seventy-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: COPELAND
• Part Number: WR-50M56X-843

Technical Specifications

• Ambient Operating Humidity: 5 to 93% RH
• Compatibility: Twinning
• Connection: Thermostat Inputs R, C, W, Y/Y1, Y2, G, DHUM
• Ignition Type: HSI
• Electrical Rating: 25 Vac, 60Hz
• Operating Temperature Range: -40 to 175 degrees Fahrenheit
• Stages: Single Stage
