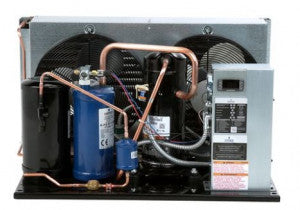

Copeland FFAP-A40Z-CFV-075 Condensing Unit

Product Description

The Copeland FFAP-A40Z-CFV-075 is a reliable air-cooled condensing unit with a scroll compressor suitable for low to medium temperature applications. It operates using 208-230V single-phase 60Hz power. This unit comes equipped with features essential for efficient operation.

• Four horsepower compressor.
• Electronic unit controller for improved management.
• Includes necessary system protections and troubleshooting diagnostics.

Product Highlights

The condensing unit supports multiple refrigerants including R134a, R404A, R407A, R407C, R448A and R449A.

Product Information

Standard Information

• Brand: Copeland
• MPN: FFAP-A40Z-CFV-075

Technical Specifications

• Application: Low Temp, Medium Temp
• Compressor Model: ZS26KAE-PFV-118
• Horsepower: 4
• Voltage: 208-230V
• Phase: Single
• Frequency: 60Hz
• Refrigerants Supported: R134a, R404A, R407A, R407C, R448A, R449A
• Oil Type: POE
• MCA: 33.1 Amps
• Maximum Fuse / Breaker Size: 50 Amps
• Receiver Included: Yes
• Liquid Line Size: 1/2 ODF
• Suction Line Size: 1 1/8 ODF
• Length: 44.1 inches
• Width: 28.2 inches
• Height: 27.4 inches
• Shipping Weight: 247 lbs
• Accumulator Included: Yes
• Drier Included: Yes
• Sight Glass Included: Yes
• Fan Guard Included: Yes
• Electrical Connection: BX Conduit
• Pressure Control: Dual
• UL Rating: UL Listed
