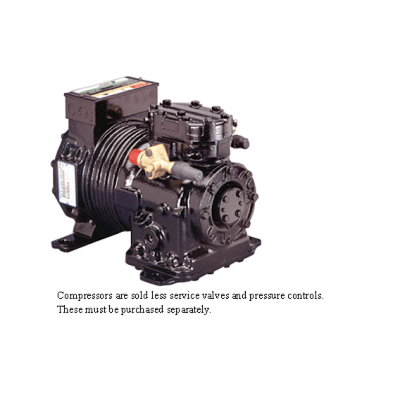

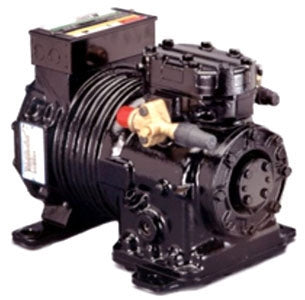

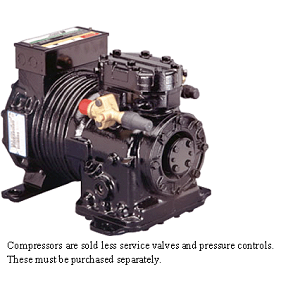

Copeland EAVB-021E-CAV-800 Aftermarket Semi-Hermetic Compressor 2 HP

Product Description

The COPELAND EAVB-021E-CAV-800 is an aftermarket semi-hermetic compressor with conventional Copelametc Compressors. It is designed for commercial refrigeration, air conditioning, and heat pump applications. The compressor features rugged, compact construction for heavy-duty usage and is easily accessible for field maintenance. It operates on 208-230 VAC at 60 Hz.

• Wide selection Range
• Proven Copeland Dependability
• Standard Replacement Compressors Include Oil Charge and Complete Motor Protection

Product Highlights

This semi-hermetic compressor is suitable for various refrigeration and air conditioning needs, offering durability and ease of maintenance.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: EAVB-021E-CAV-800
• Country of Origin: USA

Technical Specifications

• Amps: 7.6-9.2
• Brand: Copeland
• BTU Output: 6820
• Compressor Housing: Semi-Hermetic
• Compressor Type: Reciprocating
• Cycle/Hertz: 60 Hz
• Discharge Connection Type: Flare
• Evaporating Temperature: -25°F, -40°F (-40°C)
• Locked Rotor Amps (LRA): 102
• Mass Flow (lbs/hr): 75 lbs./hr.; 135 lbs/hr
• Maximum Voltage: 230 VAC
• Oil Charge Initial (oz.): 60
• Oil Type: Mineral (MO), Polyolester (POE)
• OPT Code: EAVB021ECAV800
• Overload Type: Internal
• Phase: Single
• Prop 65: Yes
• Protection: External Inherent Protection
• Rated Load Amps (RLA): 14.7
• Refrigerant: R-507
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 7/8"
• UL Listed: No
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 14.7
• Country of Origin: USA
• Horsepower: 2 HP
• Applicable Standard: UL
• Catalog Number: EAVB-021E-CAV-800
• Item: Compressor, Semi-Hermetic
• Used On Item: Low Temperature Refrigeration
• BTU: 6820 BTU
• Type: Low Temperature
• EER Rating: 4
• Manufacturer: Emerson Electric
• Power Rating: 1720 W
• Run Capacitor: 014-0064-14
• Voltage Rating: 208/230 V, 50/60 Hz, 1 Phase
• Amperage Rating: 8.3 A
• Start Capacitor: 014-0006-13
• Cooling Capacity: 6820 BtuH
• Refrigerant Type: R-404A, HCFC
• Suction Line Size: 7/8 Inch Sweat
• Discharge Line Size: 1/2 Inch Flared
• Application: Refrigeration
• Electrical: 208/230-1-60
• Frequency: 60Hz
• Liquid Line Size: 1/2"F
• Temperature Rating: UL Low
• Series-Brand: Copelametic
• HP/Ton: 2
• Volts: 208/230
