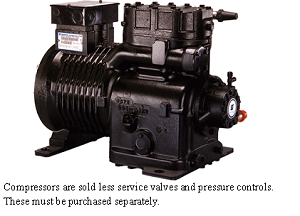

Copeland 9RS3-076A-TFC-800 Compressor 7-1/2 HP 208/230-3

Product Description

The Copeland 9RS3-076A-TFC-800 is a refrigerant-cooled semi-hermetic compressor designed for commercial refrigeration. This model is rated at seven and a half horsepower and operates efficiently at 208/230 volts, 3-phase power. It is appropriate for various refrigeration applications and is suited for both medium and low-temperature conditions.

• Ideal for refrigeration applications with R-12 and R-502 refrigerants.
• Provides high BTU output with 56,300 BTUH at medium temperatures.
• Includes a robust design with inherent motor protection for reliable operation.

Product Highlights

This compressor is designed for both commercial and industrial refrigeration needs, ensuring consistent performance under demanding conditions.

Product Information

Standard Information

• Brand: Copeland
• MPN: 9RS3-076A-TFC-800

Technical Specifications

• Type: Refrigerant-Cooled Semi-Hermetic
• Horsepower: 7-1/2 HP
• Voltage: 208/230V
• Phase: Three
• Frequency: 60Hz
• Refrigerant: R-12, R-502
• Liquid Line Size: 1-1/8 inches
• Suction Line Size: 1-3/8 inches
• Mounting Dimensions: 15 inches x 12 inches
• Body Type: 9R
• Size: 25.72 inches x 15.06 inches x 17.59 inches
