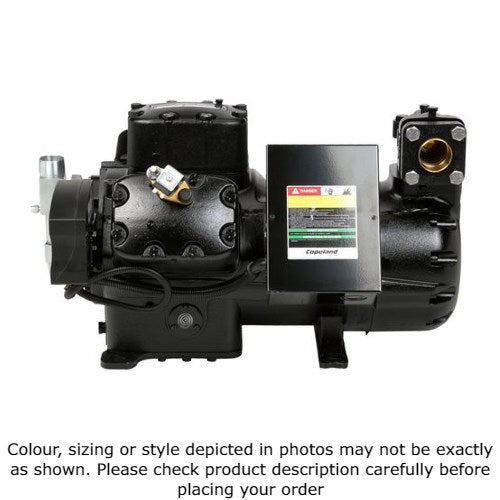

COPELAND 6DS3F11ME-TSK-899 Semi-Hermetic Compressor

Product Description

The COPELAND 6DS3F11ME-TSK-899 is a semi-hermetic compressor suitable for refrigeration applications. It features a robust discus valve design for efficient operation. This compressor is compatible with R-404A refrigerant and operates using polyolester (POE) oil for lubrication. It is engineered for three-phase power systems and includes internal thermal overload protection for enhanced safety.

• Compressor Type: Semi-Hermetic Reciprocating
• Refrigerant Compatibility: R-404A, R-407A, R-407C, R-407F
• Internal Thermal Protection: Yes

Product Highlights

The compressor is ideal for low-temperature applications, providing reliable performance where needed.

Product Information

Standard Information

• Brand: Copeland
• MPN: 6DS3F11ME-TSK-899

Technical Specifications

• Compressor Type: Reciprocating
• Compressor Housing: Semi-Hermetic
• Application Temperature: Low Temperature
• Refrigerant: R-404A, R407A, R407C, R407F
• Voltage: 460 VAC
• Phase: Three
• Hertz: 60 Hz
• Oil Type: Polyolester (POE)
• Motor Overload Protection: Internal Thermal
• Suction Line Size (OD): 2 1/8 inches
• Discharge Connection Size (OD): 1 3/8 inches
• Mounting Length: 15 inches
• Mounting Width: 12 inches
• Mounting Height: 29.19 inches
• Weight: 545 lbs
• Length: 29.44 inches
• Width: 29.44 inches
• Height: 29.19 inches
• Rated Load Amps (RLA): 42.9, 47.8, 85.8, 95.6
• Minimum Circuit Ampacity (MCA): 34.6
• Evaporating Temperature: -25°F, -40°F
• R404A Capacity (Btu/Hr) @ -25 F Evaporator Temperature: 105,000
• R404A Capacity (Btu/Hr) @ -40 F Evaporator Temperature: 65,000
• Initial Oil Charge: 255 oz
• Oil Recharge: 245 oz
