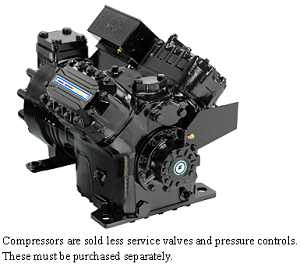

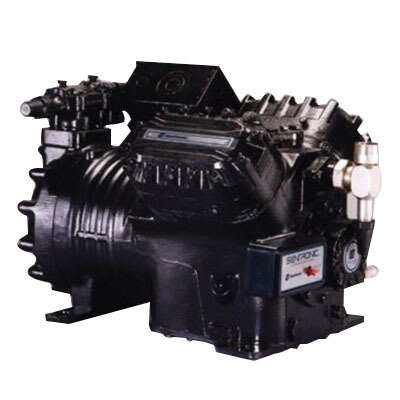

Copeland 4DK3R22ME-TSK-800 Semi-Hermetic Discus Compressor 25 HP 208/230/460/3 POE Oil

Product Description

The Copeland 4DK3R22ME-TSK-800 is a semi-hermetic compressor designed for commercial refrigeration applications. This compressor supports multiple refrigerants including R-404A and R-22 and operates at 25 horsepower. It is built for both medium and low-temperature refrigeration conditions.

• Capacity ratings of up to 262,000 BTUH.
• Three-phase operation with voltage options of 208, 230, or 460 volts.
• Designed for easy installation with comprehensive specifications.

Product Highlights

Features excellent efficiency and reliability for refrigeration needs. Ideal for applications requiring varying refrigerants.

Product Information

Standard Information

• Brand: Copeland
• MPN: 4DK3R22ME-TSK-800

Technical Specifications

• Horsepower: 25 HP
• Voltage: 208/230/460V
• Phase: Three
• Frequency: 60Hz
• Liquid Line Size: 1-3/8 inches
• Suction Line Size: 2-1/8 inches
• Mounting Dimensions: 15 x 12 inches
• Dimensions: 26.28 x 20.5 x 18.78 inches
• Refrigerants: R-404A, R-22, R-502
