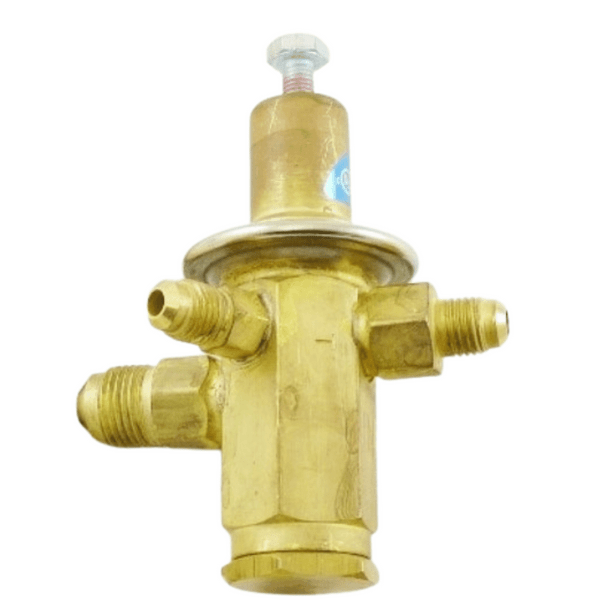

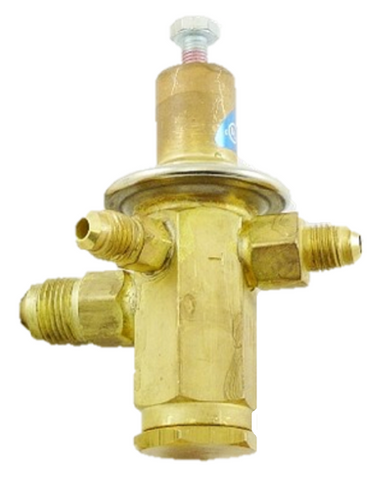

Copeland 047280 Comfort Control Automatic Thermal Expansion Valve TXV

Product Description

The Copeland Comfort Control (Alco) 047280 is an automatic thermal expansion valve (TXV) designed for use in HVAC systems. This valve effectively manages refrigerant flow to maintain optimal system performance. Key features of the valve include a straight body design and an external equalizer that simplifies installation.

• Valve type: Automatic Thermal Expansion Valve (TXV)
• Connection type: SAE Flare
• Superheat adjustment range: 0-80 psig

Product Highlights

The Copeland 047280 is suitable for refrigeration and HVAC applications, providing reliable performance in regulating refrigerant flow.

Product Information

Standard Information

• Brand: Copeland Comfort Control (Alco)
• Part Number: 047280

Technical Specifications

• Valve Type: Automatic Thermal Expansion Valve (TXV)
• Connection Size: 1/4 x 3/8 SAE Flare
• Superheat Adjustment Range: 0-80 psig
• Factory Setting: 40 psig
• Port Diameter: 0.05 inches
• Body Style: Straight Body
