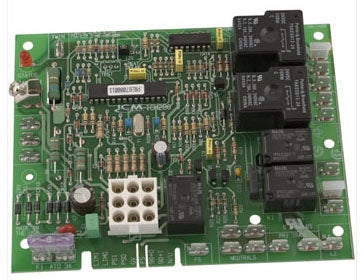

ICM Controls ICM280 Furnace Control Board 98 to 132 VAC 60 Hz, 5 A at 120 VAC

Product Description

The ICM280 by ICM Controls is a reliable furnace control board designed for use with various furnace models. This microprocessor-based control board operates at a voltage of 98 to 132 VAC and is suitable for a 60 Hz frequency. Key specifications include a current rating of five amps at 120 VAC. The compact size (measuring four and three-fourths inches in length and five and three-fourths inches in width) ensures a straightforward installation process.

• Microprocessor-based design for precise timing and control.
• Twinning compatible with another ICM280 board.
• Works with all 24 VAC thermostats for easy integration.

Product Highlights

The ICM280 features advanced diagnostics, allowing for simple troubleshooting with the LED status indicator for fault conditions.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM280

Technical Specifications

• Voltage Rating: 98 to 132 VAC
• Frequency Rating: 60 Hz
• Current Rating: 5 A at 120 VAC (Igniter)
• Overall Dimensions: 4.75 inches (L) x 5.75 inches (W) x 1 inch (H)
• Ignition Trial Time: 7 seconds
• Operating Temperature Rating: -40 to 176 degrees Fahrenheit
• Humidity Rating: 5 to 95 percent RH (non-condensing)
• Diagnostic Features: LED fault code indicator
• Applicable Standards: UL listed
