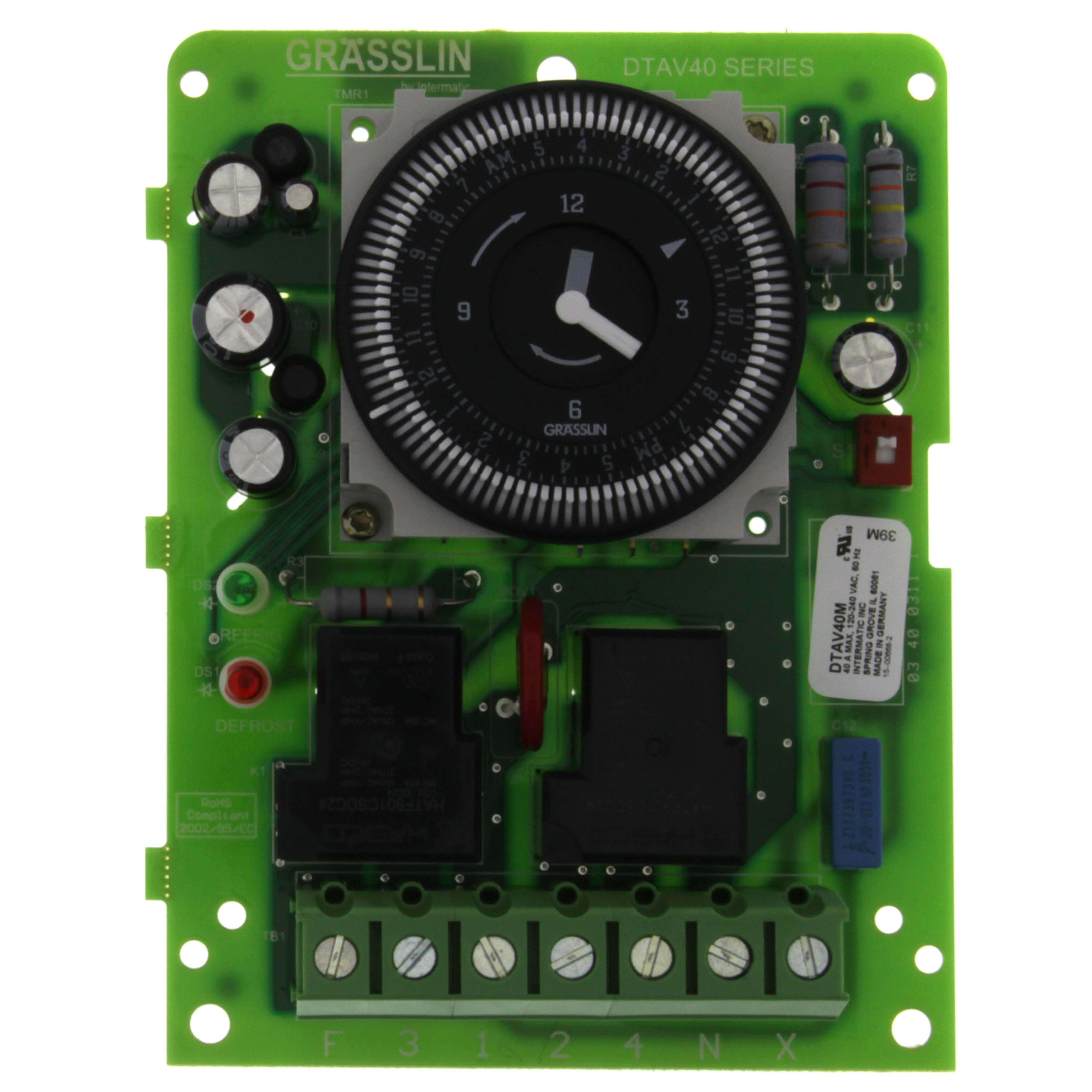

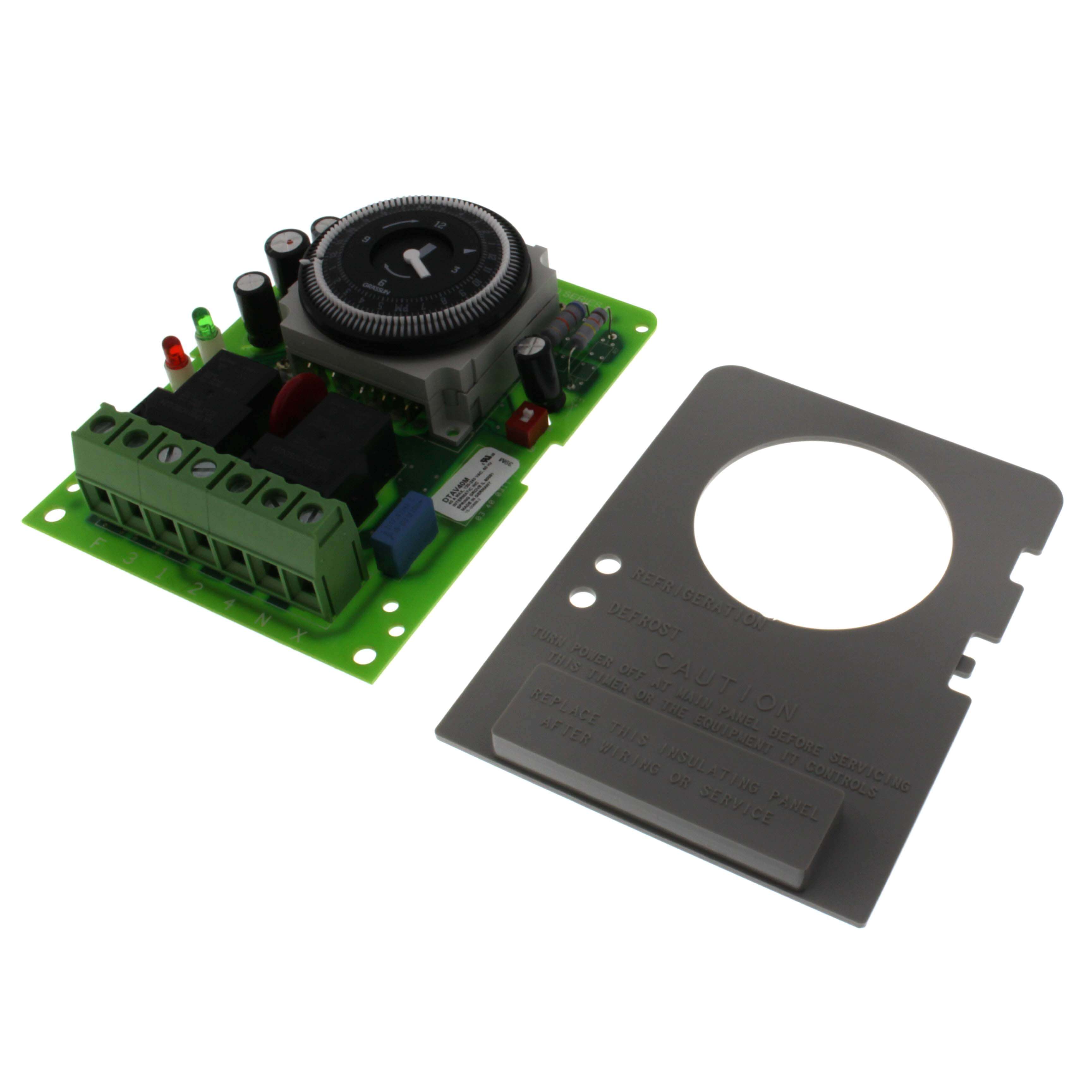

Intermatic DTAV40M DEFROST TIMER,MECHAN 2 HP (120-240V)

Product Description

Intermatic DTAV40M is an auto-voltage defrost timer. This timer operates at 120 to 240 VAC and has a 40 Amp rating. It features a 2 horsepower capacity. The timer is suitable for various defrost systems, including electric and hot gas systems.

• Programmable defrost time from 15 minutes to 23 hours 45 minutes.

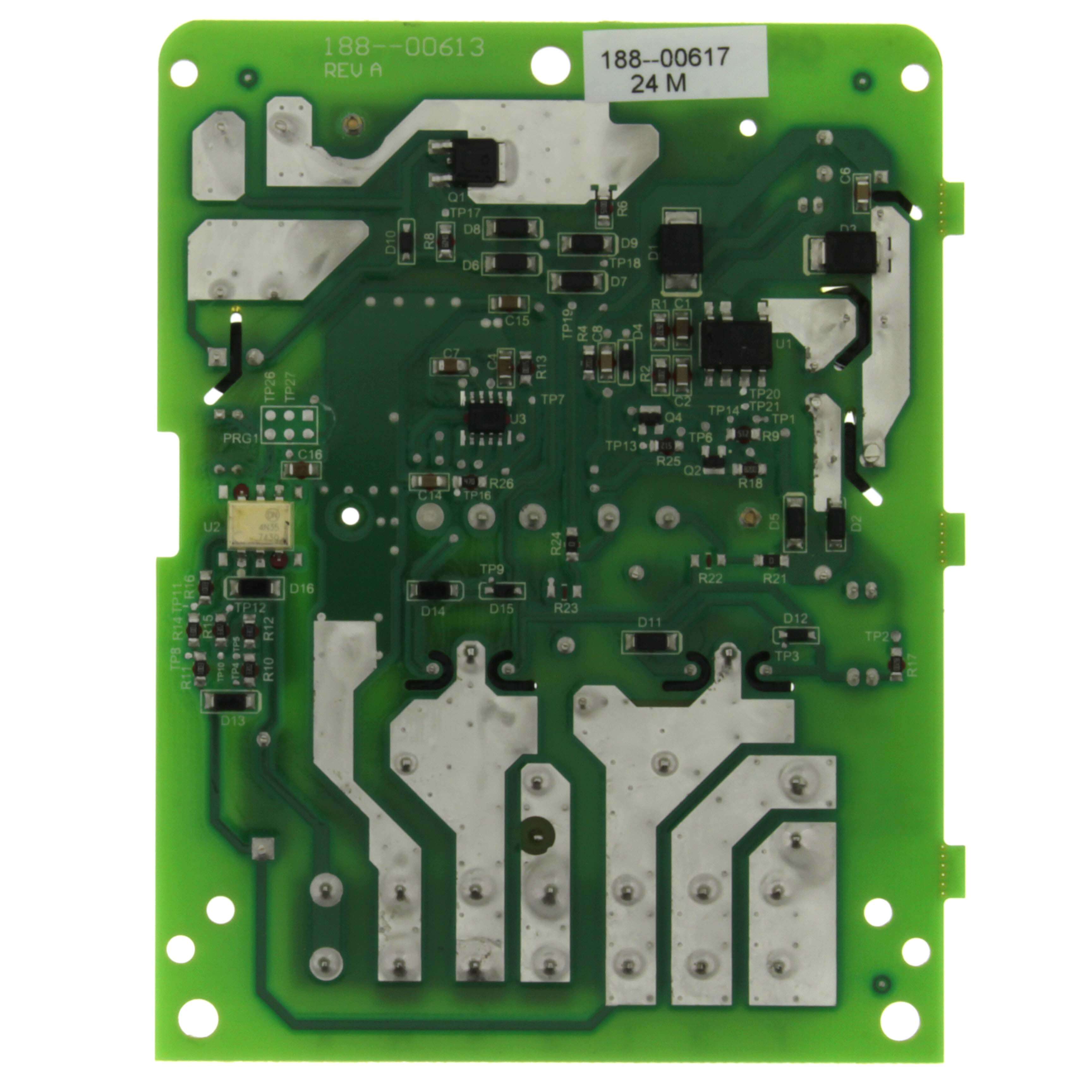

• Moisture-resistant conformal-coated circuit board.
• Real-time clock for easy setting and operation.

Product Highlights

The Intermatic DTAV40M is designed for both commercial and industrial applications. It helps to prevent frost build-up in refrigeration systems, ensuring optimal performance and energy efficiency.

Product Information

Standard Information

• Manufacturer: Intermatic
• UPC: 078275127678

Technical Specifications

• MPN: DTAV40M
• Amperage Rating: 40 A
• Horsepower: 1 hp, 2 hp
• Voltage Rating: 120 to 240 VAC
• Operation Mode: 23 hr 45 min
• Defrost Time: 15 min to 23 hr 45 min
• Contact Form: 1SPST-1DPST
• Dimensions: 8.88 in H x 6.61 in W x 3 in D
• Enclosure Type: NEMA 1
• Mounting Type: Wall
• Temperature Rating: -40 to 104 deg F
• Electrical Connections: Box Lug
