Command Access Technologies MLRK1-VD22 Motorized Latch Retraction Kit for Von Duprin 22 Series Exit Device

Product Description

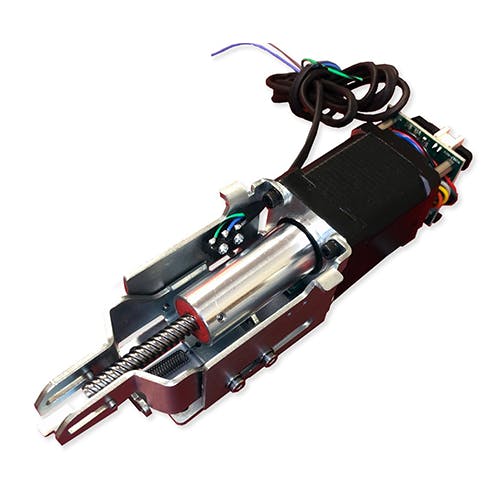

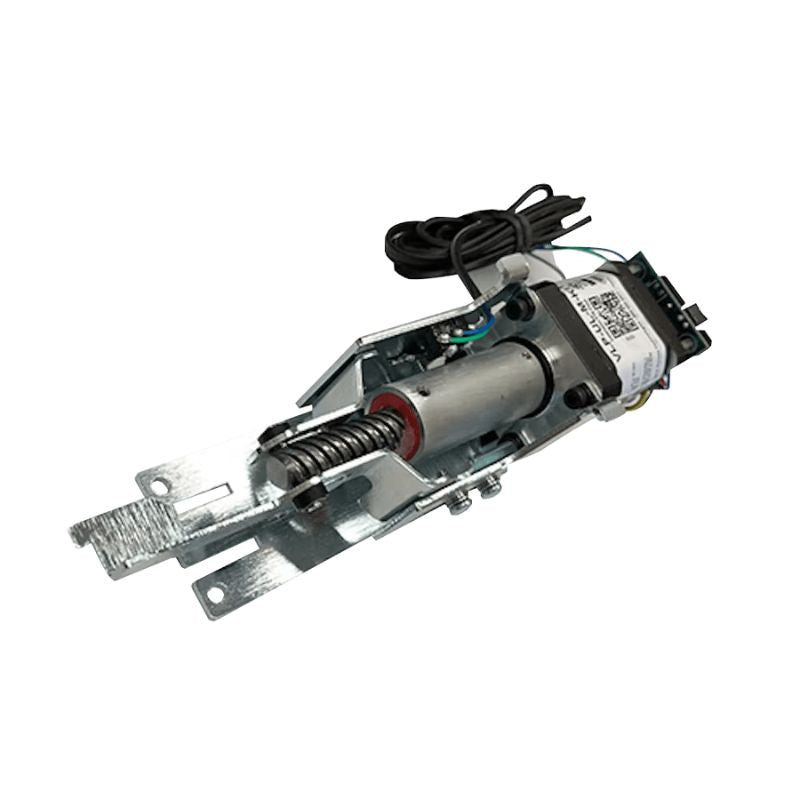

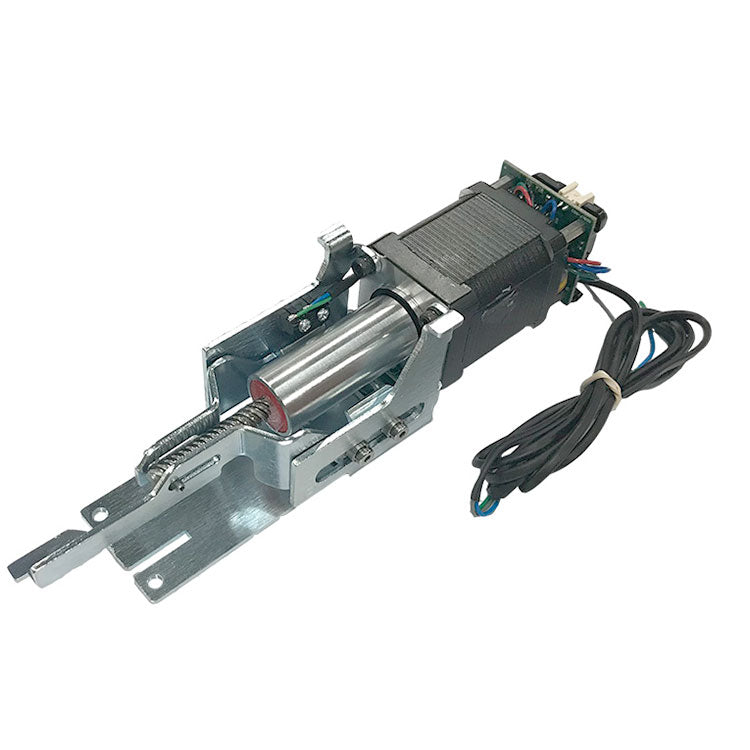

The Command Access Technologies MLRK1-VD22 is a solution to convert mechanical Von Duprin 22 series exit devices into electronic latch pullback systems. This retrofit kit maintains UL listings and is backed by a three-year warranty. Its Push to Set (PTS) feature allows for simple adjustments and includes a built-in Request to Exit (REX) switch. The MM5 module is designed for energy efficiency in demanding environments.

• Motor-driven latch retraction
• Simple upgrade from mechanical to electronic
• UL Listed for safety and reliability

Product Highlights

The MLRK1-VD22 is designed for ease of use and installation, ensuring compatibility with Von Duprin's 22 series exit devices.

Product Information

Standard Information

• Brand: Command Access Technologies
• MPN: MLRK1-VD22

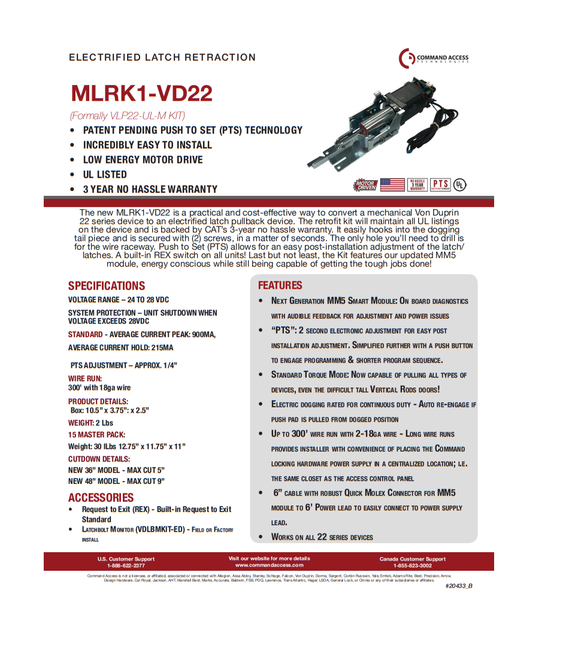

Technical Specifications

• Voltage Range: 24 to 28 VDC
• System Protection: Unit shuts down when voltage exceeds 28 VDC
• Average Current Peak: 900 mA
• Average Current Hold: 215 mA
• PTS Adjustment: Approximately one fourth inch
• Wire Run: 300 feet with 18 gauge wire
• Cutdown Details: 36/48 inch with 6.5 inch filler plate needed
• Request to Exit (REX): Built-in to all units
• Function: Electric latch retraction
• Input Voltage: 24 volts DC intermittent duty
• Locking State: Fail-secure (power to unlock)
• Product Type: Exit device accessory
• Sales Category: Exit device accessory
• Operating Voltage: 24 VDC
• Application: Von Duprin 22 series
• Wireless: No
• Model: Command Access MLRK1-VD22
• Manufacturer: Command Access Technologies
• SKU: MLRK1-VD22
• Installation: Commercial
