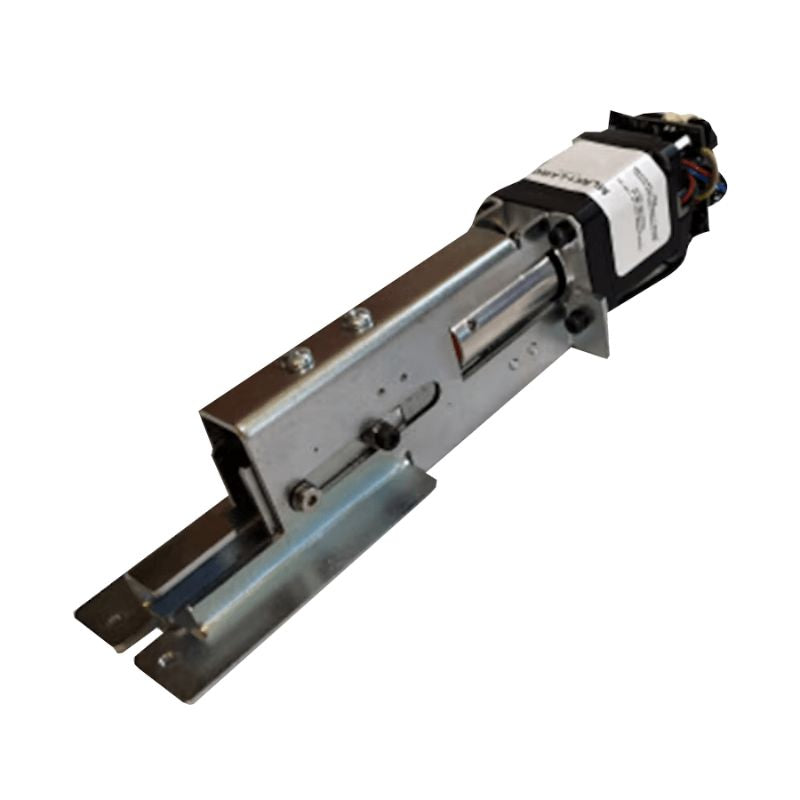

Command Access Technologies MLRK1-HAG Motorized Latch Retraction Kit

Product Description

The Command Access Technologies MLRK1-HAG is designed to upgrade Hager 4500, PDQ 6200, Stanley QED, LSDA 9000 Series Exit Devices to motor-driven latch retraction. This kit is a practical solution for field upgrades, maintaining the UL listing and equipped with PTS technology for easy adjustments after installation.

• Motor-driven latch retraction
• Cost-effective upgrade
• UL Listed

Product Highlights

The MLRK1-HAG kit enhances security and convenience, allowing seamless operation of exit devices.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• Unit of Measure: Each

Technical Specifications

• Voltage Range: 24V +/- 10%
• System Protection: Unit shuts down when voltage exceeds 28VDC
• Average Current Peak: 900mA
• Average Current Hold: 215mA
• PTS Adjustment: Approx. 1/4 inches
• Wire Run: 300 feet with 18 gauge wire
• Cutdown Details: For 36 inches and 48 inches, minimum 8.5 inches of filler plate needed
• Limited Warranty: 3 Years
• Application: Hager 4500 Series Exit Device
• Operating Voltage: 24 VDC
• Wireless: No
