Command Access Technologies MLRK1-DTX Motorized Latch Retraction Kit for the Detex Advantex & Value Series 24VDC

Product Description

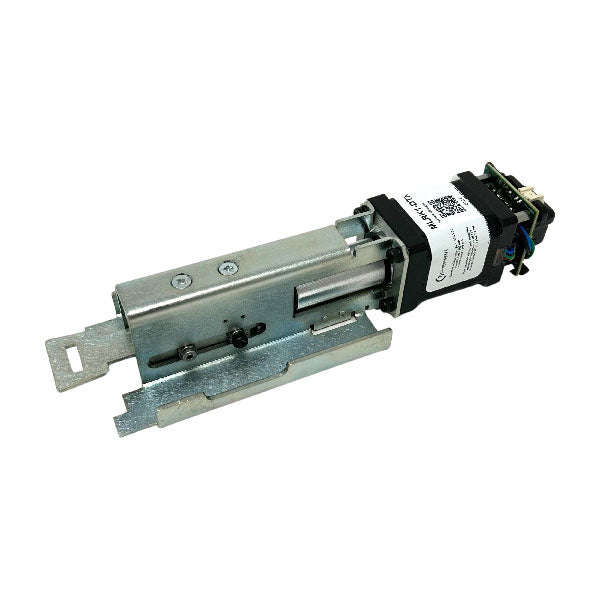

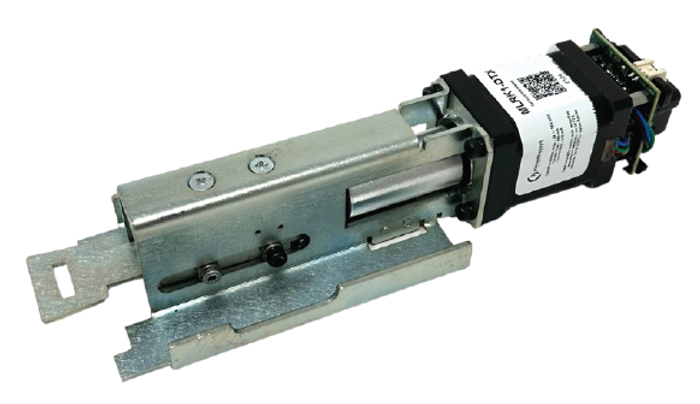

The Command Access Technologies MLRK1-DTX is a motorized latch retraction kit designed specifically for Detex Advantex and Value series exit devices. This field-installable kit simplifies installation and operation, providing efficient functionality.

• Field-installable motorized latch retraction kit
• Compatible with Detex Advantex and Value series exit devices
• 1-touch PTS technology for easy post-installation adjustments

Product Highlights

This kit offers a durable assembly that maximizes pulling force and is rated for continuous use. The design incorporates an eight-inch cable with a Molex connector for straightforward integration.

Product Information

Standard Information

• Type: Exit device accessory
• Warranty: 3 Year Warranty

Technical Specifications

• Voltage range: 24VDC +/- 10%
• Average latch retraction current: 900 MA
• Average holding current: 215 MA
• Wire gauge: Minimum 18 gauge
• Direct wire run: No relays or access control units required
• Wire run: 300 feet with 2-18 gauge wire
• Cutdown details: 36 inches - 0 inches, 48 inches - 7 inches
• Function: Electric latch retraction
• Input voltage: 24 volts DC intermittent duty
• Locking state: Fail-secure (power to unlock)
• Product voltage: 24 VDC
• Alternate part number: 206452
