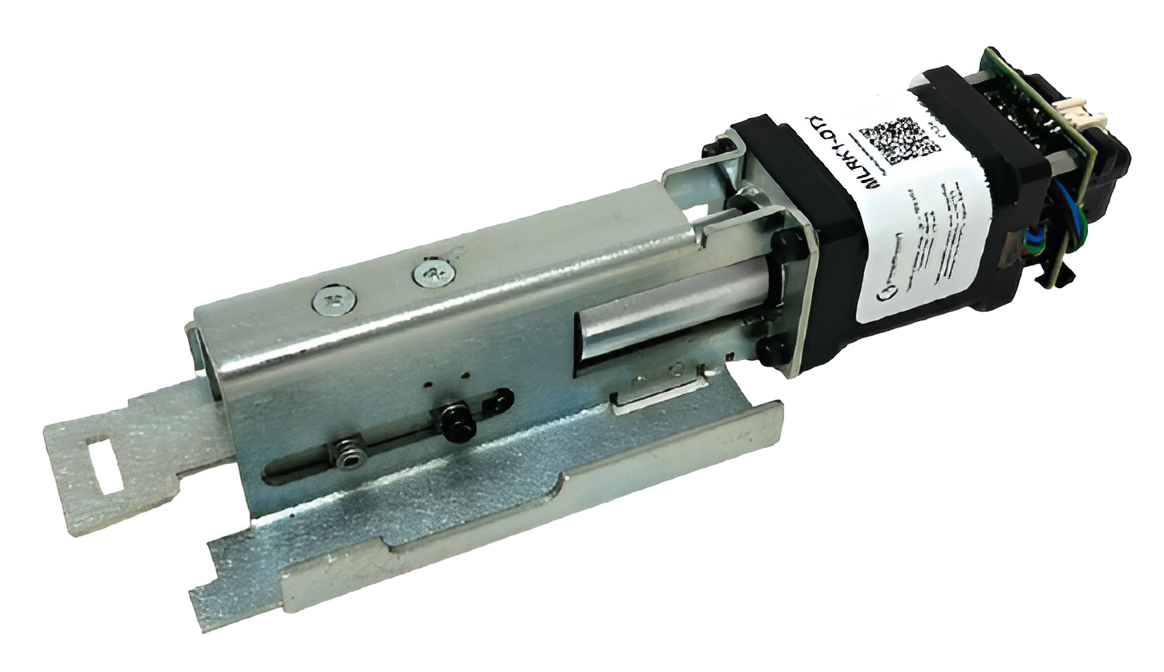

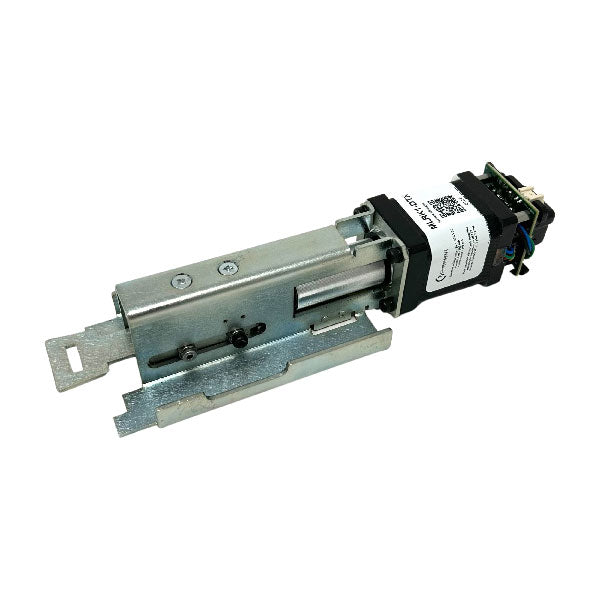

Command Access Technologies MLRK1-DTX Motorized Latch Retraction Kit for Detex Advantex & Value Series Exit Devices

Product Description

The Command Access Technologies MLRK1-DTX is a solution designed for Detex Advantex and Value series exit devices. This motorized latch retraction kit is easy to install in the field and requires only a raceway hole for setup.

• Cost-effective solution for upgrading exit devices.
• Field-installable motorized kit for simple implementation.
• Custom assembly designed to maximize pulling force.

Product Highlights

This kit simplifies access control by allowing latch retraction with minimal effort. The optional built-in Request to Exit (REX) switch enhances functionality.

Product Information

Standard Information

• Brand: Command Access
• Model: MLRK1-DTX, MLRK1-DTX-REX (with Request to Exit)

Technical Specifications

• Voltage Range: 24VDC +/- 10%
• Average Latch Retraction Current: 900 MA
• Average Holding Current: 215 MA
• Wire Gauge: Minimum 18 Gauge
• Direct Wire Run: No Relays or Access Control Units In-Between Power Supply & Module
• Wire Run: 300 ohms with 2-18ga wire
• Part Type: Electric Latch Retraction Kit
• Compatible Devices: Detex Advantex & Value Series Exit Devices
• Warranty: 3 Year
• Commercial/Residential: Commercial
• Electronic: Yes
• Product Category: Electronic Access Controls
