Command Access Technologies ETH8WH4545-630CH-BB91 Energy Transfer Hinge 4-1/2 In x 4-1/2 In

Product Description

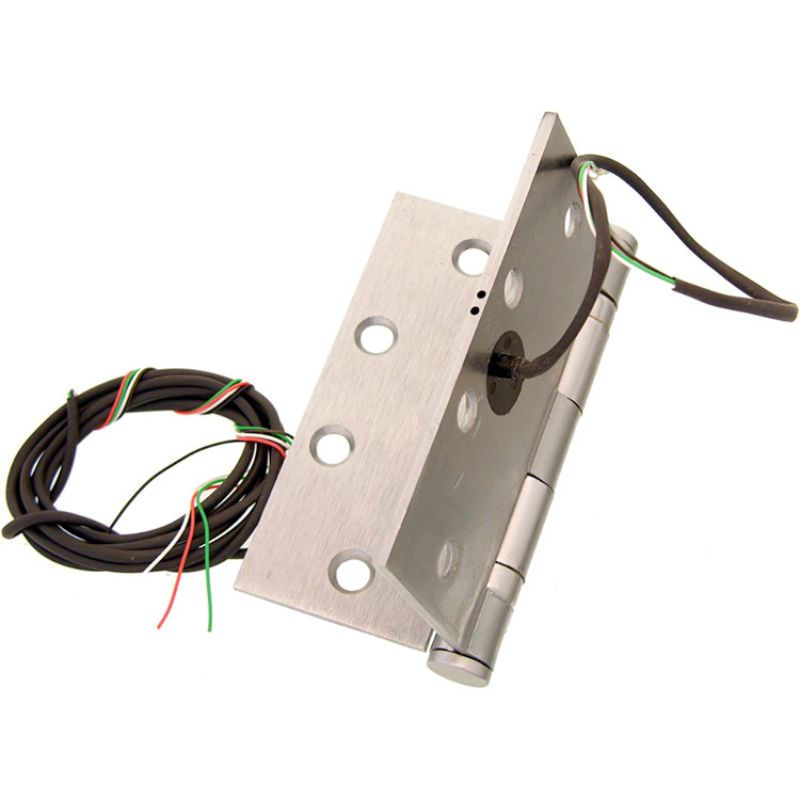

The Command Access Technologies ETH8WH4545-630CH-BB91 energy transfer hinge allows for seamless low-voltage power transfer from the hinge jamb to the lockset without visible wiring. With a measurement of four and one-half inches by four and one-half inches, this hinge is built with five knuckles and an eight-wire setup. These hinges are commonly used with electric mortise and cylindrical locks.

• Energy transfer capability
• Satin stainless steel construction
• Standard weight and removable pin

Product Highlights

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: ETH8W4545 630 CH-BB91

Technical Specifications

• Installation: Commercial
• Base Material: Steel
• Hinge Type: Full Mortise
• Knuckles: 5
• Pin Type: Non-Removable
• Tip Style: Standard
• Weight: Standard Weight
• Height: 4-1/2 In.
• Width: 4-1/2 In.
• Number of Wires: 8
• Wire Gauge: 28
• Min Door Thickness: 1-3/4 In.
