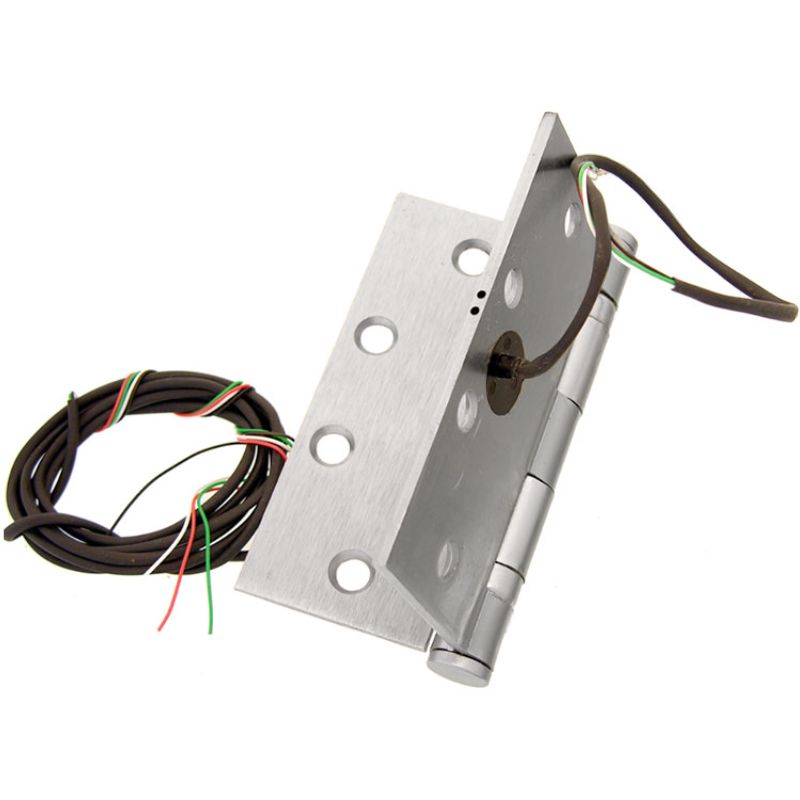

Command Access Technologies ETH8WH4545-626CH-BB79 Energy Transfer Hinge 4-1/2 In x 4-1/2 In

Product Description

The Command Access Technologies ETH8WH4545-626CH-BB79 Energy Transfer Hinge measures four and one-half inches by four and one-half inches. It features a five knuckle standard weight design with an eight-wire construction that includes two twenty-gauge wires and six gauge wires. This hinge effectively transfers low-voltage power from the hinge jamb to the lockset, concealing all wires for a clean installation.

• Energy transfer hinge
• Five knuckle standard weight design
• Construction with eight wires

Product Highlights

Utilize this robust energy transfer hinge for smooth operation in commercial settings, ensuring power delivery without visible wiring.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: ETH8WH4545-626CH-BB79

Technical Specifications

• Installation: Commercial
• Hinge Type: Hinge, Full Mortise
• Knuckles: 5
• Bearing Type: Plain Bearing
• Pin Type: Non-Removable
• Tip Style: Standard
• Weight: Standard Weight
• Power Transfer: 8-Wire (2 x 20GA, 6 x Gauge)
• Product Type: Electrified Hinge
• Base Material: Steel
