Command Access Technologies ETH6W4545-626CH-BB79 Energy Transfer Hinge 6-Wire

Product Description

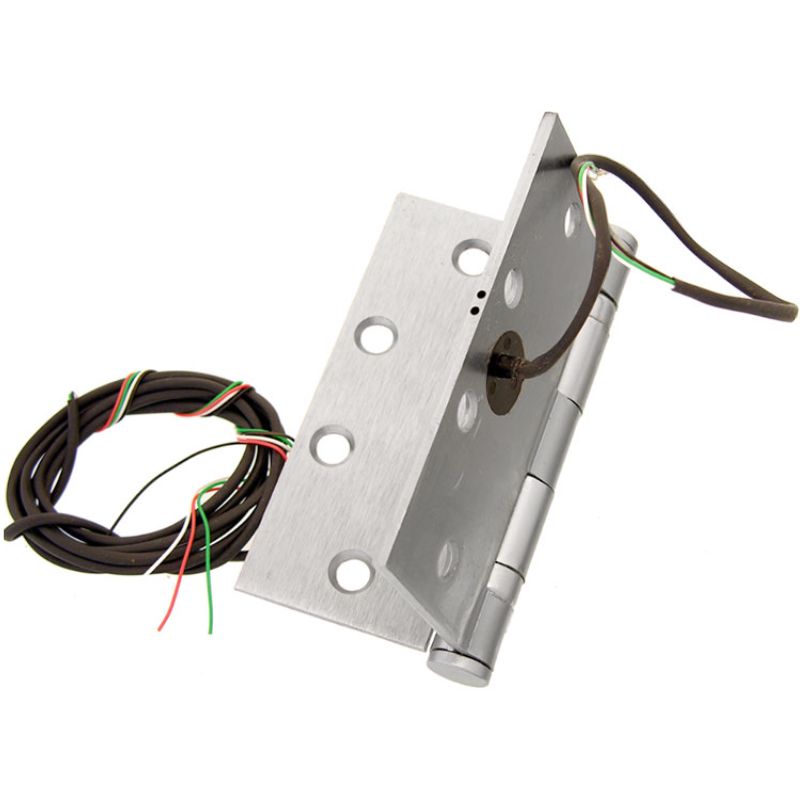

The Command Access Technologies ETH6W4545-626CH-BB79 Energy Transfer Hinge is designed for seamless low-voltage power transfer from the hinge jamb to the lockset, eliminating visible wiring. This hinge is made of durable steel and features a six-wire configuration with a standard weight suitable for various door types. The size of four and one-half inches makes it versatile for both electric mortise and cylindrical locks.

• 5 Knuckle Standard Weight hinge
• Transfers low-voltage power without visible wires
• 4-1/2 inch size compatible with various door applications

Product Highlights

This energy transfer hinge is ideal for commercial installations where reliable power transfer is essential.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• Installation: Commercial

Technical Specifications

• MPN: ETH6W4545-626CH-BB79
• Base Material: Steel
• Hinge Type: Full Mortise Hinge
• Knuckles: 5
• Pin Type: Non-Removable
• Power Transfer: 6-26 gauge
• Amp Draw: 1.0 Amps @24VDC Continuous
• Electrical Rating: 50-100 mA, 30VDC
