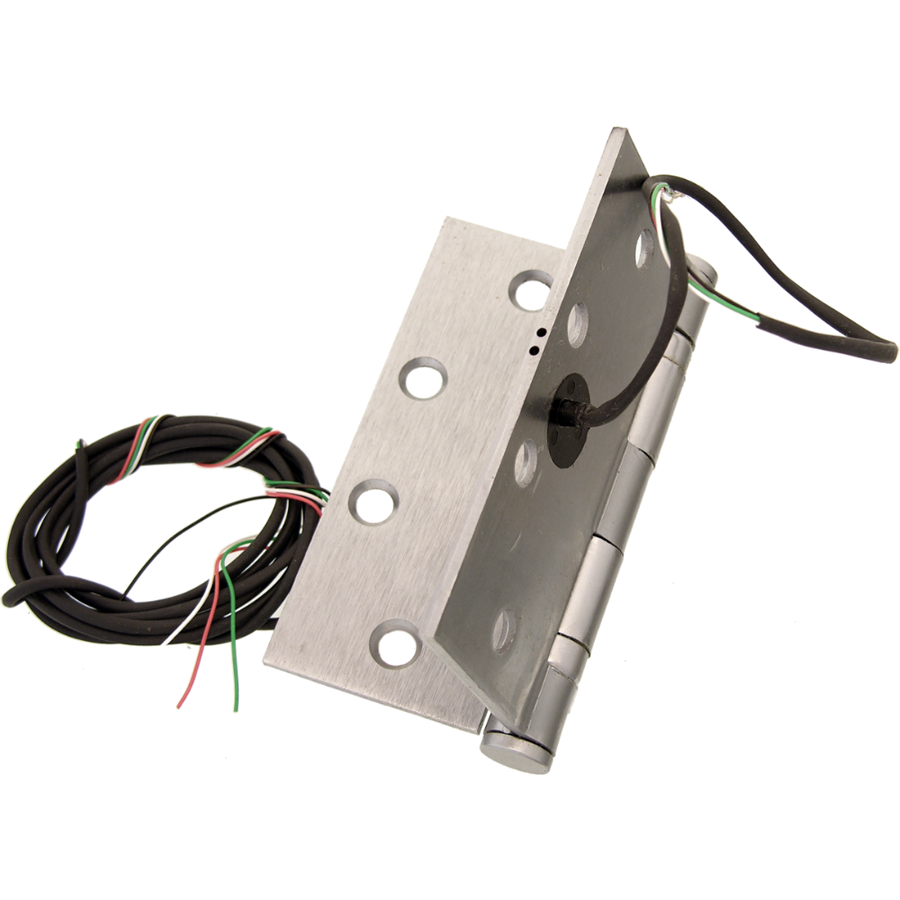

Command Access Technologies ETH4W5045-626CH-BB79 Energy Transfer Hinge 4-Wire

Product Description

The Command Access Technologies ETH4W5045-626CH-BB79 Energy Transfer Hinge allows for reliable low-voltage power transfer from the hinge jamb to the lockset without exposing any wires. This product is designed for use with electric mortise and cylindrical locks. The hinge features a five knuckle design, which ensures durability and consistent performance.

• Standard weight construction
• 4-wire capability
• Dimensions measure five inches by four and a half inches

Product Highlights

The hinge facilitates seamless integration with electronic locking mechanisms, ensuring optimal performance in commercial applications.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: ETH4W5045 CH-BB79

Technical Specifications

• Installation: Commercial
• Unit of Measure: Each
• Base Material: Steel
• Hinge Type: Full Mortise Hinge
• Knuckles: 5
• Bearing Type: Plain Bearing
• Pin Type: Non-Removable
• Tip Style: Standard
• Weight: Standard Weight
• Power Transfer: 4-26 gauge
• Product Type: Electrified Hinges
• Amp Draw: 1.0 Amps @24VDC Continuous
• Contact Rating: In-rush Current N/C and N/O 0.5 A max
• Corner Type: Square
• Duty Weight/Class: Standard Duty
• Electrical Rating: Electrical Switch Rating 50-100 mA, 30VDC
• Function: Energy Transfer
• Hardware Finish: Satin Chrome Plated 626/US26D
• Height: 5.0 In.
• Width: 4-1/2 In.
• Mounting Location: Center hinge on door
• Warranty: 3 Years
